How to Decide Whether Paper-Faced Insulation Fits Your Assembly

Kraft paper faced insulation combines cavity insulation with an attached vapor-control and fastening layer. That can be useful, but it also changes how a wall, ceiling, floor, or roof cavity can dry. The right choice therefore depends on more than whether a batt fits between the framing.

This guide provides an introductory selection framework, not a product approval or assembly design. The available sources do not include current manufacturer installation manuals, adopted code provisions, product-specific fire data, or hygrothermal analysis for a particular building. Before purchasing, identify the climate, every material on both sides of the cavity, the required thermal value, the actual cavity dimensions, and the required protective finish. Resolve the final design through current documentation for the exact product and the requirements used by the local authority.

What kraft paper faced insulation is—and what the facing actually does

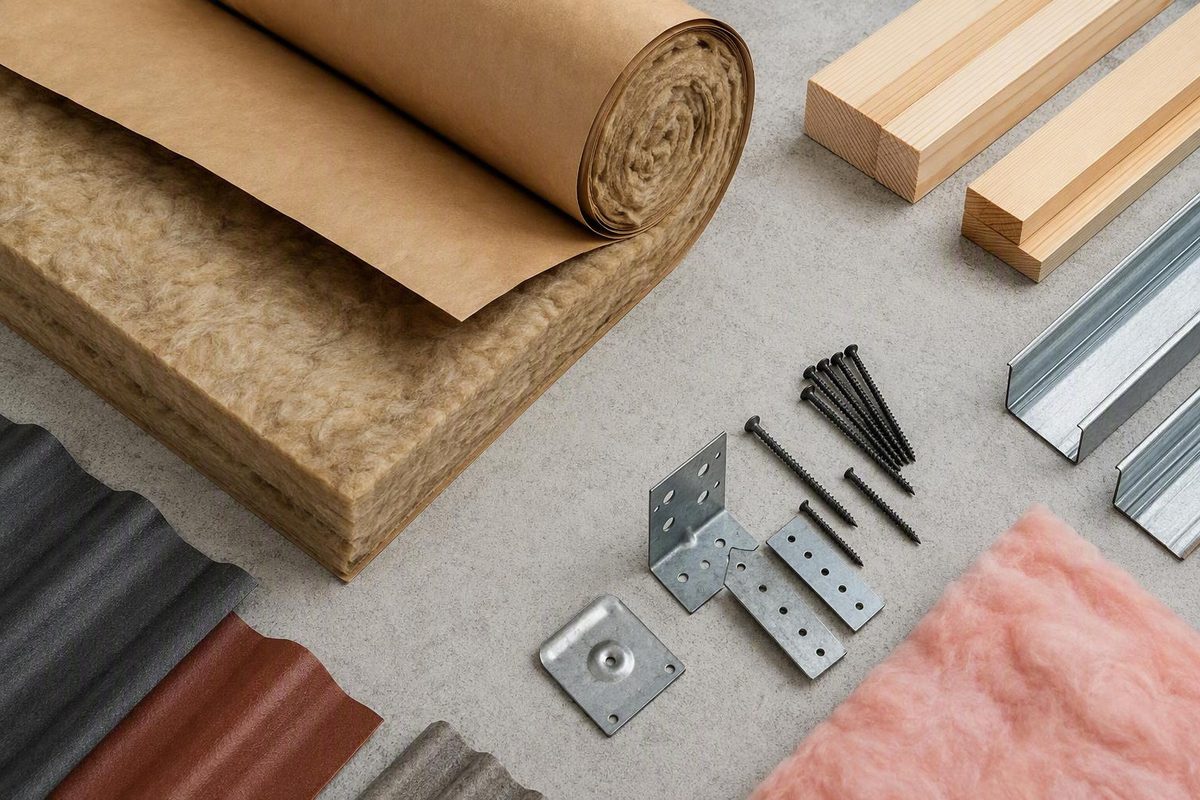

A package labeled kraft-faced insulation commonly contains fiberglass batts or a fiberglass roll with kraft paper attached to one side. Supplier descriptions identify some products as using asphalt-backed kraft paper, but that construction should not be assumed for every product. Confirm the facing material in the current datasheet for the exact product being considered. One supplier describes kraft facing as an asphalt-backed layer that helps stabilize the insulation for handling and limits moisture migration through the product in its kraft-faced insulation overview.

The insulation and its facing perform different functions:

• Fiberglass insulation limits heat flow through the insulated cavity.
• Kraft facing slows water-vapor diffusion through the product.
• Facing flanges may provide a fastening surface where the product instructions permit stapling.
• The attached paper can help hold the batt or roll together during handling and installation.

Those functions should not be condensed into a claim that the paper “moisture-proofs” the assembly. Kraft facing addresses only part of the vapor-diffusion component.

Vapor retarder is the more useful term

Retailers and installers sometimes call kraft facing a vapor barrier, but that wording can suggest that no water vapor passes through it. Typical kraft facing is more accurately described as a vapor retarder: it restricts vapor diffusion without necessarily stopping it.

One commercial guide reports approximately 1 perm for common kraft facing and describes it as a Class II vapor retarder. That figure is useful only as a general description; it is not a specification for every kraft-faced product. Permeance can vary by facing construction, product, test method, humidity, and other test conditions according to the guide’s faced-versus-unfaced comparison.

The distinction matters when kraft paper is combined with polyethylene, foil, sheet metal, rigid foam, coated sheathing, or vapor-resistant interior finishes. When vapor-resistant materials occur on both sides of a cavity, the cavity may have limited ability to dry after a leak or after construction moisture enters it.

What the facing does not do

Kraft facing is not a substitute for:

• A deliberately designed, continuous air-control layer
• Sealing around electrical, plumbing, and mechanical penetrations
• Flashing, drainage, and roof or wall leak repairs
• A water-resistive layer behind exterior cladding
• Ground-moisture control in a crawl space
• Foundation-water management
• Assembly-specific condensation analysis

Air can carry moisture through gaps around plates, boxes, pipes, ducts, sheathing joints, and transitions between materials. A paper-faced batt does not automatically close those paths, particularly where the facing is cut, torn, interrupted, or terminated at framing.

The facing also should not be credited by itself with preventing mold, eliminating condensation, creating a meaningful thermal break, or guaranteeing lower energy use. Those outcomes depend on the complete enclosure, indoor and outdoor conditions, air leakage, water management, ventilation, thermal bridges, and installation quality.

Kraft-faced versus unfaced insulation

Unfaced insulation contains the insulating material without an attached kraft, foil, or plastic layer. It is commonly friction-fitted into cavities or retained with an appropriate support system. Kraft-faced batts commonly include flanges that may be fastened to framing when permitted by the product instructions.

Neither format is automatically better. The relevant questions are whether the assembly needs vapor resistance at the proposed facing location and whether that facing supports or limits the intended drying path.

When the facing adds value

Kraft facing can add value where the assembly calls for vapor control at that location and where its flanges provide a permitted fastening method. A conventional wood-framed exterior wall in a heating-dominated climate is a common comparison, but even there the decision depends on the exterior sheathing, continuous insulation, interior finish, climate, and exact product instructions.

Existing polyethylene, foil-faced foam, sheet metal, vapor-resistant coatings, or another insulation facing may change the choice. Adding kraft facing simply because a cavity is in an exterior wall can create an unnecessary second vapor-resistant plane.

When unfaced insulation is often the better comparison

Unfaced batts are commonly considered for interior partitions because vapor control usually is not the reason for insulating between two conditioned rooms. They may also fit an assembly where:

• A separate layer already provides vapor control.
• More drying potential is desired.
• Insulation is being added over an existing faced attic layer.
• Irregular cavities require extensive cutting and visual inspection.
• The specified support method does not require facing flanges.

Commercial guidance generally identifies unfaced insulation for interior partitions and additional layers over existing faced insulation. It also describes unfaced batts as friction-fitted or retained with suitable supports in this faced-versus-unfaced overview.

When adding insulation over a faced first layer in a conventional attic, an unfaced upper layer is the usual comparison. That avoids automatically introducing another vapor-resistant plane and allows the upper material to cross the framing and joints below. This remains conditional on the roof and ceiling assembly, the condition and orientation of the existing insulation, and local requirements.

Faced products may cost more than comparable unfaced products, but no fixed premium is dependable. Brand, dimensions, package coverage, freight, local supply, and promotions can outweigh the difference attributable to the facing.

Building-science consultant Allison Bailes has observed that unfaced batts can be easier to install to a high standard because the installer can see and correct missing areas, folds, and compression. His examples are observational and do not establish that kraft facing itself causes poor installation in his discussion of fiberglass-batt workmanship.

Which way should the kraft paper face?

The conditional short answer is:

General installation guidance commonly places the kraft facing toward the conditioned, or warm-in-winter, side in heating-dominated construction. That is not a universal orientation rule.

The correct direction for a particular project depends on:

• Climate and seasonal vapor drive
• Expected indoor humidity
• Whether the adjoining spaces are conditioned
• Interior and exterior finishes
• Existing membranes or insulation facings
• Sheathing and continuous-insulation materials
• The location of the intended air-control layer
• Current instructions for the exact product
• Requirements applied by the local authority

A conventional cold-climate wood wall with vapor-open exterior layers is not equivalent to a hot-humid wall, an air-conditioned coastal building, a steel-sided shop, or a retrofit cavity bounded by existing foil and new rigid foam.

Why the familiar rule is incomplete

“Paper faces the heated side” reflects heating-season conditions in which the interior is usually warmer than the exterior. It can be a useful starting point for conventional cold-climate construction, but it does not describe year-round vapor movement in every climate.

In cooling-dominated conditions, vapor drive may be inward. Polyethylene, foil-backed finishes, rigid foam, metal cladding, and vapor-resistant coatings can dominate drying behavior regardless of which direction the kraft paper faces.

The opposite statement—“direction never matters”—is also too broad. Facing position may be governed by product instructions, the finish system, the complete assembly design, or local inspection requirements.

The building-science counterpoint

Bailes argues that vapor diffusion through kraft paper is often less consequential than moisture carried by air leakage. He also discusses the variable permeance of asphalt-saturated kraft paper, which becomes more vapor-open as relative humidity rises. That characteristic may provide more drying capacity under damp conditions than a consistently low-permeance sheet such as polyethylene.

This is an expert interpretation rather than universal code or product guidance. Bailes also recognizes the authority of the building inspector, and the argument does not settle every severe-cold, high-humidity, cooling-dominated, or unusual retrofit condition in his analysis of kraft-facing direction.

The practical conclusion is not that orientation is irrelevant. It is that facing direction cannot compensate for uncontrolled air leakage or a poorly arranged set of enclosure layers.

Inventory the layers before installing

Write down the assembly from inside to outside, including layers that appear thin or incidental:

1. Interior paint, wallpaper, paneling, drywall, plaster, or plywood
2. Polyethylene or another membrane
3. Existing insulation and its facing
4. New cavity insulation and framing
5. Structural sheathing
6. Rigid foam, including whether it is foil-faced
7. Building wrap or another water-resistive layer
8. Drainage space
9. Exterior cladding, especially sheet metal
10. Interior and exterior air spaces

Mark which layer is intended to control air, vapor, bulk water, and heat. Do not assume that one material performs all four functions.

If vapor-resistant materials appear on both sides of the cavity, stop before adding another facing. Obtain current product instructions and have the layer arrangement reviewed by the local authority or an appropriate building professional. Hot-humid, mixed-humid, metal-building, refrigerated, high-humidity, and moisture-damaged retrofit assemblies should not be settled with a generic orientation rule.

Where kraft-faced insulation may—and may not—fit

Retailer categories market faced insulation for several framed applications, but a product filter or seller description is not proof that a particular product is approved for every assembly in that category. “Exterior wall,” for example, can refer to walls with very different climates, sheathing, cladding, framing, and indoor humidity.

Use an assembly-first comparison:

Exterior walls and partitions

In a conventional wood-framed exterior wall in a heating-dominated climate, kraft-faced batts are a commonly marketed option. Suitability still depends on the remaining wall layers, the exact product’s approved applications, and the requirements applied to the project.

For a partition between conditioned rooms, unfaced insulation is usually the more direct comparison. It fills the cavity without adding a vapor retarder that the partition may not need.

Attics and ceilings

Distinguish between a first layer and an additional layer. A first layer between ceiling joists may be faced where the ceiling assembly calls for a vapor retarder at that location. An upper layer installed across existing insulation is generally unfaced.

The upper layer can cross the joists and cover joints in the material below. Before adding it, inspect the existing insulation, ventilation path, wiring, access routes, and heat-producing components. An unusual roof or ceiling design may require a different approach.

Floors, basements, crawl spaces, and roof assemblies

These locations should not be decided by a simple instruction to put the paper toward the living space. Ground moisture, foundation wetting, roof-deck temperature, ventilation, exterior insulation, air-conditioning use, and indoor humidity can materially change the correct design.

If a basement, crawl space, roof, or floor assembly has active water intrusion, correct the source before adding fiberglass insulation. A paper-faced batt does not repair a leaking roof, wet foundation, plumbing failure, or inadequate drainage system.

Metal buildings need separate treatment

Sheet metal is highly resistant to vapor movement, while steel framing creates significant thermal bridges through cavity insulation. A generic recommendation for kraft-faced batts therefore does not establish moisture safety or whole-assembly thermal performance.

Identify the exterior metal, membranes, rigid insulation, cavity framing, interior finish, expected indoor humidity, and air-control strategy. Do not generalize from a single online example or treat a steel building as an oversized wood-framed wall. A qualified professional may need to assess the full assembly.

How to choose R-value, thickness, width, and format

The correct nominal R-value comes from the applicable local requirement and the intended assembly design. It cannot be selected reliably from a universal statement such as “one R-value fits every nominal 2 × 4 wall” or “another fits every nominal 2 × 6 wall.”

Products marketed for a nominal framing category also may not fit older, irregular, furred, or nonstandard cavities.

Because the evidence available for this guide does not include current manufacturer specifications, it should not be used to choose an exact stock-keeping unit. Technical selection should be based on current manufacturer literature for the product being purchased.

Measure the cavity, not just the framing label

Before selecting a package, record:

• Cavity depth: Measure the clear depth available around bracing, pipes, and other layers.
• Clear cavity width: Measure between framing members rather than relying only on on-center spacing.
• Cavity height or run length: Account for plates, headers, blocking, and interruptions.
• Framing spacing: Confirm whether the layout is regular and whether the product is intended for wood or metal framing.
• Obstructions: Identify wiring, plumbing, ducts, boxes, fire blocking, and structural connectors.
• Net area: Separate regular cavities from narrow or irregular spaces.

Do not buy an oversized batt with the expectation that it can simply be forced into a shallow cavity. Fiberglass should be selected and fitted so it can retain the thickness intended for the installation. The material must fit around obstructions as well as between the framing.

Batts versus rolls

Precut batts are practical where many cavities have similar widths and heights. They can reduce repetitive measuring, although irregular spaces and joints still require accurate cutting.

Rolls can suit long, uninterrupted runs and may reduce the number of end joints. They require more measuring, cutting, and handling. Neither format is inherently superior; layout, access, waste, and the installer’s ability to produce a complete fit matter more than the package format alone.

Retailer categories show that faced fiberglass is sold in both batt and roll formats across multiple nominal R-values and framed-wall sizes. Those listings demonstrate market variety, not technical suitability for a particular cavity as shown in this retailer’s faced-fiberglass category.

Wood and metal framing dimensions

Products intended for wood and metal framing may use different widths because the framing layouts and intended fit can differ. Verify all of the following in current manufacturer literature:

• Actual insulation thickness
• Actual width
• Batt or roll length
• Number of batts per package
• Square-foot coverage
• Intended framing type and spacing
• Permitted fastening or support method
• Approved applications
• Facing construction and orientation
• Required protective finish

Do not infer technical specifications from a product image, abbreviated marketplace title, or retailer filter. If a title, specification table, or coverage calculation conflicts with another part of the listing, obtain the current manufacturer datasheet rather than averaging or guessing between the figures.

Coverage and buying checklist

Ordering by bag count alone is unreliable because packages can contain different batt dimensions, quantities, and total coverage. Calculate the required quantity from manufacturer-confirmed square-foot coverage for the exact product code.

Coverage worksheet

1. Measure each insulated section. Multiply width by height for rectangular walls, or length by width for floors and ceilings.

2. Add the section areas. Keep different cavity depths and framing layouts separate because they may require different products.

3. Subtract openings when appropriate. Large doors and windows may be deducted.

4. Calculate the net insulated area. Hypothetical example: 720 square feet of gross wall area minus 100 square feet of large openings leaves 620 square feet.

5. Add an explicit project allowance. If the measured layout justifies a 50-square-foot allowance for cuts and irregular cavities, the ordering area becomes 670 square feet. This is an illustrative allowance, not a general waste rate.

6. Divide by verified package coverage. If current manufacturer documentation states that the selected package covers 80 square feet, then 670 ÷ 80 = 8.375 packages.

7. Round up to whole packages. The hypothetical order becomes nine packages.

The appropriate allowance depends on the actual framing, number of cuts, product dimensions, and opportunities to reuse offcuts. Keep it visible in the estimate instead of hiding it inside an assumed coverage number.

Do not estimate coverage from the number of visible batts in a photograph. Do not assume that every package with the same R-value covers the same area.

Fields to verify before ordering

Check the exact product code against current manufacturer documentation:

• Insulation material
• Facing type and construction
• Nominal R-value
• Actual thickness
• Actual width
• Batt or roll length
• Batt, roll, or precut format
• Batt count
• Verified package coverage
• Wood- or metal-framing designation
• Approved applications
• Installation instructions
• Permitted fastening and support methods
• Vapor-retarder information
• Fire and flame-exposure information
• Required protective finish
• Product limitations and exclusions

Package price alone is not a meaningful comparison. First confirm that the alternatives meet the same thermal, dimensional, facing, application, and protective-finish requirements. Then compare cost per verified square foot, including delivery and a realistic project allowance.

Price, inventory, ratings, bulk discounts, seller identity, shipping charges, and delivery estimates are time- and location-dependent. Treat them as purchasing information for that moment, not durable technical specifications.

If a retailer or marketplace page contains conflicting R-values, dimensions, coverage figures, availability statements, or application claims, do not choose the most convenient number. Technical selection should wait until the current manufacturer documentation for the exact product is available.

Installation quality: air sealing, full cavity fit, and layering

Even a correctly selected batt can underperform if it is installed over unresolved leaks, left short of cavity edges, compressed behind utilities, or combined with unintended vapor-resistant layers.

This section states general workmanship principles only. It does not provide a product-specific fastening schedule, code-compliant fire detail, or complete installation procedure.

Correct water and contamination problems first

Before installing replacement insulation, repair active roof, plumbing, wall, or foundation leaks and determine why existing insulation is wet, stained, compressed, or contaminated. The general installation guidance used here advises replacing damaged, compressed, or mold-affected insulation and correcting the underlying moisture or roof problem before proceeding in its preparation and safety instructions.

Do not cover questionable material merely to conceal it. Where contamination may require special handling or the extent of damage is uncertain, stop and obtain an appropriate assessment.

Air-seal before filling cavities

Seal accessible penetrations and framing gaps with materials suitable for the location and opening. Common leakage paths include:

• Top and bottom plates
• Plumbing and wiring penetrations
• Open chases
• Gaps around window and door framing
• Sheathing joints and transitions
• Duct and register penetrations
• Attic hatches
• Changes in ceiling height

The intended air-control layer should remain continuous across transitions. Individual kraft-faced batts should not be assumed to create that continuity.

Aim for a full, minimally compressed fit

A good batt installation follows straightforward principles:

1. Fill the entire cavity.
2. Maintain contact with the enclosure surfaces the insulation is intended to touch.
3. Avoid gaps at corners, edges, plates, and blocking.
4. Minimize unnecessary compression.
5. Cut accurately around obstructions.
6. Preserve the product’s intended installed thickness wherever possible.

Around wires, split or cut the insulation so it fits around the cable rather than flattening the entire batt behind it. Make deliberate cuts around pipes, boxes, bracing, and irregular framing instead of stuffing loose pieces into the remaining space.

The goal is not merely to make the cavity look filled from the room side. Kraft paper can hide voids, folded corners, and compression, so inspect the fiberglass fit before fastening or covering the facing.

Preserve designed attic airflow

Where a roof assembly is designed with soffit-to-ridge ventilation, keep the intended route open. The same general installation guide advises preserving that airflow with appropriate venting details, checking recessed lights for a Type-IC rating before allowing insulation contact, and keeping insulation at least 3 inches from metal chimneys, heater flues, and fixtures not rated for insulation contact. That distance is general retailer guidance, not a universal clearance; the appliance or fixture listing, product instructions, and locally applied requirements control the actual detail for these ventilation, fixture, and clearance precautions.

For a conventional two-layer attic installation, the first layer may be faced between joists where that facing is appropriate for the ceiling assembly. The second layer is generally unfaced and may be installed across the first. Do not automatically combine two faced layers.

Follow product-specific fastening instructions

Faced batts may be stapled, and some products or applications may permit another support method. Flange position, face- or inset-stapling, staple type, and fastener spacing cannot be established from this general guide.

Use the instructions for the exact product and coordinate the fastening method with the wall or ceiling finish. If those instructions are unavailable, do not invent a universal staple pattern.

Cavity R-value is not whole-assembly R-value

The labeled R-value describes the insulation under specified conditions; it does not by itself describe the complete wall, floor, or roof.

Steel framing is a particularly important thermal bridge. A batt carrying a nominal R-value does not give a steel-framed wall that same whole-wall R-value. Whole-assembly performance depends on framing geometry, spacing, connections, continuous insulation, and the other materials in the enclosure.

Fire safety, protective equipment, and final verification

Do not assume that kraft paper may remain exposed or that painting it creates an approved finish. A general installation guide identifies paper facing as flammable and directs installers to conceal it behind an appropriate finish such as drywall. The exact insulation documentation, finish-system information, and locally applied requirements must establish what covering is acceptable for the project.

The same guide lists gloves, eye protection, a dust mask, and suitable head protection among the basic equipment for insulation work. Select protective equipment for the product, work area, overhead hazards, and other site conditions rather than treating that list as a complete job-specific safety plan.

Identify heat-producing components

Before placing insulation, locate:

• Chimneys and heater flues
• Recessed lighting
• Exhaust ducts
• Transformers and electrical equipment
• Fan motors
• Appliances and other heat-producing fixtures
• Required service and access zones

Do not allow insulation to contact a recessed light unless the fixture’s marking or documentation confirms that it is listed for insulation contact. Do not infer the rating from appearance or from similar fixtures elsewhere.

Clearances around chimneys, flues, appliances, electrical equipment, and other heat sources are not interchangeable. Verify each condition through the component listing or instructions, the insulation documentation, and the requirements applicable to the project.

Final verification checklist

Before purchasing or closing the assembly, confirm:

• [ ] The exact product code matches the intended R-value, thickness, width, length, and coverage.
• [ ] Current manufacturer literature approves the product for the proposed application.
• [ ] Every interior and exterior assembly layer has been identified.
• [ ] The facing direction agrees with the assembly design, product instructions, and local requirements.
• [ ] No unintended second vapor-resistant plane has been introduced.
• [ ] Bulk-water and active moisture problems have been corrected.
• [ ] The intended air-control layer has been sealed and inspected as required.
• [ ] Batts will fill the cavities without avoidable gaps, folds, or compression.
• [ ] Required attic or roof ventilation paths will remain open.
• [ ] Chimneys, flues, lights, appliances, and other heat sources have been identified.
• [ ] Fixture ratings and required clearances have been verified from the controlling documentation.
• [ ] Kraft facing will receive the protective finish required for the exact product and assembly.
• [ ] Required inspection stages have been confirmed before work is covered.

Frequently asked questions

Is kraft paper faced insulation a vapor barrier or a vapor retarder?

Typical kraft facing is better described as a vapor retarder. It slows water-vapor diffusion but is not necessarily impermeable. Sellers may use “vapor barrier” informally, so rely on the tested permeance and classification in the exact product’s current documentation rather than retailer terminology.

Do not assume that a permeance value reported for one kraft-faced product applies to every facing, humidity level, or test condition.

Which direction should kraft paper facing point?

General heating-climate guidance commonly places the paper toward the conditioned or warm-in-winter side. The correct direction still depends on climate, indoor humidity, every other layer in the assembly, the exact product instructions, and local requirements.

A hot-humid wall, mixed-climate retrofit, steel-sided building, or assembly containing foil, polyethylene, rigid foam, or another facing cannot be resolved from the heating-climate rule alone.

Can kraft-faced insulation be left exposed or painted?

Do not assume that exposed or painted kraft paper is acceptable. General installation guidance identifies paper facing as flammable and calls for it to be concealed behind an appropriate finish, but the exact product and assembly documentation must establish the required covering.

Painting the paper does not, by itself, demonstrate that it is an approved exposed finish or that the completed wall or ceiling has a required fire rating.

Can I install unfaced insulation over existing kraft-faced insulation?

An unfaced upper layer is the usual comparison when adding insulation over an existing faced attic layer. It avoids automatically creating another vapor-resistant plane and can cross the first layer to cover joints and some framing.

First inspect the existing insulation and identify which way its facing points. Correct leaks, contamination, compression, blocked ventilation, unsafe wiring, and unresolved heat-source conditions before adding material. Unusual roof and ceiling assemblies may require a different design.

Does kraft facing replace air sealing?

No. Kraft facing slows vapor diffusion through part of the insulated cavity; air sealing controls air movement through gaps, cracks, joints, and penetrations.

Seal the intended air-control layer before installing the batts. Pay particular attention to plates, utility penetrations, chases, attic hatches, and enclosure transitions. A series of paper-faced batts is not automatically a continuous air barrier.

Use this five-step sequence to make the final decision:

1. Inventory every layer from the interior finish to the exterior cladding.
2. Confirm the locally required thermal value and vapor-control approach.
3. Match verified product thickness and width to the measured cavity.
4. Plan air sealing and a complete, minimally compressed installation.
5. Verify the protective finish, heat-source conditions, and exact manufacturer instructions before purchasing.

Kraft facing can provide useful vapor resistance and fastening flanges, but it is not a universal moisture solution. It cannot replace bulk-water control, air sealing, full cavity fit, or assembly-specific verification.

Mortar Desk publishes general reference information, not individual contracting or engineering advice. Specifications change, codes are local, and project requirements should be checked against the documentation and rules used by the local authority as explained in Mortar Desk’s scope statement.
