How to Choose the Right Factory-Cast Foundation for a Deck

Precast deck footings can remove onsite concrete mixing and curing from a deck project, but precast is a manufacturing method—not a single foundation design. The category includes small blocks placed at grade, wider surface pads, heavy piers installed in excavations, and concrete posts with integrated steel brackets. These products are not structurally interchangeable.

Choosing among them starts with the deck and site rather than the product label. Attachment to a building, deck elevation, framing layout, design loads, soil bearing, drainage, frost depth, access, connections, documentation, inspections, and local acceptance all matter. A factory-cured unit may simplify one construction stage, but it does not replace foundation design or approval by the local authority having jurisdiction.

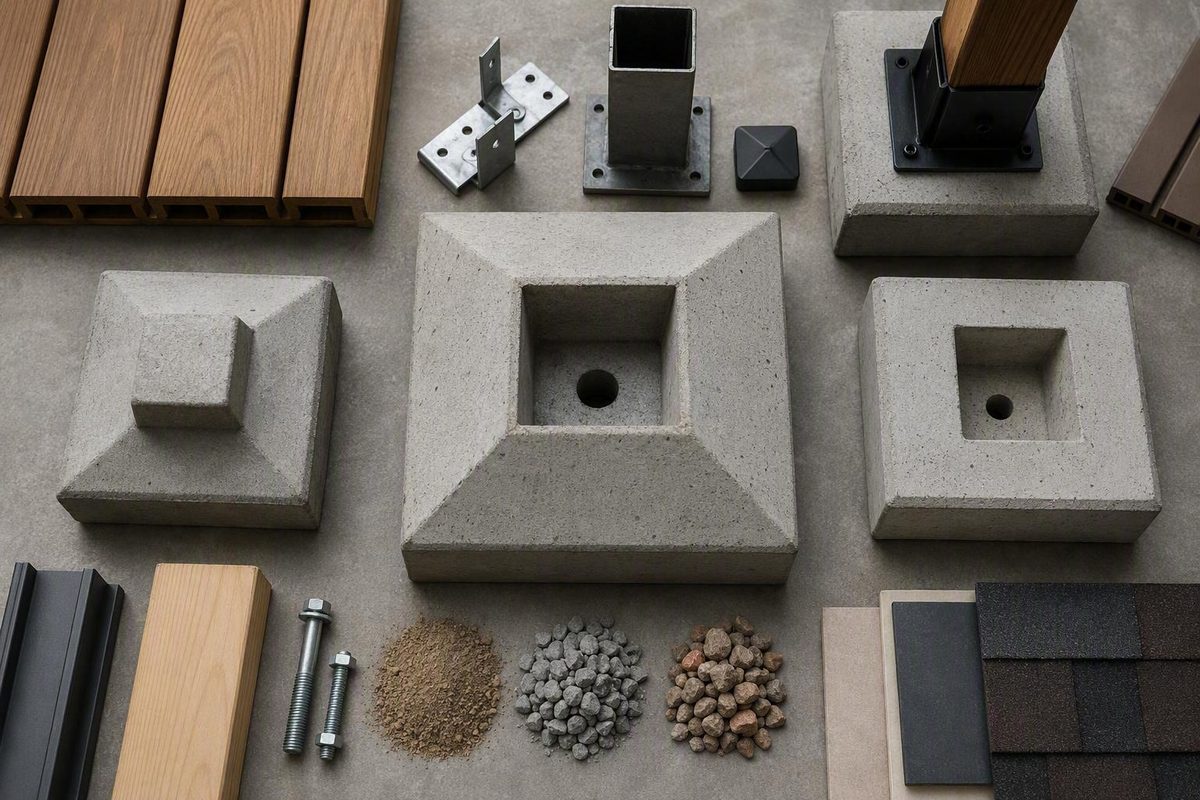

What Counts as a Precast Deck Footing?

A deck footing is the foundation element that transfers deck loads to the ground. By providing a bearing area wider than the post alone, it distributes load over more soil and helps limit settling and environmental movement.

Precast means that a concrete component was cast and cured before reaching the jobsite. The term does not establish the component’s shape, dimensions, installation depth, capacity, connection method, or approved use.

That distinction matters because retailers and manufacturers use block, pad, pier, post, and footing inconsistently.

A surface deck block is usually a relatively small support with slots or bearing surfaces for framing or posts. It may be useful for certain low, freestanding decks, but it should not be treated as equivalent to an engineered buried foundation.

A surface footing pad provides a wider bearing surface and may be made from concrete, composite, or another material. Its diameter or width alone does not establish the load it may carry. The pad, supported component, soil, and connection must be evaluated together.

A direct-burial precast footing is a full-size concrete unit placed in an excavation. Its enlarged base bears on suitable soil, while its upper section receives compatible post-bracket hardware. Functionally, it is closer to a poured pier-and-footing assembly than to a small deck block.

A bracketed precast post combines a concrete column with a steel connection intended to keep supported wood above the soil. Some disclosed systems tie the bracket directly to reinforcement running through the concrete component.

Market terminology varies even within one retail category. A Maine retailer groups small four-way deck blocks, round concrete pads, a composite pad, and a concrete pier with footing under “precast concrete decking products.” That assortment demonstrates the vocabulary problem; it does not establish equivalent performance or approved uses. See the retailer’s deck-support assortment.

The practical rule is simple: a product name is not a structural specification. Before comparing precast deck footings, determine whether each candidate is a surface block, surface pad, buried pier, or integrated post system.

Where Precast Supports May—and May Not—Fit

Whether a precast support may fit a deck depends on two groups of variables.

Deck variables include:

• Attached versus freestanding construction
• Height above grade
• Total deck area
• Beam, joist, and post layout
• Tributary area carried by each support
• Applicable dead, live, snow, and other gravity loads
• Uplift forces
• Lateral forces
• How loads pass into the house, stairs, guards, and foundation system

Site variables include:

• Allowable soil bearing
• Undisturbed soil versus uncontrolled fill
• Ground slope
• Surface and subsurface drainage
• Groundwater
• Frost susceptibility and prescribed frost depth
• Bedrock depth
• Access for excavation, delivery, and placement equipment

Attached, elevated, or heavily loaded decks commonly call for documented deep foundations rather than small surface blocks. That is a screening principle, not a universal code verdict. The adopted code, local amendments, structural design, product documentation, permit policy, and building official still control.

Firm, level, well-drained ground may be more compatible with an approved surface-support system than sloping, wet, filled, frost-affected, or unstable soil. Even on favorable ground, the support must be permitted for the deck configuration and backed by adequate load and installation documentation.

A Decks.com instructional guide attributes a narrow exception to the 2021 International Residential Code. According to that summary, certain freestanding decks no larger than 200 square feet may use joists bearing directly on precast concrete pier blocks at grade when there are no beams or posts and the walking surface is no more than 20 inches above grade at any point within 36 horizontal inches of an edge. Review the guide’s stated low-deck conditions.

That is a third-party summary, not reproduced official code text. The evidence available here does not establish that the summary contains every condition in the model-code provision. It therefore should not be used as a complete compliance checklist. The officially adopted local code, amendments, permit policies, and building official determine whether an exception applies.

Do not merge that reported deck-block provision with a separate frost-depth exception summarized for some detached structures under 400 square feet. They concern different conditions and must be checked independently against the code adopted by the jurisdiction. A building department may require frost-depth foundations even where a general guide suggests an exception could apply. See the separate third-party discussion of footing-depth exceptions.

Three scenarios illustrate why the product category alone cannot answer the suitability question:

1. Low freestanding deck: A small, low deck might qualify for locally approved blocks if its area, height, framing arrangement, soil, and adopted rules satisfy every applicable condition. The blocks are not acceptable merely because the deck is described as “floating.”
2. Attached elevated deck: A deck connected to a house is more likely to need a documented deep-foundation system with verified gravity, uplift, lateral, and connection performance. A buried precast system may be considered, but only with suitable design information and local acceptance.
3. Difficult site: A deck on a slope, uncontrolled fill, wet ground, shallow bedrock, high groundwater, or unstable soil requires qualified review. Choosing a larger-looking block or excavating deeper without a documented design is not an adequate response.

These are screening examples, not suitability determinations for a particular project. Confirm the locally accepted foundation type before selecting or ordering a product.

Frost Depth, Soil Bearing, and the Forces a Footing Must Resist

Frost heave occurs when moisture in frost-susceptible soil freezes and contributes to upward ground movement. A shallow foundation may be lifted, shifted, or tilted, potentially moving the deck and stressing its connections to the house, stairs, framing, and guards.

Buried deck foundations therefore commonly need to bear below the locally prescribed frost depth unless a locally accepted exception or alternative design applies. “Below frost depth” generally concerns the bottom bearing elevation—not the nominal product length or the portion visible above grade.

State maps and climate-zone ranges are preliminary references only. Required depth may vary by city, county, elevation, soil, bedrock, adopted code edition, and local amendment. A general 12-inch minimum sometimes cited for foundations does not override a deeper frost-depth requirement, structural drawing, geotechnical requirement, or local rule. The reliable starting point is the city or county building department. A third-party frost-depth reference explains the need for local verification.

The two catalog heights discussed later in this article—48 inches and 54 inches—do not automatically extend below the frost line everywhere. The relevant comparison is between the approved installed bearing elevation and the locally prescribed depth, not the product’s overall catalog height in isolation.

Bearing area is only one part of capacity

At a conceptual level, required bearing area relates to the load delivered to a footing and the allowable pressure of the supporting soil:

Higher tributary load or lower allowable soil pressure generally requires more effective bearing area, a different foundation arrangement, or both.

That relationship is not a universal sizing formula. The load assigned to each support depends on the framing plan, spans, beam reactions, post locations, applicable design loads, and load combinations. Soil capacity must also be established under the rules used for the project.

The complete gravity-load path is:

1. Decking and framing transfer load to joists and beams.
2. Beams transfer reactions to posts.
3. Posts transfer load through brackets, bolts, or other connectors.
4. Connectors transfer load into the precast unit.
5. The footing base distributes load to competent bearing soil.

Every link must be adequate. A large concrete base cannot compensate for an underrated connector, poor bearing soil, unsupported fill, or a framing arrangement that delivers more load than expected.

Gravity is not the only action that matters. A foundation assembly may also need to resist:

• Uplift
• Lateral movement
• Sliding
• Overturning
• Differential settlement
• Connection withdrawal or shear
• Movement caused by frost or poor drainage

Concrete compressive strength describes a material property. A manufacturer-listed top-load value describes another limited aspect of performance under the manufacturer’s stated—or sometimes unstated—conditions. Neither figure alone establishes an allowable project load for the complete post, bracket, footing, and soil assembly.

Ask the building department for the prescribed frost depth and acceptable foundation types. When significant structural loads, unusual geometry, poor soil, slopes, groundwater, fill, or other difficult conditions are involved, obtain a design from an appropriately qualified professional.

Precast Versus Poured Footings, Helical Piers, Buried Posts, and Deck Blocks

Precast changes where and when the concrete is made. It does not remove the other work required to create a foundation.

Poured concrete offers field-forming flexibility. A designer can specify different footing shapes and dimensions, but that does not mean builders should improvise them. Size, depth, reinforcement, concrete, and connections still follow the approved design and site conditions.

A full-size precast footing arrives cured. Once it has been placed, connected, and accepted at any required inspection stage, framing can proceed without waiting for newly poured concrete to cure. The scheduling advantage is narrower and more precise than simply calling the system “faster.”

Precast does not eliminate:

• Surveying or layout
• Utility locating
• Excavation
• Base preparation
• Delivery coordination
• Lifting and controlled placement
• Leveling and alignment
• Connector installation
• Inspection
• Backfilling
• Field review when soil or excavation conditions differ from the design assumptions

Helical piers use a different installation principle. Screw-like piles are mechanically advanced into the ground toward suitable supporting soil, with capacity and termination governed by the approved system. Without comparable project data, there is no sound basis for declaring helical piers stronger, weaker, cheaper, or more expensive than precast or poured alternatives.

Buried-post construction places wood below grade, sometimes surrounded by concrete. Bracketed precast systems instead aim to keep the supported wood above soil. That reduces direct wood-to-soil and standing-water exposure, but it does not establish the structural capacity or service life of the complete assembly.

Surface blocks deserve their own category. They may suit a narrowly permitted low-deck application, but they are not substitutes for buried structural foundations merely because both products are factory-cast concrete.

The practical advantage of full-size precast is schedule predictability around concrete curing. The tradeoff is that onsite concrete production and curing have been exchanged for factory availability, freight, access, lifting, positioning, and fixed product dimensions.

How to Read Product Specifications Without Overstating Capacity

Product pages are useful for identifying dimensions, materials, connection features, and handling weight. They are not substitutes for allowable-load tables, engineering details, evaluation reports, installation manuals, or local approval.

The following examples show how differently manufacturers describe precast deck-support products. They are not rankings or recommendations.

The EZ-PIER insert notation is preserved as the manufacturer presents it because the supplied page does not clarify the notation sufficiently to interpret “13” as an insert length or thread specification. Obtain the current drawing or manual before selecting lifting hardware or relying on that detail.

J&R also publishes a simplified “position, dig, set, level, and backfill” sequence and identifies the insert as the attachment point for post-bracket hardware. Those statements are product information, not a complete installation or engineering manual.

EZ-PIER’s 115,000-pound figure must remain exactly what the page calls it: a manufacturer-listed top load. The available product page does not establish whether it is an ultimate, tested, nominal, or allowable design value. It also does not provide the soil, settlement, connector, uplift, lateral, or jurisdictional information required to size a deck foundation.

Perma-Column describes its bracket as welded to reinforcement running through the column and markets the deck-post line as ICC-ES certified. The available page does not identify the evaluation report or reproduce its conditions of use. Obtain the current report before relying on that claim for design or permitting.

Four numbers that should not be confused

• Concrete compressive strength is a material property, commonly expressed in pounds per square inch. It does not equal footing capacity.
• Manufacturer-listed top load is a published product figure. Its design meaning depends on the test basis, failure mode, safety provisions, and stated limitations.
• Break-test or ultimate value describes a test result or failure threshold under particular conditions. It is not automatically an allowable load.
• Allowable design capacity is the load permitted for design after applying the relevant methodology, limits, conditions, and load combinations.

Do not assign your own safety factor or convert a material-strength, top-load, or break-test number into an allowable deck load.

Before buying, request one complete documentation package containing:

• Current installation manual
• Dimensioned product drawings
• Allowable gravity-load tables
• Uplift ratings
• Lateral or shear ratings
• Soil-bearing assumptions
• Connector and fastener specifications
• Compatible post sizes
• Current evaluation report and conditions of use
• Required engineering details
• Exposure and corrosion limitations
• Frost, groundwater, slope, and drainage restrictions
• Inspection requirements
• Rules for field adjustment or substitution
• Handling and lifting instructions

Retailer dimensions, prices, stock status, and category labels can help identify a product. They cannot establish structural suitability.

Installation Workflow and Heavy-Unit Logistics

Factory curing shortens one part of the schedule, but a buried precast foundation still requires coordinated planning. A sensible, non-prescriptive sequence is:

1. Confirm the approved design and permit path. Identify the selected foundation class, product, layout, depth, connections, and supporting documents.
2. Identify inspections. Determine whether excavations, bearing surfaces, installed units, connectors, or identifying marks must remain visible.
3. Locate utilities. In the United States, contact 811 before excavation and determine whether private utilities—such as owner-installed electrical lines, irrigation, propane, or drainage services—require a separate locator. Decks.com notes both 811 and the possible exclusion of private utilities.
4. Lay out footing positions. Follow the approved framing and foundation plan rather than changing spacing to fit product availability.
5. Excavate to approved depth and bearing material. Stop if the excavation exposes loose fill, water, unexpected rock, unsuitable soil, or another condition inconsistent with the design.
6. Prepare the specified base. Base material, thickness, drainage, leveling, and compaction must come from approved instructions or drawings.
7. Arrange delivery and handling. Confirm unit weight, delivery method, access route, placement reach, clearances, and responsibility for unloading.
8. Place and level the units. Follow the manufacturer’s lifting, orientation, tolerance, and leveling requirements.
9. Install compatible connectors. Use the specified bracket, bolts, fasteners, post size, and corrosion-protection system.
10. Obtain required inspection. Do not conceal work that the building department must see.
11. Backfill as directed. Use the approved material and method without moving or damaging the unit.
12. Begin framing when approved. The absence of an onsite concrete cure wait does not remove inspection or sequencing requirements.

J&R’s published sequence—position, dig, set, level, and backfill—is a concise product example, not a universal installation manual. Its listed unit weighs 625 pounds, making delivery, lifting, controlled placement, and worker safety central planning issues. Review J&R’s dimensions, weight, and basic sequence.

The EZ-PIER listing gives a typical unit weight of approximately 750 pounds. That similarly requires deliberate planning rather than assumptions about hand carrying or casually lowering the footing into an excavation. Review EZ-PIER’s listed weight and lifting point.

The available evidence does not support prescribing a particular crane, excavator, rigging arrangement, crew size, or manual-handling technique. Those requirements must come from the supplier, approved instructions, equipment limitations, site plan, and responsible contractor.

For a constrained site, ask:

• Can the delivery vehicle reach the property?
• Can suitable placement equipment reach every footing location?
• Are gates, landscaping, retaining walls, septic components, or soft ground in the route?
• Is there adequate overhead clearance from trees, roofs, and utility lines?
• Is there enough side clearance for controlled placement?
• Will the excavations remain accessible after all holes are opened?
• Is there a stable unloading and staging area?
• Can required inspections occur before backfilling or framing blocks access?

Over-excavation, loose fill, standing water, slopes, shallow bedrock, high groundwater, and poor drainage can change the required foundation approach. Do not improvise a thicker gravel layer, field-cut the unit, pour an unplanned cap, or bury the footing at a different elevation based only on a generic guide.

Base material, drainage layers, backfill, compaction, inspection visibility, and allowable field adjustments should come from approved product instructions and local requirements. “Immediate framing” means there is no wait for newly placed concrete to cure; it does not mean the entire foundation process is immediate.

Connections, Wood Clearance, and the Complete Load Path

A stable deck foundation depends on the footing, bracket, fasteners, post, and framing acting as one documented system. Reviewing only the concrete unit leaves critical load-path questions unanswered.

Two connection approaches appear in the disclosed products:

• A precast footing may contain a threaded insert that receives specified post-bracket hardware.
• A precast post may include an integrated U-shaped steel bracket tied to reinforcement within the concrete.

Those examples should not be generalized to every product. Inserts differ in diameter, embedment, thread type, hardware compatibility, edge distance, and allowable loads. Integrated brackets differ in post size, steel properties, weld configuration, coating, fasteners, and reinforcement details.

Keeping a wood post above soil and standing water can reduce direct moisture and decay exposure. It may also make the connection easier to inspect than an embedded post. Perma-Column, for example, describes a U-shaped bracket welded to reinforcement running through its concrete column. See the manufacturer’s disclosed bracket arrangement.

Wood clearance does not prove adequate resistance to gravity, uplift, lateral force, sliding, overturning, or settlement. For every proposed assembly, verify:

• Compatible post dimensions
• Exact bracket model
• Bolt and fastener type, diameter, length, quantity, and material
• Required washers, nuts, or proprietary components
• Corrosion compatibility among treated wood, bracket coating, and fasteners
• Concrete and wood edge clearances
• Required installation torque, if applicable
• Bracket orientation and post-end clearance
• Whether field drilling is permitted
• Whether alternate hardware or substitutions are allowed
• Allowable gravity, uplift, and lateral loads for the connection
• Environmental exposure restrictions

Do not infer connector capacity from footing dimensions, concrete strength, reinforcement size, or the bracket’s appearance. A heavy concrete component can still be limited by the insert, bolt, bracket, post fasteners, soil, or framing connection above it.

A useful permit-review question is:

Does the submitted documentation cover the complete footing-and-connector assembly, or only the precast concrete component?

If the documents show a concrete unit but omit the post base, bolts, fasteners, uplift path, lateral path, or soil assumptions, the load path is incomplete. Do not fabricate brackets, weld additions, drill new holes, or substitute hardware unless the approved design expressly permits the change.

A Pre-Purchase Decision and Cost Checklist

Use the following sequence before comparing product prices.

1. Define the deck

Document:

• Attached or freestanding configuration
• Height above grade
• Total area
• Beam and joist layout
• Proposed post and footing locations
• Tributary area at each support
• Applicable design loads
• Gravity, uplift, and lateral demands

The number and spacing of footings must come from the deck’s load path, framing design, and soil capacity—not a generic rule or unexplained calculator result.

2. Confirm local rules

Ask the building department:

• Which code edition and amendments apply?
• What frost depth is prescribed?
• Is a permit required?
• Which foundation types are acceptable for this deck?
• Is a product evaluation report required?
• Are stamped plans required?
• What setbacks or location restrictions apply?
• Which inspection stages must remain visible?
• Does an apparent exception apply to this deck and site?

Obtain these answers before treating any product as permit-ready.

3. Establish site conditions

Identify:

• Competent bearing soil
• Uncontrolled or undocumented fill
• Slope
• Drainage patterns
• Standing water
• Groundwater
• Shallow bedrock
• Frost susceptibility
• Potentially unstable or otherwise difficult soil
• Equipment and delivery access

If excavation conditions differ from the design assumptions, pause and obtain direction rather than modifying the foundation in the field.

4. Obtain the foundation design

The design should identify:

• Foundation type
• Footing positions
• Required bearing area
• Installed depth and elevation
• Applicable loads
• Soil assumptions
• Post and connector arrangement
• Uplift and lateral load path
• Drainage or exposure details
• Inspection stages

Select the product to satisfy the design rather than using a catalog item as the starting point for reverse-engineering one.

5. Verify product documentation

Use the documentation checklist in the product-specification section. At minimum, require allowable gravity, uplift, and lateral ratings; soil assumptions; installation drawings; connector details; fastener specifications; evaluation reports; and conditions or limitations of use.

A brochure or retailer listing is not an adequate substitute.

6. Assess access and handling

Confirm:

• Freight method and delivery limits
• Unloading responsibility
• Unit weight
• Staging location
• Equipment access
• Overhead and side clearances
• Excavation access
• Placement tolerances
• Site-restoration implications

A product that removes curing time may still be impractical if it cannot be safely delivered or positioned.

7. Compare installed costs

Compare delivered-and-installed totals rather than unit prices:

Retail prices demonstrate why terminology must be resolved before cost comparison. At one Maine retailer, displayed prices ranged from $10.99 and $12.99 for small deck blocks to $23.99 for an 18-by-6-inch, 127-pound round concrete pad and $139.99 for a concrete pier with footing. These figures are a regional snapshot from one retailer, not national prices or installed-cost estimates. See the retailer’s displayed product distinctions and prices.

A low-priced block, a surface pad, and a full pier do not perform the same job merely because all appear in a deck-support category. Freight, excavation, lifting, labor, hardware, permits, and engineering may matter more than the catalog price of the concrete component.

8. Confirm inspection timing before ordering

Clarify whether the inspector must see:

• Open footing excavations
• Bearing soil
• Base preparation
• Product labels or identifying marks
• Installed footing depth
• Brackets and fasteners
• Work before backfill
• The completed framing-to-foundation load path

Do not order if:

• The authority has not accepted the proposed footing type.
• Allowable assembly ratings are unavailable.
• Required gravity, uplift, or lateral information is missing.
• Soil assumptions are unknown or inconsistent with the site.
• Delivery and placement access remain unresolved.
• Connector specifications are incomplete.
• Required installation or inspection details are unavailable.

Frequently Asked Questions

Are precast deck footings the same as concrete deck blocks?

No. A concrete deck block is generally a relatively small surface support used only in permitted applications. A full-size precast footing is typically placed in an excavation and connected to a post through compatible hardware. A bracketed precast post is another distinct system.

The word precast only means the concrete was cast and cured before delivery. It does not make blocks, pads, buried piers, and integrated posts structurally equivalent.

Do precast deck footings have to extend below the frost line?

Buried deck foundations commonly must bear below the locally prescribed frost depth unless an accepted exception or alternative design applies. The requirement depends on the adopted code, local amendments, deck configuration, soil, and jurisdiction.

Catalog height does not prove compliance. Confirm the required bearing depth, how it is measured, and any accepted exception with the local building department.

Can framing begin immediately after a precast footing is installed?

Precast concrete does not require an onsite curing period. Framing may proceed after the footing has been properly placed and connected and after any required inspection or approval.

“Immediate” does not eliminate excavation, leveling, utility locating, connector work, inspection, backfilling, or correction of unsuitable site conditions.

Can a manufacturer-listed load capacity be used to size deck footings?

Not by itself. A listed top-load or test figure does not automatically establish an allowable project load. Footing design also depends on the value’s test basis, applicable design provisions, tributary loads, soil bearing, settlement, uplift, lateral resistance, connectors, and conditions of use.

Use assembly-level allowable ratings and an approved foundation design rather than converting a marketing figure or concrete-strength value into a footing size.

Can precast deck footings be installed by hand?

Do not assume so. Full-size precast products may be far too heavy for casual manual placement. Unit weight, lifting points, access, equipment limitations, and manufacturer handling instructions must be reviewed before delivery.

The appropriate equipment, rigging, and personnel must be determined from approved instructions, site constraints, equipment requirements, and the responsible installer—not from a generic description of precast footings.

Final Verification Before You Buy

Use a verification-first process: identify the exact class of precast support, confirm the locally required foundation type and frost depth, evaluate the complete load path and soil assumptions, obtain assembly-level ratings and installation documents, and compare delivered-and-installed costs.

Precasting can remove the onsite concrete cure wait. It cannot replace structural design, competent bearing conditions, safe placement planning, required inspections, or local approval.
