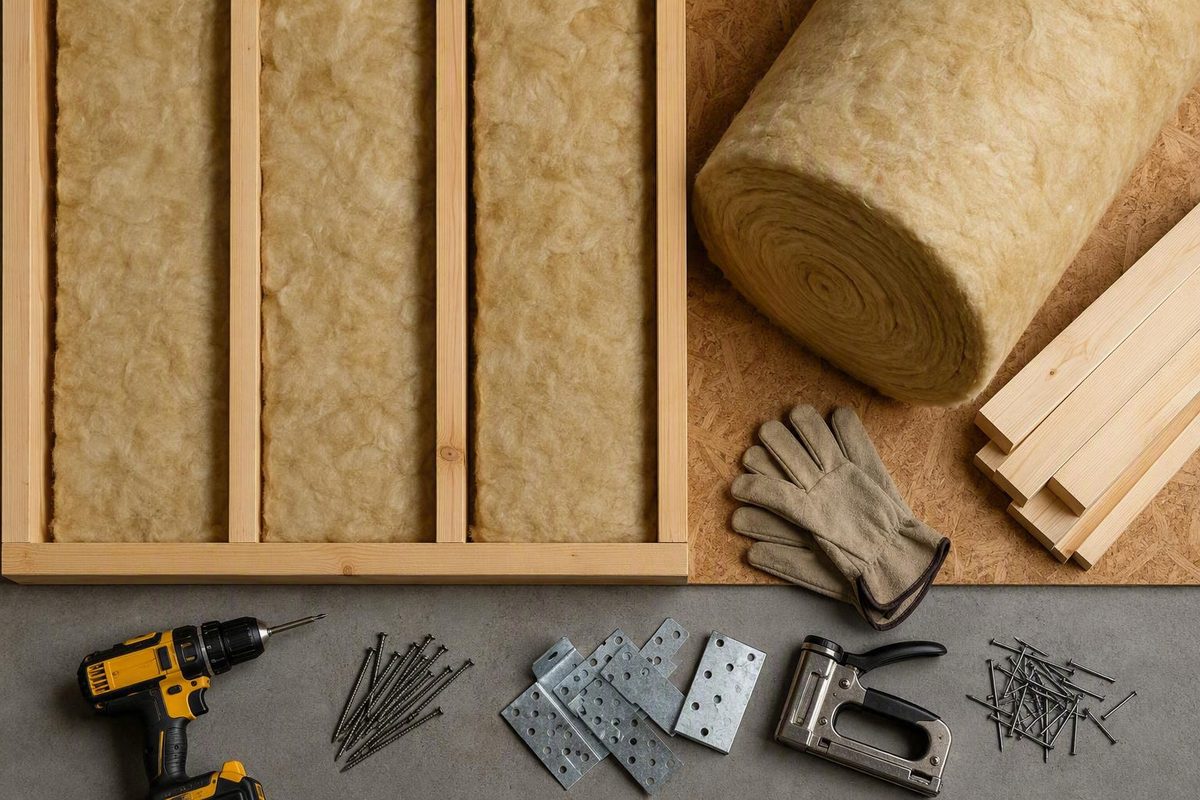

How to Choose and Plan Insulation for a 3.5-Inch Wall Cavity

Insulating a 2x4 wall successfully involves more than choosing between R-13 and R-15. The insulation must fit the cavity, but the completed wall must also manage heat, air, water vapor and bulk water through an assembly interrupted by framing.

Before buying material, identify the wall and its existing layers, measure representative cavities, determine what access is available and confirm the locally adopted building and energy-code editions. Repair, air sealing, vapor control and required protective coverings should be planned as parts of the wall system—not treated as optional additions after the insulation goes in.

Start With the Wall, Not the Insulation Package

A conventionally framed 2x4 wall commonly has cavities approximately 3.5 inches deep. “2x4” is a nominal lumber description, however, not a substitute for measuring the wall in front of you. Check several representative bays, especially in older, remodeled or furred-out walls. Mortar Desk’s overview of nominal and actual building-material dimensions explains why material names and measured dimensions can differ.

Measure the clear width between stud faces as well as the depth. Stud spacing is usually described on center, while insulation must fit the opening. Corners, doubled studs, blocking, repairs and irregular framing can create narrow or nonstandard cavities requiring separate pieces.

Next, identify the wall’s role:

• Exterior thermal wall: Heat flow, air leakage, water management, vapor control and drying all matter.
• Interior partition: Thermal resistance may be secondary to temperature separation or sound absorption. Cavity insulation alone does not establish a tested sound-isolation assembly.
• Wall adjoining a garage: The insulation’s R-value does not determine whether the complete separation complies with local requirements.
• Garage conversion: Confirm the proposed use and complete assembly with the local authority before choosing insulation.
• Basement or masonry-adjacent wall: Moisture exposure and drying behavior may differ substantially from those of an above-grade wood-framed wall.
• Required fire-resistance-rated wall: Select a documented complete assembly rather than assuming that a product marketed as fire resistant creates a rated wall.

The framing, finishes, fasteners, joints and penetrations remain part of the assembly.

Project checklist

Record the following before comparing products:

• Wall location and use
• Whether cavities are exposed or covered
• Actual cavity depth
• Clear width between studs
• Framing irregularities, blocking and narrow bays
• Interior, exterior or both-side access
• Climate and jurisdiction
• Locally adopted building and energy-code editions
• Existing insulation and its condition
• Interior finish and known vapor-control layers
• Sheathing type and condition
• Water-resistive barriers and exterior membranes
• Exterior continuous insulation, if present
• Cladding type and drainage arrangement
• Evidence of leakage, condensation, staining, mold or deterioration
• Electrical, plumbing, duct and other penetrations
• Any required fire-rated or acoustically tested construction

Access narrows the practical choices:

1. Open cavities: Batts and other systems intended for open walls are possible candidates.
2. Closed wall with finishes remaining: A qualified assessment may identify a fill system, selective demolition or an exterior retrofit as suitable.
3. Exterior access available: Continuous insulation can cross the studs and reduce framing-related thermal bridging.
4. Exterior changes prohibited: Interior continuous insulation or wall thickening may be possible, but either approach can affect room area, trim, services, fastening and moisture behavior.

Do not assume that cavity-only R-13 or R-15 satisfies the governing energy code. Requirements vary by climate, jurisdiction and adopted edition, and colder-climate provisions may call for continuous insulation or another higher-performing assembly in addition to cavity insulation. Lowe’s installation guidance similarly directs readers to check local R-value and vapor-control requirements and to follow applicable codes and product instructions (installation guidance).

For a usable verification trail, ask the local building department which code editions and amendments apply. Then record the insulation manufacturer, product name or model, intended framing size, current installation document and any evaluation or assembly report required for the proposed application.

This article provides general reference information. It is not project-specific contracting, engineering or code advice.

What Fits: R-13, R-15 and the Problem With Compressing Deeper Batts

Cavity-specific R-13 and R-15 fiberglass or mineral-wool batts are commonly offered for approximately 3.5-inch-deep walls. Products with those two ratings can have the same nominal thickness because their material, fiber structure or density differs. A manufacturer’s general comparison reports that some R-13 and R-15 fiberglass and mineral-wool batts are both 3.5 inches thick, but the package dimensions and intended framing must still be checked for the exact product (Rmax comparison).

R-15 provides greater nominal resistance to heat flow than R-13. R-13 may cost less locally, but neither is automatically the better value. Compare:

• Current local price per square foot
• Package coverage and facing
• Climate and code requirements
• Installation quality
• Framing fraction
• Heating and cooling conditions
• Whether continuous insulation is planned
• The project’s whole-wall performance target

A deeper batt does not become a high-R 2x4 product simply because it can be squeezed into the cavity. Material intended for a deeper space loses thickness when compressed and should not be counted at its full label value. One commercial comparison reports that compressing deeper R-19 material into a 3.5-inch cavity reduces its effective performance (R-13, R-15 and R-19 comparison).

Width also matters. Retail listings show that products around 15 inches and 15¼ inches wide are sold for certain 2x4 applications, but those are examples rather than universal dimensions. Measure the clear opening and verify that the selected product is intended for the actual framing layout.

Cavity R-Value Is Not Whole-Wall R-Value

R-value expresses resistance to heat flow. The value printed on a batt describes the insulation under specified conditions; it is not automatically the R-value of the completed wall.

A framed wall contains parallel heat-flow paths through:

• Insulated cavities
• Studs
• Top and bottom plates
• Headers
• Corners
• Window and door framing
• Blocking and other solid framing

Wood framing interrupts the cavity insulation and creates thermal bridges. Consequently, changing from R-13 to R-15 improves the insulated portions of the wall, but it does not turn the studs, plates and headers into R-15 components. The whole-wall gain is therefore smaller than the two-point difference printed on the packages.

Actual performance also depends on:

• The proportion of the wall occupied by framing
• Installed insulation thickness
• Edge gaps and voids
• Compression or slumping
• Air leakage
• The thermal properties of the sheathing, finishes and other layers
• The continuity of insulation at transitions and openings

Contributor calculations from forums can illustrate why cavity and whole-wall values differ, but they should not be treated as universal results. Project decisions should use the calculation method accepted by the local authority, documented assembly data or an assembly-specific analysis using realistic framing and installation assumptions.

Continuous insulation addresses a limitation that higher-R cavity insulation cannot eliminate by itself. Because a continuous layer crosses studs and plates, it interrupts much of the framing-related heat-flow path. Expert-moderated discussions of gutted 2x4 walls therefore emphasize continuous exterior insulation as one possible response to thermal bridging, while also stressing that climate and assembly design matter (Green Building Advisor discussion).

That does not mean every wall needs the same continuous material or thickness. Its location and amount must be coordinated with the climate, cavity insulation, wall layers, attachment method, water management and vapor strategy.

Compare Fiberglass, Mineral Wool, Cellulose, Foam and Continuous Board

No single material is best for every 2x4 wall. Access is the first practical filter: batts may suit exposed cavities, while an intact finished wall can require a different approach. Continuous board becomes more practical when exterior cladding or interior finishes are already being removed.

Fiberglass

Fiberglass batts are a familiar choice for exposed 2x4 cavities. They can be compared by package coverage and inspected before the wall is closed. Their performance depends on selecting the correct depth and width and following the chosen manufacturer’s fitting instructions.

Fiberglass does not eliminate the need for separate air sealing.

Mineral wool

Mineral-wool batts are also available in dimensions intended for some 2x4 walls.

Retailer descriptions may mention fire resistance or sound control, but these claims apply to product attributes, not automatically to the complete wall. Do not describe a wall as fire rated or soundproof unless the complete construction corresponds to appropriate documented assembly information.

Cellulose and other fill systems

Suitability depends on the cavity condition, existing insulation, internal obstructions, access openings, containment and the selected system.

The available evidence does not support a universal dense-fill procedure. Do not adapt an open-cavity batt method to a fill product. Use current system-specific instructions and obtain a qualified assessment of the existing wall.

Closed-cell spray foam

Closed-cell spray foam can provide high nominal thermal resistance per inch, which can be attractive where cavity depth is fixed. A nominal per-inch rating, however, does not guarantee a particular completed cavity value. The selected product, installed thickness, thin spots and uniformity all matter.

Before specifying it, verify:

• Substrate requirements
• Installation and curing conditions
• Installer and occupant safety instructions
• Ventilation and re-entry directions
• Product-specific vapor properties
• The wall’s remaining drying potential
• Required coverings or other protection
• Compatibility with adjacent materials
• Future access for repair or remodeling
• Project cost and environmental priorities

Treat spray foam as an assembly decision, not as a direct drop-in replacement for a batt.

Continuous board

Rigid foam or semi-rigid mineral-wool board is generally most valuable as a layer crossing the framing. Cutting rigid board into each stud bay—often called cut-and-cobble—creates many perimeter joints and depends on careful product-specific sealing. An expert-moderated building-science discussion characterizes that approach as labor intensive and highly dependent on execution; it should not be presumed to create a dependable air barrier merely because the pieces appear tight.

Choose among these materials according to access, climate, code, moisture strategy, performance target, budget and installer capability. There is no universal material ranking.

Inspect, Repair and Air-Seal Before Insulating

New insulation should not conceal an unresolved building problem. Use a bounded preparation sequence:

1. Inspect the accessible framing, sheathing, plates, penetrations and existing insulation.
2. Look for staining, dampness, deterioration and likely water-entry paths.
3. Correct active leakage or drainage defects.
4. Determine whether damaged insulation or building materials require removal, cleaning, repair or replacement.
5. Stop if suspect hazardous materials, unsafe wiring or other unsafe conditions are present.
6. Air-seal accessible leakage paths using materials suitable for the intended air-control layer.
7. Install insulation only after the assembly is ready.

Wet insulation, mold and active water problems should be corrected rather than covered. Homes built before 1980 might contain asbestos insulation or other hazardous materials, so suspect material should not be cut, pulled apart or otherwise disturbed without appropriate professional assessment. Lowe’s preparation guidance likewise advises correcting water and mold problems, replacing damaged insulation and obtaining professional assistance where asbestos may be present (preparation and safety guidance).

Potential air-leak locations include:

• Plumbing penetrations
• Duct penetrations
• Wiring openings
• Electrical penetrations
• Accessible joints and gaps
• Openings around service entries

Use sealants and materials compatible with the substrates and the intended air-control layer. Insulation alone does not automatically create a reliable air barrier.

For batt work, the retailer guidance cited above lists eye protection, gloves and a dust mask among the basic protective equipment. The selected product’s safety data and installation instructions may require additional clothing, respiratory protection, ventilation or work practices.

Do not place insulation near heat-producing equipment or components until the applicable clearance has been verified. Check the component’s listing and instructions, the insulation manufacturer’s directions and the requirements accepted by the local authority rather than applying one generic clearance to every fixture, flue, chimney or appliance.

Install Cavity Insulation Without Gaps or Unplanned Compression

For an exposed 2x4 wall, keep the workflow limited to steps supported by the selected product documentation:

1. Confirm cavity depth and clear stud spacing.
2. Complete water repairs and evaluate damaged materials.
3. Air-seal accessible leakage paths.
4. Select insulation labeled for the cavity depth and framing layout.
5. Read the current manufacturer installation and safety instructions.
6. Fit all regular, narrow and irregular cavities as those instructions direct.
7. Inspect the work before concealment.
8. Install the required interior finish or protective covering.

The insulation must match both the framing depth and the opening width. A product that is too narrow can leave edge gaps; one that is too wide can buckle or fold. A product intended for a deeper cavity should not be compressed merely to obtain a higher label R-value.

Wiring, plumbing, boxes, blocking and unusual framing require product-specific fitting. Do not crush a complete batt against an obstruction or invent a cutting pattern from unrelated instructions. Follow the selected insulation manufacturer’s directions and obtain qualified help where electrical, plumbing or other conditions make the work uncertain.

Air sealing remains a separate operation. Fitting insulation around a box or pipe does not necessarily seal the related penetrations, and stuffing fibrous material into a crack does not create a durable air seal.

Pre-drywall inspection checklist

Check for:

• Visible gaps along insulation edges
• Empty narrow cavities or corners
• Unfilled areas beside openings
• Unsupported or displaced material
• Folded, buckled or excessively compressed insulation
• Incomplete areas around obstructions
• Short pieces that do not fill the intended space
• Missed accessible air leaks
• Unresolved stains, dampness or deterioration
• Vapor-control layers inconsistent with the planned assembly
• Missing required coverings

Paper facing on faced insulation is flammable and must be covered with an appropriate finish such as drywall, according to the retailer installation guidance cited in the previous section. Foam products can have product- and application-specific protective-covering requirements. Confirm those requirements from current product documentation and the local authority before installation; do not assume that all foam products or locations are treated identically.

Avoid copying generic fastening, cutting, clearance or fire details from another product. Facing attachment, protective coverings and assembly details must correspond to the selected material and wall design.

Faced or Unfaced: Separate Air Control From Vapor Control

Faced insulation includes an attached vapor-retarding layer. Unfaced insulation does not. That distinction alone does not determine which product belongs in a particular wall.

An air barrier limits airflow through the assembly. A vapor retarder limits water-vapor diffusion through a material. These are different transport mechanisms.

Reject the blanket rule that insulation facing must always point toward conditioned space. Appropriate selection and placement depend on:

• Climate
• Seasonal indoor and outdoor conditions
• Indoor humidity
• Existing wall layers
• Product vapor permeance
• Sheathing and exterior membranes
• Cladding and drainage
• Intended drying direction
• Locally adopted requirements

Adding a new low-permeance layer can restrict drying. Before installing faced batts, interior foam or another membrane, identify whether the wall already contains interior polyethylene, foil-faced foam, peel-and-stick membrane, exterior foam or another vapor-control layer.

In one documented Alberta retrofit, an Ecohome response recommended retaining the existing interior polyethylene with a proposed cavity-and-exterior-mineral-wool assembly unless another vapor-control solution replaced it. That was advice for one cold-climate wall, not a universal instruction. The same discussion shows why exterior membranes, spray foam, insulation thickness and attachment need to be considered together (cold-climate retrofit discussion).

Spray foam can materially change vapor behavior depending on product and installed thickness. Peel-and-stick exterior membranes may also act as vapor retarders. Evaluate these layers as parts of one assembly rather than choosing each independently.

Seek assembly-specific building-science or code guidance when the wall includes:

• Existing interior polyethylene
• Foil-faced foam
• Peel-and-stick exterior membranes
• Multiple foam layers
• Masonry
• Limited drying in both directions
• Persistent staining or condensation
• Uncertain sheathing or membrane materials
• A proposed spray-foam system

The goal is not to install the maximum number of vapor barriers. It is to control moisture while preserving an appropriate drying path for the complete wall.

Three Upgrade Paths Beyond a Basic Cavity-Only Wall

When R-13 or R-15 cavity insulation does not meet the project’s target, compare three assembly-level paths.

1. Cavity-only insulation

This is often the least disruptive approach when the wall is already open. Repair and air-seal the assembly, then install cavity-specific batts or another suitable open-wall system.

Advantages:

• Preserves existing wall thickness
• Minimizes changes to trim and services
• Uses familiar, inspectable installation methods
• Can have a comparatively simple material and labor scope

Limitations:

• Does not eliminate thermal bridging through framing
• May not satisfy locally adopted requirements
• Offers limited depth for higher nominal cavity R-value
• Depends heavily on air sealing and installation quality

Use this path when the governing requirements allow it and the expected whole-wall result is acceptable—not merely because an R-15 package fits.

2. Cavity insulation plus interior continuous insulation or wall thickening

An interior upgrade may be considered where condominium rules, historic restrictions, property constraints or intact cladding prevent exterior work. Concepts include a continuous interior insulation layer or a thickened service wall.

Potential advantages:

• Avoids removal or alteration of exterior cladding
• Can reduce framing-related thermal bridging
• May create additional depth for insulation or services

Questions to resolve:

• Loss of interior floor area
• Window and door jamb depth
• Baseboards, casings and other trim
• Outlets, switches and other services
• Plumbing and heating clearances
• Fastening for cabinets or heavy fixtures
• Air-barrier transitions and penetrations
• Vapor properties of the added interior layer

An expert-moderated discussion of a Climate Zone 5 condominium reported that a contributor’s locally applicable 2015 code allowed an R-13 cavity plus R-5 continuous-insulation path. That is a reported, jurisdiction-specific example rather than primary code text or a universal prescription (Climate Zone 5 retrofit discussion).

Confirm any proposed numeric path directly with the local authority and the adopted code edition.

3. Cavity insulation plus exterior continuous insulation

Exterior continuous insulation crosses studs, plates and much of the other framing. It can therefore reduce thermal bridging while increasing the wall’s total resistance.

The amount needed for condensation control is not fixed. It depends on climate, cavity R-value, indoor humidity, insulation properties, vapor-control layers and the rest of the wall.

A Climate Zone 6 building-science discussion reported an R-13 cavity plus R-10 continuous-insulation option in the code context described by a contributor. As with the Zone 5 example, this is a discussion point—not authoritative code text for another jurisdiction. Verify the applicable requirement with the local building department and adopted code.

Exterior work requires coordinated decisions about:

• Cladding attachment
• Fastener type and length
• Thermal bridging through fasteners or clips
• Water-resistive-barrier continuity
• Window and door integration
• Sill, head and jamb depth
• Roof, deck and foundation transitions
• Drainage and ventilation behind cladding
• Compatibility among boards, tapes, membranes and sealants
• Any required fire blocking or protective covering

Thicker exterior insulation can make cladding attachment more complicated, and long fasteners or attachment systems can create additional thermal bridges. The Ecohome cold-climate discussion cited earlier highlights those attachment concerns, but the final detail still requires project- and product-specific design.

Polyisocyanurate also deserves product-specific review in cold climates because reported thermal performance can vary with temperature and formulation. Do not assign one universal R-value per inch. Use current data for the exact product, thickness and expected conditions.

Assembly-verification checklist

Before selecting any upgrade path, verify:

• Locally adopted building and energy codes
• Applicable amendments and the enforcing authority
• Current manufacturer data and installation documents
• Product dimensions and intended application
• Vapor permeance of important layers
• Air-barrier location and continuity
• Required protective coverings
• Water-resistive-barrier and drainage strategy
• Window, door and penetration integration
• Interior-finish or cladding attachment method
• Fastener and structural requirements
• Condensation-control strategy
• Inward and outward drying potential
• Compatibility among insulation, membranes, tapes and sealants
• Requirements for garage, fire-rated or other special assemblies

Frequently Asked Questions

Can R-15 insulation fit in a 2x4 wall?

Yes, if the specific R-15 product is manufactured and labeled for an approximately 3.5-inch-deep 2x4 cavity. Some R-13 and R-15 fiberglass or mineral-wool batts have the same nominal thickness because their composition or density differs.

Check the exact package dimensions, intended framing, measured cavity depth and clear stud spacing. The R-value alone does not establish physical fit.

Can I compress R-19 insulation into a 2x4 cavity?

It should not be treated as an R-19 installation. A batt designed for a deeper cavity loses thickness when forced into a 3.5-inch bay, reducing its effective thermal resistance and potentially creating folds or gaps.

Choose insulation designed and labeled for the available depth rather than pursuing a higher package number through unplanned compression.

Is R-15 worth the extra cost over R-13?

Sometimes, but there is no universal payback answer. R-15 has greater nominal thermal resistance, while R-13 may cost less. Compare current local prices for products with the same facing, package format and coverage.

Also consider the complete wall. Framing reduces the whole-wall benefit of moving from R-13 to R-15, while installation quality and air sealing affect either option. If the R-15 premium is substantial, compare it with spending on air sealing or an assembly-level continuous-insulation upgrade.

Do I need faced or unfaced insulation in a 2x4 exterior wall?

That depends on the complete assembly. Faced insulation supplies a vapor-retarding layer; unfaced insulation does not. Whether a wall needs that facing, and where it belongs, depends on climate, locally adopted requirements, indoor humidity, sheathing, exterior membranes, existing vapor retarders and drying direction.

Do not automatically add facing where the wall already contains polyethylene, foil-faced foam, peel-and-stick membrane or another low-permeance layer. Evaluate the combined vapor behavior first.

Can a 2x4 wall reach R-20 or R-21?

A 2x4 assembly may reach a nominal insulation total in that range through a high-R-per-inch cavity product, continuous insulation or wall thickening. A material total of R-20 or R-21, however, is not necessarily the whole-wall R-value and does not by itself establish condensation control or code compliance.

Cavity insulation plus a continuous layer can address stud bridging more directly than stacking pieces of rigid foam between individual studs. Spray foam may offer high nominal R-value per inch, but its product rating, actual installed thickness, uniformity, vapor behavior, curing instructions and required protection must all be verified.

The practical selection sequence is straightforward: identify the wall and governing code; measure the cavities; correct water, deterioration and safety problems; air-seal accessible leakage paths; choose insulation specifically labeled for the available depth and spacing; determine vapor control from the complete assembly; and inspect the work before covering it.

For greater performance, compare cavity-only work with continuous interior or exterior insulation. Obtain qualified help for suspected asbestos, persistent moisture, spray-foam systems, complex vapor-control conditions and required fire-rated construction.
