Identify Your Masonry Wall Before Buying Materials

A masonry wall may be a structural concrete-block wall, a brick veneer attached to framed backing, or a multiwythe brick-and-block assembly. The visible face does not establish what carries the building load, so identify the units, wythes, backing and structural role before buying materials or altering the wall.

Before ordering units, mortar, anchors or flashing, establish:

1. The unit material and specified size
2. The number of wythes and total assembly thickness
3. Whether the masonry carries building loads or acts as veneer

A wythe is one continuous vertical section of masonry, one unit thick. Masonry veneer is a finish wythe that transfers out-of-plane loads to its backing but is not considered to add load-resisting capacity to the wall system, according to the CMHA glossary of concrete masonry terms.

Select the visible masonry and what lies behind it; the identifier shows the most defensible classification.

Identify the Wall Type First

“Solid masonry” does not necessarily mean solid brick. The term also covers a wall made with hollow units that have been grouted solid. Reinforcement and grout may be concealed, so surface appearance is not enough to classify a structural wall.

A wall opening, unfinished edge, utility penetration or construction drawing may reveal the backing and number of wythes. Do not assume that an unbroken brick face is structural or that exposed concrete block is loadbearing.

Nominal Thickness Is Not Measured Thickness

Concrete masonry normally follows an 8 in. (203 mm) module. Typical CMUs have nominal face dimensions of 8 × 16 in. (203 × 406 mm), with nominal widths commonly ranging from 4 to 16 in. (102 to 406 mm) in 2 in. (51 mm) increments.

The unit is typically ⅜ in. (9.5 mm) smaller than its nominal dimension so the unit plus its mortar joint completes the module. An “8-inch block,” therefore, is commonly 7⅝ in. (194 mm) wide, not 8 in. wide. CMHA also notes that sizes and specialty shapes vary by region, making supplier availability part of the specification (CMHA modular-layout guidance). See the fuller concrete masonry block dimension chart before ordering.

Brick names are less dependable than dimensions. A common modular brick has:

• Nominal size: 4 × 2⅔ × 8 in. (102 × 68 × 203 mm)
• Specified size: 3⅝ × 2¼ × 7⅝ in. (92 × 57 × 194 mm)

The Brick Industry Association recommends specifying brick as width × height × length because regional and manufacturer names can vary (BIA Technical Note 10). Measure several intact units rather than one damaged unit or the distance across a deteriorated joint. Confirm the manufacturer’s stated size and tolerance before ordering replacements.

For a veneer wall, do not call the whole assembly “4 inches thick” merely because the brick is nominally 4 in. A drained wall also includes the clear air space, any continuous insulation, sheathing and structural backing. Those layers control tie selection, opening details and total wall depth.

Specify More Than the Masonry Unit

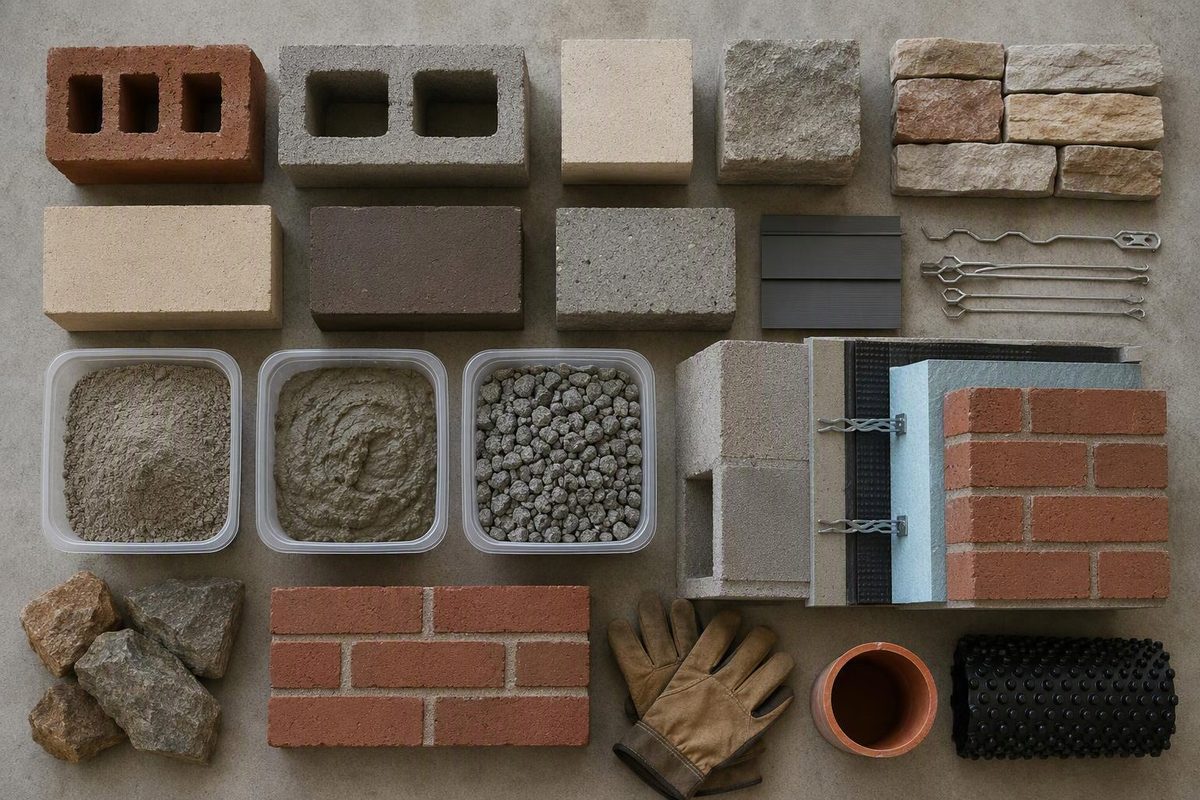

A masonry-wall material list may need all of the following:

• Units: Clay brick, concrete brick, CMU or stone, with specified dimensions and the applicable ASTM designation
• Mortar: Selected for unit compatibility, exposure and structural requirements, not simply the highest compressive strength
• Grout: Flowable material placed in CMU cells or spaces around reinforcement; it is not ordinary masonry mortar
• Reinforcement: Bar size, spacing, laps and grouted-cell locations taken from the approved design
• Ties or anchors: Matched to the backing, cavity width, corrosion exposure and required load transfer
• Flashing and weeps: Arranged to collect and discharge water from the assembly
• Movement joints: Control joints for concrete masonry or expansion joints for brick, located and detailed for the assembly
• Lintels, shelf angles or reinforced bond beams: Support placed over openings or at designated floor lines

A unit match alone does not establish that the replacement material is suitable. Mortar, ties, reinforcement and moisture-control components perform different functions and must correspond to the actual assembly.

Drainage Details Depend on the Assembly

A single-wythe CMU wall has no continuous drainage cavity. Penetrations, copings, joints and moisture-control details therefore require particular attention. CMHA describes surface protection, internal water repellency and drainage or drying as complementary defenses rather than interchangeable fixes (CMHA TEK 19-02B).

For drained brick veneer over CMU, BIA recommends a 2 in. (51 mm) minimum air space while identifying 1 in. (25.4 mm) as the prescriptive minimum in the codes discussed by its guidance. It also calls for flashing where the cavity is interrupted and weeps immediately above flashing (BIA Technical Note 28D).

Those figures apply to the assembly addressed by the BIA guidance. The required cavity, ties, flashing and clearances for a particular wall must follow its project documents and locally adopted code.

Worked Brick-Veneer Identification

Suppose an exterior wall exposes modular brick measuring approximately 3⅝ × 2¼ × 7⅝ in. (92 × 57 × 194 mm). Inspection at an existing opening shows a clear space behind the brick, followed by sheathing and wood studs.

That evidence points to brick veneer over framed backing, not a solid structural brick wall. It does not, by itself, confirm the type or condition of the ties or the support beneath the veneer. The purchasing checks are then specific to that assembly:

1. Match replacement brick by specified dimensions, material, color range and relevant physical properties—not by the label “standard brick.”
2. Select compatible repair mortar after identifying the existing mortar and exposure. Type N is often used for veneer, but that is not a universal repair prescription; the existing masonry and governing specification control. Compare the main brick mortar types and strengths.
3. Preserve the drainage space, flashing and weeps. Do not fill the cavity with mortar droppings.
4. Use ties or anchors documented for the backing, stand-off distance and exposure. A fastener chosen only from the 3⅝ in. brick width omits the cavity and backing connection.
5. Treat removal around openings, shelf angles or concentrated cracking as more than a cosmetic brick replacement. Those conditions may involve support or movement details.

If the same inspection instead finds 7⅝ in. (194 mm) CMU with grouted, reinforced cells, use the wall thickness, reinforcement layout and structural documents to select materials. The CMU wall sizing guide covers block count and the related mortar, grout and reinforcement checks.

Structural Work Requires the Enforced Local Rules

Structural alterations, new loadbearing masonry, retaining walls and changes to openings commonly require permits or design review. Veneer requirements also vary with backing, height, weight and seismic category.

The 2024 IRC provisions for anchored masonry veneer illustrate those limits but apply only where that edition and its relevant provisions have been adopted. Confirm the enforced code edition and local amendments with the building department before relying on a model-code detail.
