How to keep water moving out of a sided wall

Flashing for siding is not one strip of metal installed in one standard position. It is a group of components used wherever the wall’s normal drainage path is interrupted—at openings, trim, roof intersections, joints, penetrations, and changes in material.

The useful question is not simply, “Does flashing go over or under the siding?” It is: Where will water come from, which layer receives it, and how will the next layer carry it to the exterior?

The governing principle is straightforward: select flashing approved for the specific condition, integrate it with the water-resistive barrier (WRB) in drainage order, shape or slope it to shed water outward, and preserve the required exit path. Exact materials, dimensions, laps, clearances, fasteners, and sealants must come from current instructions for the selected products and the locally adopted code.

This is a general building-material reference, not a substitute for the siding, WRB, roofing, window, door, or flashing manufacturer’s technical documents.

What siding flashing does within the wall’s drainage system

A sided wall normally manages rain through several coordinated layers:

• Siding is the outer rain-shedding layer. It handles most direct exposure but is not assumed to stop every drop.
• The WRB—which may be house wrap, taped weather-resistant sheathing, a liquid-applied coating, or another approved system—is the secondary drainage plane behind the cladding.
• Flashing redirects water at openings, edges, joints, and transitions where the normal drainage plane is interrupted.

Wind-driven rain can enter siding joints, move around trim, or reach the back of the cladding. The wall therefore needs a route that prevents this water from being directed into sheathing joints or the wall cavity.

The basic layering principle is called shingle fashion or shingle lapping. An upper drainage layer overlaps the layer below it, much as an upper roof shingle overlaps a lower one. Gravity then carries water across the face of each successive layer. The opposite arrangement—a lower layer placed over an upper layer—creates a reverse lap that may direct drainage behind the lower material.

This explains why “over or under?” is an incomplete flashing question. At the head of a window, for example, flashing may be:

• Behind the siding;
• Beneath the WRB above;
• Over the window or trim below; and
• Positioned so its lower edge discharges toward the exterior.

All these relationships can exist at once. “Behind siding” does not mean “behind everything,” and saying that flashing is “over house wrap” does not describe every edge of a properly integrated component.

Recurring conditions that need coordinated details include:

• Window and door sills, jambs, and heads;
• Horizontal exterior trim and decorative bands;
• Sloped roof-to-wall intersections;
• The lower termination of a roof beside a wall;
• Utility and mechanical penetrations;
• Lap-siding butt joints where the siding instructions specify flashing;
• Siding-to-concrete or foundation transitions; and
• Other changes in cladding, substrate, or wall geometry.

Each location presents a different interruption. A cap above horizontal trim sheds water over the trim face. A sill pan provides a route beneath an opening. Step flashing follows a sloped roof edge. Kick-out flashing diverts concentrated roof runoff away from the wall. These components share a drainage purpose, but they are not interchangeable.

This article is intended for planning purchases and inspecting visible work before it is covered. Consistent with Mortar Desk’s general-reference role, it is not a project-specific wall design, engineering opinion, or determination that an installation complies with a particular code edition, warranty, or approved construction document. It also does not supply material-specific dimensions for every vinyl, fiber-cement, wood, metal, or engineered-wood siding system.

Siding flashing types matched to common conditions

Start with the wall condition, not the product name. The following table is a non-exhaustive conceptual reference, not an approved detail for every assembly.

Cap flashing and Z-flashing are commonly associated with horizontal trim, window and door heads, and decorative bands. Their formed shape provides an upper leg, a horizontal or sloped section across the interruption, and a lower edge that sheds water. The profile must fit the trim thickness and the approved wall detail.

Sill or pan flashing belongs at the bottom of an opening. It may be rigid, flexible, self-adhered, fluid-applied, or assembled from compatible components. Its job is not merely to seal a seam; it must preserve an outward route for water that reaches the opening. Door sill construction varies substantially, so the door manufacturer’s instructions should govern that condition.

Step flashing belongs along a sloped roof-to-wall intersection. Separate pieces are integrated with successive roofing courses so water remains on the roof side of the junction. Kick-out flashing belongs at the lower termination, where it turns runoff away from the wall and toward the gutter.

A flashing pan behind a lap-siding butt joint is a product-specific technique, not a universal siding rule. Do not order butt-joint pans merely because a wall uses lap siding. First determine whether the selected siding instructions require or permit them and whether the method depends on factory-finished ends, a particular joint width, or other conditions.

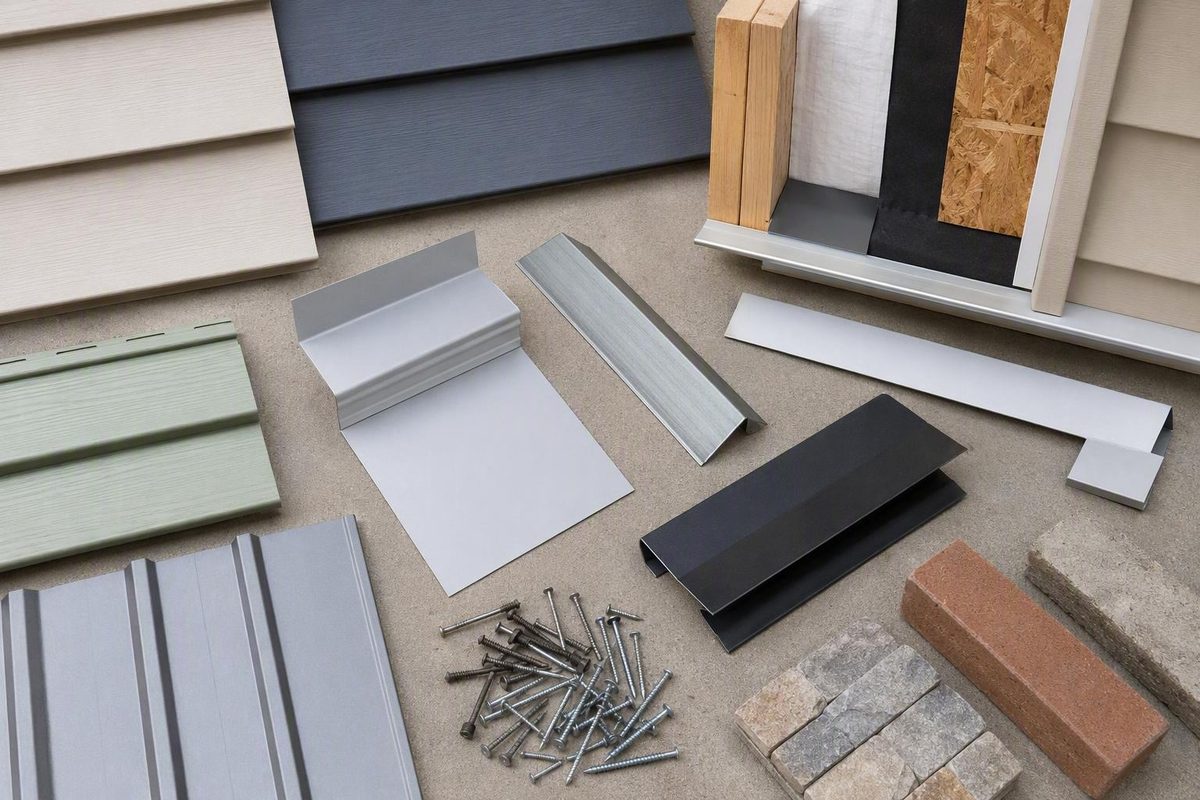

Broad material formats include:

• Formed metal, which provides a shaped edge or transition;
• Flexible self-adhered membrane, which conforms around corners and irregular transitions; and
• Fluid-applied flashing, which cures into a continuous treated layer.

Aluminum and galvanized steel are commonly sold as formed-metal flashing materials, but neither should be assumed compatible with every siding, substrate, coating, fastener, preservative, membrane, or sealant. Retail categories illustrate another purchasing hazard: products intended for ledgers, window caps, drip edges, step flashing, and other uses may be grouped together as Z-flashing products. Category membership does not establish suitability for a particular opening or roof junction.

Penetrations and siding-to-concrete joints likewise resist one-size-fits-all treatment. Their geometry, substrates, and exposure differ, so each requires an approved detail rather than an improvised generic Z profile.

The layer order: flashing, siding and the WRB

A conceptual wall section might include framing, sheathing, a WRB, flashing at an interruption, trim or an opening, and siding. That list identifies components; it does not establish a universal stacking order at every edge. The relationships change as the drainage path moves around a sill, jamb, head, roof line, or penetration.

At a simple horizontal transition, the intended sequence often works like this:

1. Water reaching the back of the siding drains down the face of the WRB.
2. The WRB above overlaps the upper edge of the transition flashing.
3. The flashing bridges the interruption and projects over the component below.
4. Its lower edge releases water toward the exterior.
5. Siding and trim are installed without blocking that release point.

A reverse lap breaks this sequence. If the upper flashing edge is left on top of the WRB rather than integrated beneath the drainage layer above, water running down the WRB can enter the seam. Likewise, if the lower edge turns inward, holds water, or terminates behind the lower component, the flashing no longer provides a dependable outlet.

The complete approved detail may include tapes, sealants, end dams, corner patches, or liquid-applied transitions. These additions should reinforce the drainage order rather than create a sealed pocket.

There is no universal answer to whether house wrap must always be installed before or after a flanged window. A Green Building Advisor editor discussion describes more than one workable sequence: one may wrap the opening before setting the unit, while another may install the window and then integrate its flange with the WRB. That discussion is expert Q&A rather than a code provision or product-specific manual; the applicable system must maintain correct drainage laps and include the required sill treatment (window and house-wrap sequencing discussion).

Trim location also changes the head-flashing arrangement. Trim fastened directly to the sheathing may place cap flashing above the trim. If trim is installed over the siding, the opening may require head flashing at a different plane, followed by a separate trim or cladding detail. Copying a drawing without matching its trim configuration can place the flashing in the wrong drainage plane.

A rainscreen adds another variable. Furring or a designed drainage cavity creates space behind the siding that may need to remain able to drain below head flashing. A gap discussed for one rainscreen detail is not a universal dimension. Its size and placement depend on the siding, trim, furring, insect-screen strategy, flashing profile, and manufacturer instructions.

Before siding hides the work, inspect for:

• Upper layers that do not overlap lower layers;
• Unrepaired WRB cuts, holes, or tears;
• Flashing upper edges exposed to drainage from above;
• Punctured or poorly bonded tape;
• Wrinkles, bubbles, loose corners, or fish-mouths;
• Incomplete connections at flashing ends;
• Fasteners through critical pan or drainage surfaces; and
• Lower edges trapped behind trim, siding, roofing, or sealant.

Trace a hypothetical drop of water from the WRB above, across the flashing, and out in front of the lower component. If the path reaches an inward-facing seam or closed pocket, the assembly needs correction before it is concealed.

Flashing windows, doors and horizontal trim

Openings require a sequence, not isolated strips of tape. The supported general order is:

1. Install sill or pan flashing first.
2. Install jamb or side flashing over the pan.
3. Install head flashing over the jamb flashing.
4. Lap the WRB head flap over the head flashing.
5. Seal or tape the restored WRB as required by the approved system.

The Building America Solution Center identifies rigid, flexible, self-adhered, and fluid-applied pan systems and describes this pan-side-head drainage sequence in its government technical resource guide for flashed windows and doors.

The sill needs a continuous route to the exterior. Depending on the selected method, the pan may be preformed, site-built from flexible membrane, treated with fluid-applied flashing, or created with another approved system. A sloped drainage surface encourages water to move outward. Where the applicable detail specifies a back dam, the raised interior edge discourages water from moving toward the room side of the opening.

Do not automatically seal across the exterior sill merely because an uncaulked edge appears unfinished. In methods designed to drain at the sill, a continuous bead across that outlet can trap water. Sealant placement should follow the instructions for the window, door, pan, WRB, and flashing system.

Jamb flashing should connect to the sill pan without creating a reverse lap at the lower corners. Head flashing then overlaps the jamb treatment. Finally, the WRB above is restored over the head flashing so water from higher on the wall cannot run behind it.

Cap or Z-flashing above exterior trim performs a related but distinct job. It sheds water over the trim face and protects the horizontal joint at the top. The Building America guide calls for cap flashing above exterior window trim to extend beyond the trim, but its illustrated projections, tape treatments, and other measurements belong to that method rather than every opening assembly.

Door heads and jambs may follow an applicable window-style sequence or the door manufacturer’s method. Door sills should not be generalized from window diagrams: threshold support, accessible entries, pan shape, end dams, and drainage provisions can differ.

The government guide also cites IRC Section R703.8 concerning flashing against moisture entry and ASTM E2112-07 for a particular sloped-pan condition. Those references do not establish that the same code or standard edition governs every current project; verify the locally adopted edition, amendments, project documents, and current opening instructions (Building America code and standards discussion).

Before installing siding around an opening, confirm that:

• The pan is continuous through the sill and corners;
• The sill retains its intended exterior drainage path;
• Jamb flashing overlaps the pan;
• Head flashing overlaps the jamb treatment;
• The WRB above laps over the head treatment;
• Cap flashing, where required, sheds over the trim;
• No reverse lap directs water behind the opening;
• Membranes have no punctures, lifted edges, gaps, or fish-mouths; and
• Sealant has not closed a required outlet.

Roof-to-wall flashing beside siding

A sloped roof meeting a sided wall requires two components with different jobs.

Step flashing consists of individual pieces integrated with successive roofing courses along the slope. Each piece transfers water onto the roofing surface below. Kick-out flashing is the diverter at the bottom of the intersection. It turns concentrated runoff away from the adjoining wall and toward the gutter.

The intended route is:

1. Rain moves down the roof covering.
2. Water reaching the wall edge is intercepted by successive step-flashing pieces.
3. Those pieces keep the water on the roof side of the junction.
4. At the bottom, kick-out flashing turns the concentrated flow away from the wall.
5. The gutter receives and carries the runoff away.

In the arrangement described by LP Building Solutions, step flashing sits behind the siding and beneath the roofing material. The WRB must then connect with the roof-wall flashing in shingle fashion rather than terminating behind it in a way that exposes an inward-facing seam.

A formed Z profile is not an established substitute for step flashing and kick-out flashing at a sloped roof-wall intersection. Z-flashing typically addresses a horizontal interruption. Step flashing follows the roof slope course by course, while the kick-out handles concentrated discharge at the bottom.

Clearance between siding and roofing matters because direct contact can obstruct drainage and make the junction difficult to inspect or maintain. As a manufacturer-specific example, an LP article reports a minimum 1-inch clearance between siding and roofing and a 3/8-inch gap between flashing and the siding’s lower edge for the cited SmartSide condition. It also says to leave that drainage gap uncaulked and slope the flashing away from the wall. These figures come from an LP manufacturer article, not a current product manual verified here, and must not be transferred to another siding system or used for ordering without checking the current instructions for the exact LP product (LP guidance on flashing under siding).

Check a roof-wall junction for:

• Missing or discontinuous step flashing;
• A missing kick-out at the lower termination;
• WRB that ends behind rather than laps over the wall flashing;
• A reverse lap near the eave;
• Flashing that is flat or slopes toward the wall;
• Siding installed too close to the roof under the applicable instructions;
• Sealant, debris, roofing cement, or siding that blocks the required drainage space;
• A kick-out that misses the gutter; and
• Gaps where the roof, gutter, trim, and wall drainage planes meet.

This area involves both roof and wall systems. A satisfactory detail must coordinate roofing courses, step flashing, kick-out flashing, the gutter, WRB, siding, and trim rather than assigning the entire job to a visible bead of sealant.

Butt joints, concrete transitions and penetrations

Less obvious joints still need a route for water, but general drainage principles must be separated from product-specific instructions.

At lap-siding butt joints, some systems use joint flashing or a small pan behind adjacent board ends. Others use different treatments. The presence of a butt joint does not by itself establish that a pan is required or approved.

LP describes a tightly limited example for specified SmartSide ExpertFinish prefinished siding with factory-finished ends. Its article reports a pan at least 4 inches wide, positioned vertically with half behind the end of the installed siding, a 3/16-inch joint between adjacent pieces, and a pan bottom that must not project below the lap siding. The same article reports a 4-inch upper leg for Z-flashing in its system and says flashing tape may supplement a short stock profile in that context. These figures and the tape treatment are LP-specific, are reported by a manufacturer article rather than a current manual verified here, and should not be transferred to another product or used without confirming the current instructions for the exact LP siding (LP butt-joint and Z-flashing example).

At a siding-to-concrete transition, the broad objective is to divert water across the change in substrate and reduce moisture entry at the joint. Possible material categories include formed metal, self-adhered membrane, and fluid-applied flashing. Product suitability still depends on the approved assembly and compatibility with both wall and concrete surfaces.

A manufacturer overview of flashing where siding meets concrete supports this general membrane workflow:

1. Make the receiving surface clean and dry.
2. Lay out the transition so work proceeds in drainage order.
3. Apply the approved membrane without gaps or trapped air pockets.
4. Treat edges and seams as required by that product.
5. Integrate the upper portion with the wall drainage plane.
6. Preserve an outward discharge at the lower transition.
7. Inspect the completed joint before covering it.

This is not a specification for overlap, primer, rolling pressure, installation temperature, exposure time, or cure time. Those requirements vary by product and substrate and must come from the applicable technical documentation.

Utility penetrations—such as vents, hose connections, electrical boxes, lights, and service openings—also interrupt the drainage plane. A common concept uses a flanged mounting block or an approved membrane detail:

• The top flange or flashing connects behind the WRB above;
• The sides are integrated in the selected shingle sequence;
• The bottom laps over the WRB below; and
• Water is released outward rather than trapped behind the block.

The penetration itself may require a compatible seal, but perimeter caulk alone does not recreate a missing drainage-plane connection. The detail must account for the flange or membrane, WRB, siding termination, fasteners, and future service access.

Material selection, compatibility and the role of caulk

Flashing formats are best compared by function rather than by declaring one universally superior.

Formed metal provides a stable, shaped drainage edge. It can bridge a horizontal interruption, cap trim, or form a roof-related profile when manufactured for that application. Aluminum and galvanized steel are widely available, but suitability depends on the surrounding assembly.

Self-adhered membrane conforms around corners, flanges, and irregular transitions. Installation may depend on substrate condition, approved primer, application temperature, pressure, overlap, exposure limits, and compatibility with sealants and other membranes.

Fluid-applied flashing is applied as a liquid and cures into a continuous treated layer. Coverage, thickness, reinforcement, cure conditions, and compatible substrates are product-specific.

Selection should account for the complete assembly:

• Siding type and finish;
• WRB or drainage-plane material;
• Sheathing and other substrates;
• Window, door, or penetration system;
• Roofing and roof-wall flashing;
• Concrete, masonry, or treated wood in contact with the detail;
• Flashing metal or membrane;
• Fasteners;
• Sealants, tapes, primers, and coatings;
• Climate and exposure;
• Approved project documents; and
• Locally adopted requirements.

Fasteners should be compatible with the flashing material and surrounding components. Visual similarity between two fasteners does not establish that they have the same coating, corrosion resistance, holding requirements, or approved use.

Do not improvise a universal compatibility chart for metals, treated lumber, membranes, siding coatings, and sealants. Confirm proposed contact materials in the current documentation for all affected products. Where instructions conflict or omit the intended combination, resolve the question before purchasing or installing materials.

Flashing tape is valuable when it is part of an approved layered system. It can connect a flange to a WRB, form part of a sill pan, reinforce a corner, or supplement another component where the governing detail permits. It should not be assumed to replace a formed cap, Z-flashing, step flashing, or kick-out merely because it is flexible and water-resistant.

Caulk has a narrower role. It is a secondary, maintainable seal used at specified joints—not the primary drainage system. Sealant can help resist direct entry, but it cannot correct a reverse lap, restore a missing sill pan, or turn wall flashing into step flashing.

Caulk can also cause trouble when placed across a required drainage opening. If water is intended to leave beneath siding, trim, a sill, or a roof-wall transition, sealing the outlet may create a pocket behind the cladding. Follow the sealant map in the approved detail rather than caulking every visible gap.

Before buying flashing materials, verify:

• Exact application: window head, sill pan, trim cap, step flashing, kick-out, butt joint, concrete transition, or penetration;
• Required dimensions: profile legs, width, projection, joint gap, and clearance from the current detail;
• Material compatibility: flashing, siding, WRB, substrate, fasteners, coatings, and sealants;
• Substrate approval: whether the membrane or liquid can be used on the receiving surface;
• Accessory requirements: primer, corner patches, rollers, end dams, transition membranes, fasteners, or sealants;
• Exposure limits: whether the material may remain uncovered and for how long;
• Drainage requirements: slope, outlet, clearance, and locations that must remain uncaulked; and
• Current documents: instructions for the siding, opening, roofing, WRB, and flashing products—not merely a retailer description or general article.

Inspection checklist and common flashing failures

The following is a non-exhaustive conceptual checklist. It does not replace the inspection criteria for the selected products or the locally adopted code. Flashing is easiest to inspect while the wall is open; once siding and trim conceal the drainage plane, verification may require selective removal.

Pre-cover inspection

• [ ] Every required sill pan, jamb strip, head flashing, cap, step-flashing piece, kick-out, joint pan, and penetration detail is present.
• [ ] Upper layers overlap lower layers in drainage order.
• [ ] No reverse lap faces water running down the WRB.
• [ ] Flashing intended to drain outward is not flat or sloped inward.
• [ ] The WRB overlaps the upper edge of wall flashing where required.
• [ ] Window pans are continuous at sills and corners.
• [ ] Jamb flashing overlaps the sill treatment.
• [ ] Head flashing overlaps the jamb treatment.
• [ ] The WRB head flap is restored over the head flashing.
• [ ] Cap flashing sheds over horizontal trim.
• [ ] Step flashing follows the full sloped roof-wall intersection.
• [ ] Kick-out flashing is present at the lower roof termination and discharges toward the gutter.
• [ ] Utility penetrations connect to the WRB rather than relying only on surface caulk.
• [ ] WRB cuts, tears, and construction damage have been repaired using the approved method.
• [ ] Tapes and membranes have no punctures, wrinkles, bubbles, fish-mouths, gaps, or lifted edges.
• [ ] Seams are fully bonded and are not pulling loose at corners.
• [ ] Required drainage routes and clearances remain open.
• [ ] Sealant has not blocked a sill, rainscreen cavity, flashing outlet, or roof-wall gap.
• [ ] Exposed metal has no visible corrosion or physical damage.
• [ ] Fasteners and joints show no visible deterioration.
• [ ] Each component matches the approved material and dimensions for its actual application.

Visible corrosion or fastener deterioration deserves investigation, but appearance alone does not prove a particular chemical incompatibility. Identify the metal, coating, fastener, substrate, and contact materials before diagnosing the cause.

Self-adhered materials should lie flat and remain securely bonded at edges, corners, and transitions. Bubbles, gaps, or failed adhesion may interrupt the intended route. Whether a patch, replacement strip, primer, or compatible liquid treatment is allowed must be checked against the product instructions.

When a finished wall may have a flashing problem

Possible warning signs include:

• Staining near wall seams, windows, doors, or corners;
• Interior staining near an exterior wall;
• Cracked or missing perimeter sealant;
• Warped vinyl siding;
• Cracked or blistered fiber-cement siding;
• Softened or visibly deteriorated wood siding;
• Repeated staining near a roof-wall junction;
• Moisture appearing around a penetration; or
• Deterioration concentrated below horizontal trim.

These observations indicate a need to investigate; they do not identify the entry point conclusively. A contractor overview lists these as possible clues and likewise cautions that water can travel before becoming visible (possible signs of siding-related moisture problems).

Evaluate the roof, gutter, roof-wall intersection, openings, penetrations, siding, trim, flashing, and drainage plane together. An upper-wall stain may originate at roofing, a missing kick-out, a window, a penetration, or another point some distance from the visible damage.

A dependable concealed-flashing repair may require removing selected siding or trim. Surface caulk cannot be assumed to reconnect a sill pan, head flashing, step flashing, or penetration flange to the WRB. Exploratory removal may also be necessary to inspect concealed sheathing and determine how far water has traveled.

Use this verification hierarchy before closing or repairing a wall:

1. The locally adopted code and amendments;
2. Current instructions for every selected siding, WRB, flashing, roofing, window, door, fastener, and sealant product;
3. Approved project drawings and specifications, where applicable;
4. A condition-by-condition check of the intended water path; and
5. Visual inspection before siding or trim conceals the connections.

Frequently asked questions

Does flashing go behind siding or over it?

Frequently, both descriptions apply to different parts of the same detail. Flashing may sit behind the siding while its lower edge extends over a window, trim board, roofing surface, or another component below. The WRB above generally overlaps the flashing’s upper edge so water drains onto the flashing and then outward.

Do not choose a position based only on whether flashing is “under siding.” Trace the complete drainage sequence: the upper layer should overlap the lower one, and the lower flashing edge must remain able to discharge outside the wall.

Can Z-flashing be used where a sloped roof meets a sided wall?

Z-flashing is not an established substitute for step flashing and kick-out flashing at a sloped roof-to-wall intersection. Step-flashing pieces integrate with successive roofing courses along the slope, while kick-out flashing redirects runoff at the lower termination.

A Z-shaped cap is generally associated with horizontal interruptions such as trim or decorative bands. Use the approved roof-wall detail for the selected roofing, siding, WRB, and flashing systems.

Should the gap below siding flashing be caulked?

Only if the approved detail specifically requires it. Many flashing details need an open route beneath siding or trim so water can escape. Filling that opening may trap water behind the cladding.

Identify the function of the gap before sealing it. Product-specific instructions determine which joints receive sealant and which must remain open.

Can flashing tape replace formed metal flashing?

Not as a universal rule. Flashing tape can form part of an approved sill pan, connect opening flanges to the WRB, treat corners, or supplement another component where the selected system permits.

It should not automatically replace a formed cap, Z-flashing, step flashing, or kick-out. Formed flashing supplies geometry—a projecting edge, slope, roof-course integration, or runoff diverter—that a flat strip of tape may not reproduce.

How can failed flashing behind existing siding be identified?

Begin with visible patterns: staining near windows, corners, seams, penetrations, trim, or roof-wall junctions; deteriorated sealant; damaged siding; and recurring moisture after rain. Inspect gutters, roofing transitions, openings, and penetrations rather than assuming the nearest visible defect is the source.

These signs are not conclusive because water can travel before appearing. Confirming failed concealed flashing may require selective removal of siding or trim to inspect its slope, laps, condition, and connection to the WRB. A surface-only repair should not be promised until the hidden drainage path has been evaluated.

The final decision framework is simple: identify the wall condition, select the flashing approved for that condition, and trace water from the upper drainage layer to its exterior outlet. Correct every reverse lap, inward slope, missing connection, and blocked drainage route before the wall is covered.

Names such as Z-flashing, flashing tape, and pan flashing describe categories rather than universal details. Current product instructions and locally adopted requirements determine the materials, dimensions, clearances, and sequence for the particular wall.
