How to Match Rake Trim to Your Roof Before You Order

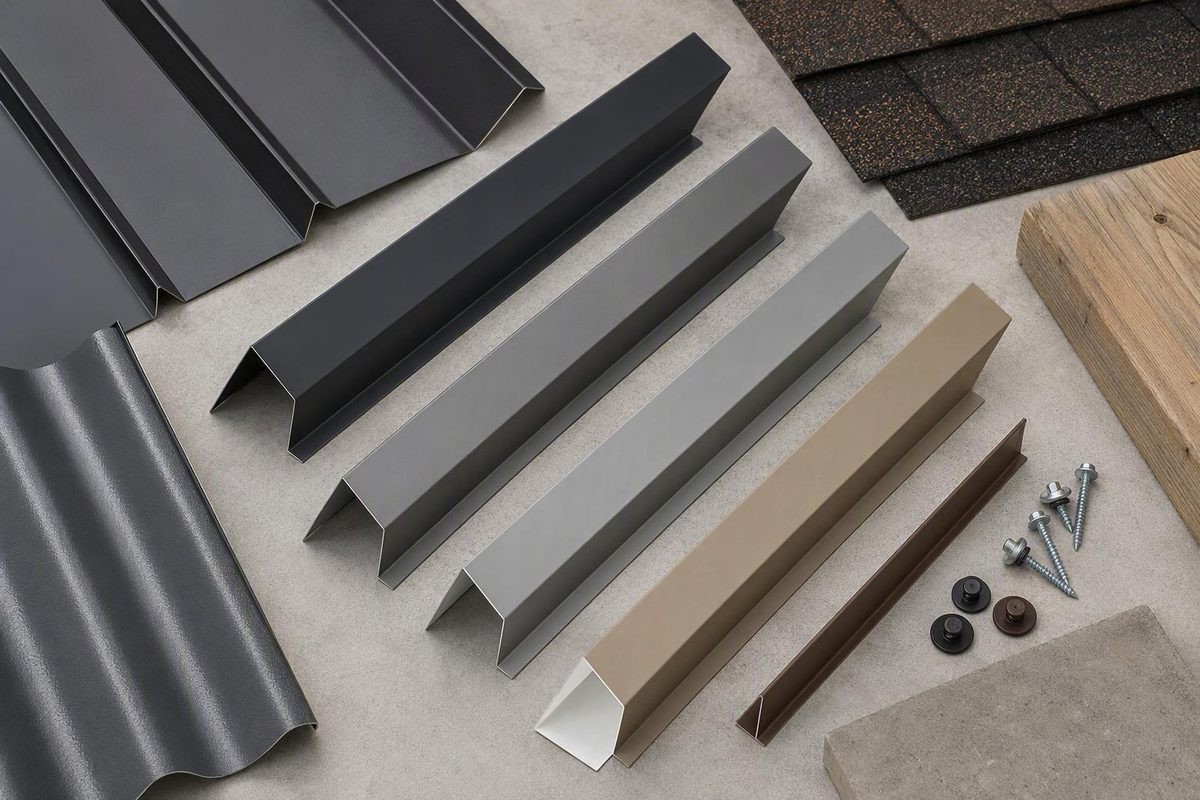

Metal roofing gable end trim is commonly sold as gable trim, rake trim, or gable flashing. Those names identify a location and general purpose—not a universal profile.

The safest buying sequence is to identify the roof system first, obtain its current gable-edge detail, and then compare products. Do not begin with color, price per foot, or a generic installation video.

This guide explains what to record, how to distinguish related components, how to estimate purchasing quantities, and why published laps and fastener spacing differ. It provides general reference information rather than a project-specific installation, safety procedure, or engineering design.

Reviewed August 19, 2026. Product availability, prices, and manufacturer instructions can change; recheck the cited pages and the documents supplied for your roof before ordering.

What gable-end trim is—and where it belongs

Gable-end trim is formed metal flashing installed along a roof’s sloped gable edges, also called rake edges. This is where the edge of the roof panels meets an end wall, fascia, or comparable exterior face. Manufacturers and fabricators commonly use gable trim, rake trim, and gable flashing for this component.

On a conventional gable roof, two rake edges run upward from the low eave to the ridge. The horizontal lower edge is the eave, so it normally receives an eave-specific detail rather than gable trim.

The observable functions of gable trim include:

• Covering exposed panel edges.
• Finishing the junction between roof panels and the end-wall or fascia area.
• Providing a formed exterior face.
• Connecting the roof edge to the specified attachment or support detail.
• In some profiles, providing a hem, drip edge, or bottom kick-out intended to direct runoff away from the wall.

Here is a conceptual orientation diagram, not a profile drawing or fabrication detail:

                         RIDGE
                           ▲
/ \
RAKE ───── / ───── RAKE
/ \
/ roof \
/ panels \
/___________\
                         EAVE
                 horizontal low edge

                 GABLE WALL / END WALL

A simplified conceptual section through one rake might look like this:

                 roof slope
                      ↘
       metal panel  ______________
panel edge
\____________
                       ┌────────────  roof-side flange
                       │
                       │ exterior face
                       │
                       └── hem / possible kick-out
                           ↘ away from wall

                       gable wall or fascia

Conceptual only: The roof-side flange, exterior face, hem, and kick-out may be larger, smaller, absent, doubled, clipped, or supported differently in the actual product. Never use this illustration to fabricate trim.

Gable trim is only one part of an edge assembly. It should not be treated as a stand-alone guarantee of watertightness, wind resistance, roof longevity, warranty coverage, or compliance with requirements applicable to the project. Those questions must be resolved through the complete panel, flashing, substrate, attachment, seal, closure, and transition details selected for the roof.

Gable trim, rake trim, box rake, and related parts

In everyday product descriptions, gable trim and rake trim are often interchangeable names. Compatibility, however, is determined by geometry and application—not vocabulary.

A standard-looking gable trim may have a roof-side flange and a vertical exterior face. Another may wrap a fascia, clip onto a continuous cleat, connect to Z-trim, or close a deep commercial panel profile. These are different assemblies.

Do not confuse rake trim with the following components:

• Eave trim: Finishes the horizontal low edge of the roof.
• Ridge cap: Covers the meeting point of opposing roof slopes.
• Corner trim: Finishes an outside or inside wall corner.
• J-channel: Receives or terminates siding or another component where a selected detail calls for it.
• Z-trim: A formed support or attachment component used in certain assemblies.
• Parapet rake trim: Handles a roof-to-parapet or roof-to-wall transition.
• End caps and spacer caps: Close the ends of certain sculptured or proprietary trim profiles.
• Supports: Reinforce or position trim where the named system requires them.
• Closures or gaskets: Fill selected panel-profile openings beneath a flashing or cap.

Likewise, box rake and sculptured rake identify particular formed profiles. They are not universal upgrades or substitutes for ordinary residential gable trim. MBCI, for example, assigns separate box rake parts to its named 7.2, PBR, and PBU panel systems. Its catalog also separates exposed-fastener, concealed-fastener, and standing-seam trim categories, demonstrating why the roof-system family matters during selection (review MBCI’s rake and corner trim catalog).

Commercial steel-building catalogs can be more specialized. Nucor lists sculptured rake trim, parapet rake trim, left- and right-hand parapet end caps, rake extension spacer caps, rake caps, and a support for a floating-roof application. The catalog’s separate part numbers reinforce that the complete assembly may involve more than one trim piece.

Fabricators may also separate products by proprietary panel profile. One catalog assigns sculptured gable trims to EMax and PBRMax profiles, gable-rake products to VMax, and a separate gable-rake option to standing-seam profiles. The catalog placement of J-channel and rake components in the same product family does not make those parts interchangeable.

The purchasing lesson is simple:

A shared name, similar photograph, matching paint color, or identical gauge does not establish compatibility.

The correct product must match the named panel and its edge assembly. If a seller cannot provide a profile drawing or identify the intended panel application, treat the listing as incomplete until the panel manufacturer or fabricator confirms the fit.

The compatibility decision tree to use before shopping

Begin by classifying the roof. This first decision narrows the relevant trim family and helps prevent an exposed-fastener detail from being transferred to a roof designed for concealed attachment.

1. Identify the roof-system family

Choose the closest category:

1. Exposed-fastener panel system Panel fasteners remain visible. Examples may include corrugated, R-panel, PBR-style, and other through-fastened profiles.

2. Concealed-fastener or standing-seam system The main panel attachment is concealed. A named rake assembly may use clips, cleats, Z-trim, rivets, or another specified method.

3. Proprietary prefabricated steel-building system The trim may connect roof panels to end-wall panels and may require profile-specific caps, supports, or handed parts.

Do not infer the category from appearance alone. Instead, identify the panel from documents, labels, or manufacturer drawings.

2. Record the panel identity

Look for:

• Panel manufacturer.
• Exact panel profile or series.
• Panel installation manual.
• Building-kit documents.
• Purchase invoices or material schedules.
• Labels, packaging, or panel stamps.
• Existing trim part number.
• Approved gable-edge drawing or detail number.
• Drawing date or revision.

For an unknown existing roof, do not order from an approximate rib measurement and a color sample alone. Search the original paperwork, ask the building supplier, compare the panel with official manufacturer drawings, and have the physical profile identified before placing a custom order.

3. Confirm roof geometry

Measure and record:

• Roof pitch.
• Sloped rake length on each side.
• Eave overhang.
• Ridge condition.
• Fascia or end-wall depth.
• Whether the end wall is square to the roof.
• Any unequal pitches, flared edges, parapets, or reroof overlays.

Roof pitch can affect cuts and folds at the eave and ridge. Western States’ WS-16-UGF listing requires customers to provide roof pitch but does not supply a universal pitch value. Its parts list is also specific to a named corrugated flashing rather than generic trim (see the WS-16-UGF product and parts information).

4. Identify the receiving face and attachment target

The exterior trim face might attach to wood fascia, a metal end-wall panel, framing, a cleat, or another specified component. The selected detail should identify the fastener and target.

For example, the WS-16-UGF parts list distinguishes between face fasteners for wood and metal. That does not establish a general fastener rule; it shows why the receiving material must be recorded before ordering accessories.

Do not assume an existing hole or convenient surface is an approved attachment point. Ask the manufacturer or project professional to confirm:

• Where fasteners may be placed.
• What material they must penetrate.
• Whether panel penetration is permitted.
• Whether a cleat or Z-trim is required.
• Whether blocking or another support is part of the detail.

5. Complete a pre-order worksheet

Treat compatibility with fasteners, seals, substrates, coatings, and site exposure as a set of questions requiring written confirmation—not as something that can be determined from a general article.

6. Apply a verification hierarchy

When documents disagree, use the following as a practical verification order:

1. Project-specific engineered detail, where one has been issued.
2. Current panel-manufacturer instructions and approved drawings.
3. Warranty documents and requirements identified for the project.
4. General educational material.

Pause routine purchasing when the project involves high-wind design, unusual framing, coastal salt, agricultural or chemical exposure, treated lumber, parapets, floating-roof details, reroof overlays, damaged framing, or visibly non-square geometry. The evidence reviewed here does not provide universal material or attachment solutions for those conditions, so ask the selected manufacturer or an appropriately qualified project professional to review them.

Dimensions, gauge, finish, color, and length

Read every listing as a bundle of attributes:

Profile or part number + dimensions + length + material + gauge + finish + color + named panel application

If a critical element is missing, the listing may still help with preliminary shopping, but it is not enough to prove fit.

A retail example shows why. As reviewed August 19, 2026, Lowe’s listed Metal Sales model 4220941LW as 6.313 inches wide, 126 inches long, Galvalume, and standard 29 gauge. The page identifies it as a gable finishing piece but does not supply the full fastening, lap, sealing, or panel-compatibility instructions needed to transfer it to an arbitrary roof (see the Metal Sales retail listing).

A custom-length seller uses a different purchasing format. As reviewed August 19, 2026, Southeastern Building Products listed “GABLE/RAKE TRIM STANDARD 12.001” with selectable 26- and 29-gauge option labels and custom cuts from 6 to 20 feet. Customers wanting a standard 10-foot product were directed to another catalog section. The page did not include a complete profile drawing or system-specific installation instructions (review the Standard 12.001 options).

Proprietary commercial products may use less familiar formats. Nucor’s catalog listed sculptured rake trim in 10-foot-1-inch and 20-foot-2-inch pieces, with the displayed online products limited to 26 gauge and buyers directed elsewhere for alternatives. Those dimensions belong to the named commercial parts; they are not market-wide standards (see Nucor’s rake and gable component catalog).

MBCI’s catalog filters included 24, 26, and 29 gauge and numerous colors and finishes when reviewed August 19, 2026. A filter only means the catalog can be narrowed by that attribute; it does not prove that every profile is manufactured or stocked in every possible gauge, color, and finish combination.

What gauge does—and does not—tell you

Gauge is one product attribute. It does not, by itself, determine:

• Profile fit.
• Flange geometry.
• Structural adequacy.
• Fastener schedule.
• Wind performance.
• Interchangeability with existing trim.
• Suitability for a concealed-fastener assembly.

The underlying material must also be identified.

Treat finish and color as technical order fields

When replacing trim, request the exact manufacturer color and finish designation where possible.

Ask the relevant panel, trim, fastener, and seal-product suppliers to confirm whether the proposed combination is suitable for the project substrate and exposure. Do not infer that compatibility from color or gauge alone.

Some catalogs attach labels such as “10-year,” “20-year,” or “40-year” to product options. Do not interpret those labels as equivalent performance promises without the applicable warranty document, coverage terms, exclusions, substrate information, and maintenance conditions.

Before ordering custom trim, obtain the actual profile drawing and verify every leg, return, hem, angle, and kick-out dimension. Before cutting stock trim, compare the delivered piece with both the physical panel edge and the approved drawing.

How to estimate trim quantity and total purchasing cost

Quantity planning starts with the measured sloped rake—not the building width or horizontal eave length.

For each gable edge, record:

• Measured sloped rake length.
• Selected stock or custom piece length.
• Required lap at each intermediate joint.
• Eave-end forming allowance.
• Ridge-end forming or meeting allowance.
• Number and position of cuts.
• Whether offcuts can be reused.
• Shipping or handling limits on long pieces.
• A project-specific contingency for likely damage or unusable cuts.

A planning method

Avoid a universal formula because lap and end-forming dimensions differ by assembly. Instead:

1. Enter the full measured rake length.
2. Add the eave and ridge allowances from the controlling detail.
3. Select the purchasable piece length.
4. For every piece after the first, subtract the specified lap to determine its usable contribution.
5. Lay out whole pieces until their combined usable coverage reaches the required run.
6. Round up to whole purchasable lengths.
7. Repeat for the opposite rake instead of assuming it is identical.
8. Review whether an offcut can serve the other side without violating joint-location or forming requirements.

Use a worksheet such as this:

Nominal piece length is not always usable coverage. Every intermediate joint consumes material, and eave or ridge forming may require material beyond the visible straight run. A 10-foot piece therefore should not automatically be entered as 10 feet of installed coverage.

Do not apply an arbitrary waste percentage merely because it appears in a generic calculator. Review the actual cuts, laps, short remnants, complex end forms, handling risks, custom-length availability, and delivery constraints.

Compare purchasing formats, not assumed standards

Purchasing formats documented in the reviewed listings include:

• Approximately 10-foot retail pieces.
• Custom pieces cut from 6 to 20 feet.
• Longer proprietary commercial-system pieces.
• Separate caps, supports, cleats, and spacer components.

The lowest price per nominal foot is not necessarily the lowest package cost.

Build a complete budget

Treat online prices as dated, product-specific snapshots. As reviewed August 19, 2026, Southeastern displayed $1.44 per foot for one custom product, but its final configuration depended on entered length, quantity, and selected options. Lowe’s did not display a universal current price and made pricing and availability location-dependent. Nucor showed a mixture of visible ranges, prices marked “TBD,” and ZIP- or account-dependent purchasing conditions.

An undated contractor page also mentioned approximately $20–$25 for a 10-foot piece. That figure lacks sufficient date, location, profile, material, finish, freight, and accessory context to serve as a current market average (see the page carrying the historical estimate).

Include the following where the selected assembly requires them:

• Trim pieces.
• Custom cutting or fabrication.
• Screws or rivets.
• Sealing washers.
• Tape seal or butyl tape.
• Approved sealant.
• Profile closures or gaskets.
• Cleats and Z-trim.
• End caps, spacer caps, or supports.
• Packaging and freight.
• Sales tax.
• Color-matching charges.
• Replacement or damage contingency.

Compare quotes by the total usable material package for the selected detail, not headline price per foot. A quote for bare trim cannot be compared directly with one that includes custom forming, specified fasteners, seals, caps, and delivery.

Why exposed-fastener and standing-seam details diverge

The same installation approach should not be transferred unchanged between exposed-fastener and concealed-fastener roofs.

A named exposed-fastener detail may permit screws through designated portions of the trim and panel assembly. A concealed-fastener detail may instead use a cleat, sealed Z-trim, and rivets positioned to avoid penetrating the underlying panel.

At a high level, an exposed-fastener workflow may involve:

1. Verify the approved edge detail.
2. Measure the rake and roof pitch.
3. Test-fit the profile.
4. Mark and form the eave termination.
5. Mark and form the ridge termination.
6. Position the specified tape, seal, or closures.
7. Create the required intermediate laps.
8. Fasten only in approved zones and into the required target.
9. Complete the ridge meeting detail.

Those stages describe a sequence, not universal dimensions.

Western States publishes one exposed-fastener method for 7/8-inch corrugated, R Panel, and 7.2 Panel applications. Its guide specifies a 3-inch lap, named butyl placement, and 1/4-by-7/8-inch lap screws at 12 inches on center. Those figures belong to that method and should not be carried automatically to another roof (read the named exposed-fastener guide).

ABC’s SL-16 instructions demonstrate a different distinction within one named roofing system. The exposed example directly fastens the trim, while the concealed example uses a continuous cleat, Z-trim, tape seal, and color-matched 1/8-inch pop rivets. ABC also cautions installers not to drill through the underlying panel when riveting the gable trim to the outer leg of the Z-trim (compare ABC’s SL-16 rake details).

Conceptually, the arrangements differ as follows:

DIRECT-FASTENED CONCEPT
Named example type: exposed-fastener assembly

        roof panel
  ______________________
           tape/seal
  ======================
  ┌─────────────────────  roof-side trim flange
  │        ● fastener into approved target
  │
  │ exterior trim face
  └── hem or drip edge

NOT A FABRICATION DRAWING.
Use only the current detail for the selected panel and trim.

CLEAT-AND-Z-TRIM CONCEPT
Named example type: ABC SL-16 concealed arrangement

      gable trim
  ┌──────────────────────
  │          • rivet into outer Z leg
  │       ┌──────── Z-trim
  │       ═ tape seal
  └──hem ↪ continuous cleat

  _______________________ underlying roof panel
        do not infer permission to drill through panel

NOT A FABRICATION DRAWING.
Dimensions, seal locations, and attachment targets must come
from the current ABC detail for the applicable SL-16 assembly.

Eave corners, intermediate laps, and ridge meeting points deserve explicit manufacturer details. They are formed transitions rather than straight trim runs, and a generic sketch rarely communicates every cut, relief, fold, tab, seal, and overlap required by a particular assembly.

Fasteners, laps, tape, and sealant: compare systems, not isolated numbers

Published values conflict because they describe different profiles and assemblies. They should not be averaged. The source-specific details below were checked against the linked pages on August 19, 2026; current instructions for the selected product still control.

These values do not combine into a “typical” specification. A 12-inch schedule and a 24-inch schedule may both be correct within their named assemblies. Likewise, the documented lap values do not establish a safe average.

Copy or confirm the following from the current controlling drawing:

• Approved fastener type.
• Diameter and length.
• Washer or rivet requirements.
• Required penetration target.
• Permitted fastening zones.
• Edge distances, if specified.
• Spacing.
• Intermediate-joint lap.
• Lap orientation.
• Tape type and exact location.
• Sealant type and location.
• Closure or gasket profile.
• Eave and ridge termination details.

Tape, sealant, closures, and gaskets may complement correctly fitted and layered trim. Do not assume exposed sealant can cure a profile, lap, support, or attachment arrangement that differs from the selected manufacturer detail.

Final pre-order and pre-cut verification checklist

Before paying for trim, confirm the following.

Roof and panel identity

• [ ] Exact panel manufacturer.
• [ ] Exact profile or panel series.
• [ ] Exposed-fastener, concealed-fastener, or proprietary steel-building classification.
• [ ] Approved trim name and part number.
• [ ] Current drawing or detail revision.
• [ ] Roof pitch.
• [ ] Field-measured rake lengths.
• [ ] Substrate and receiving face.
• [ ] Required attachment target.

Trim specification

• [ ] Profile dimensions.
• [ ] Roof-side flange geometry.
• [ ] Exterior face depth.
• [ ] Hem, return, drip edge, or kick-out.
• [ ] Material and gauge.
• [ ] Coating or finish.
• [ ] Exact color designation.
• [ ] Purchasable length.
• [ ] Written confirmation of panel compatibility.
• [ ] Manufacturer confirmation for the proposed fasteners, seals, substrate, and site exposure where needed.

Installation-detail inputs

• [ ] Required lap and lap orientation.
• [ ] Eave termination and corner fold.
• [ ] Ridge meeting detail.
• [ ] Caps, cleats, Z-trim, spacer caps, or supports.
• [ ] Closure or gasket requirements.
• [ ] Seal locations.
• [ ] Fastener or rivet type.
• [ ] Approved fastening zones.
• [ ] Spacing and penetration target.

Quantity and quote

• [ ] Both rake runs laid out against actual purchasable lengths.
• [ ] Laps deducted from usable coverage.
• [ ] Eave and ridge forming allowances included.
• [ ] Cuts and usable offcuts reviewed.
• [ ] Handling damage and replacement contingency considered.
• [ ] Custom cutting included or priced separately.
• [ ] Packaging and freight included.
• [ ] Screws, rivets, and sealing washers included.
• [ ] Tape, sealant, closures, caps, and supports included.
• [ ] Taxes included.
• [ ] Color matching and lead time confirmed.

Do not make the first cut until the delivered trim has been checked against the physical panel edge and approved profile drawing.

Stop and escalate when

Pause the order or work if:

• The panel profile remains unknown.
• The current manufacturer drawing cannot be obtained.
• Existing and proposed details conflict.
• The roof or end wall is out of square.
• Framing or fascia is damaged.
• The attachment point is ambiguous.
• A concealed-panel movement or attachment detail is unclear.
• The project has specific wind-design requirements.
• The roof includes a parapet, overlay, unusual pitch transition, or floating-roof assembly.
• The proposed trim would require panel penetrations not shown in the controlling detail.

This article is not a roof-access, fall-protection, or sheet-metal-handling procedure. Before beginning roof-edge work, determine which safety rules, access methods, protective equipment, and qualified assistance apply to the job. If that cannot be established, do not proceed from a general trim guide.

The buying decision should end with a matched system, not merely a matching color or gauge. Identify the panel and fastening method, obtain the current gable-edge detail, verify the physical profile and roof pitch, enter the specified laps and forming allowances into the quantity worksheet, and price the complete trim-and-accessory package.

Mortar Desk is an independent general-reference publisher, not a contractor or engineering adviser. Specifications change and project requirements vary, so check this information against current manufacturer documents, project-specific details, and requirements identified for the job (about Mortar Desk’s reference role).

Frequently asked questions

Are gable trim and rake trim the same thing on a metal roof?

They are often interchangeable names for flashing along the sloped gable edge. Some sellers also use gable flashing.

The shared terminology does not mean every product has the same geometry or fits every panel system. Match the part number, profile dimensions, attachment method, and named panel application rather than relying on “gable” or “rake” in the title.

Can exposed-fastener gable trim be used on a standing-seam roof?

Not unless the standing-seam panel manufacturer’s current detail identifies that assembly.

An exposed-fastener profile may be intended for direct screws through designated zones, while a concealed arrangement may use a continuous cleat, Z-trim, tape seal, and rivets attached without penetrating the underlying panel. Select trim from the correct roof-system category and follow the drawing for that panel.

How far should gable-trim pieces overlap, and how far apart should the fasteners be?

There is no universal lap or spacing. The reviewed sources publish materially different figures for different panels, trim profiles, attachment targets, and sealing arrangements.

Use the current drawing to determine fastener type, penetration target, fastening zone, spacing, lap, lap orientation, and seal location. Do not average values taken from unrelated guides.

What lengths and gauges are available for metal-roof gable trim?

Availability depends on the product and ordering channel. Reviewed listings included approximately 10-foot retail formats, custom cuts from 6 to 20 feet, and proprietary commercial pieces longer than 20 feet. Cataloged gauge options also varied by profile and seller.

A catalog filter or selectable option does not prove that every length, gauge, finish, color, and profile combination is available. Confirm the exact configuration before requesting a final quote.

Can J-channel be substituted for purpose-made gable or rake trim?

Not as a general rule. J-channel and rake trim are distinct components, even when a proprietary catalog lists both within one panel-system family.

Use J-channel only where the selected manufacturer detail calls for it. Do not assume that an improvised combination of J-channel, screws, and exposed sealant can replace a purpose-made rake assembly or its specified attachment and movement details.
