How to Choose a Concrete Lintel Without Guessing From Its Size

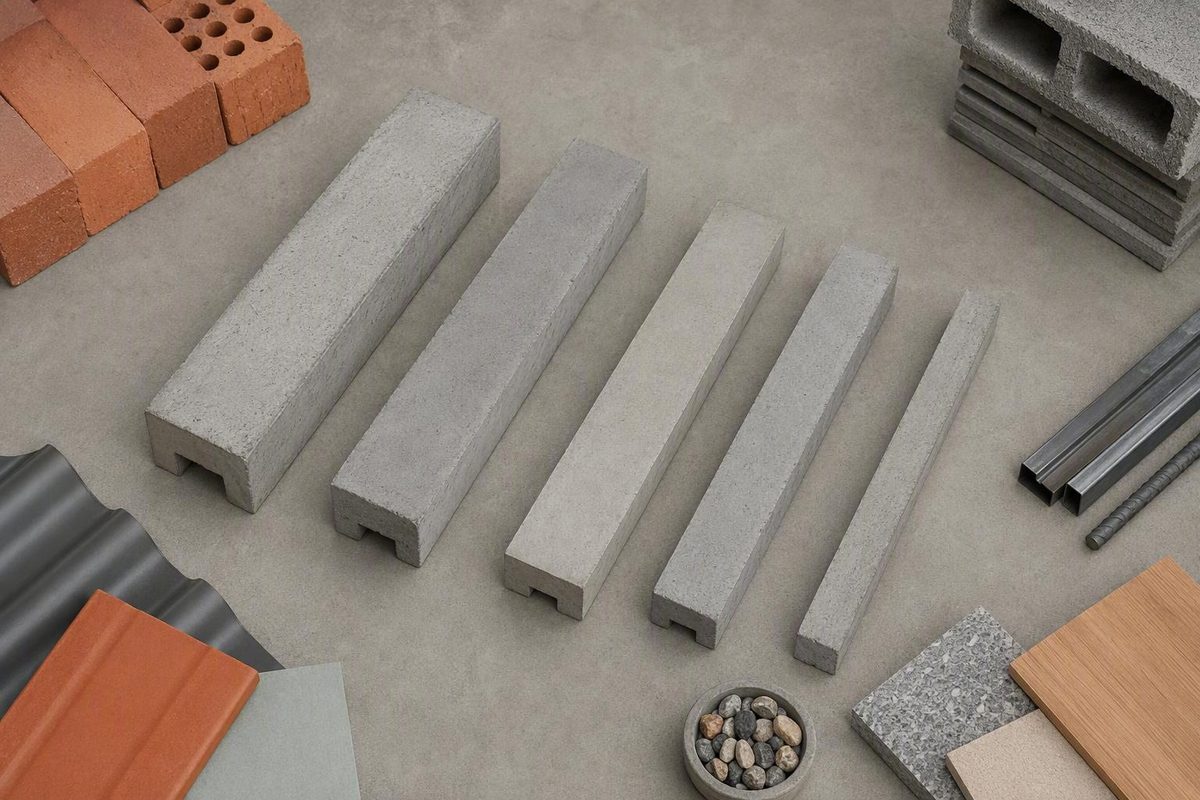

A precast concrete lintel may look like a simple rectangular unit, but length is only one part of its specification. Two lintels with the same visible dimensions can have different reinforcement, concrete properties, load tables, orientation requirements, deflection behavior, and installation instructions.

A reliable preliminary selection has two separate gates:

1. Geometric and construction fit: Does the unit suit the opening, required end bearing, supported masonry width, wall construction, exposure, and available depth?
2. Structural verification: Does the exact product satisfy the assigned loads, bearing, strength, deflection, handling, orientation, and installation requirements?

Passing the first gate does not mean the lintel passes the second.

For quick navigation:

• Understand the lintel’s load path
• Compare lintel configurations
• Record the necessary dimensions
• Apply the two-gate selection process
• Check a manufacturer load table
• Prepare a supplier inquiry

Mortar Desk publishes general building-material reference information rather than project-specific specifications.

As explained on its About page, it is not a contractor and does not provide engineering advice. Creating, widening, or repairing a structural opening belongs with the appropriate licensed trade and responsible structural professional, working to the locally adopted code.

What a precast concrete lintel does

A lintel is a horizontal structural member spanning an opening in a wall. Openings may be for doors, windows, fireplaces, ventilators, service penetrations, or access panels.

Structurally, a lintel behaves as a beam. It supports the wall above the opening and any additional loads assigned to it, then transfers those loads to the supporting masonry at both ends. The Concrete Masonry and Hardscapes Association describes this function in its lintel design manual.

The basic load path is:

Supported masonry and other assigned loads → lintel → end-bearing areas → supporting masonry below

The clear opening is the unobstructed distance between the two sides of the opening. It excludes the portions of the lintel resting on the wall. Those resting portions are the end bearings, and the masonry beneath them is part of the structural system.

Depending on the building layout, the lintel may have to carry or resist:

• Masonry self-weight
• Floor or roof reactions
• Roof-truss reactions
• Concentrated forces
• Wind effects
• Snow loads
• Construction-stage loads
• Loads applied before surrounding masonry has cured
• Handling, storage, lifting, and placement stresses
• Loads associated with temporary support

Not every action applies to every opening. The load path also cannot be established simply by looking at what appears to be directly above the lintel. The responsible designer determines which parts of the building load the lintel and how those forces must be represented.

Removing masonry, enlarging an opening, or replacing an existing lintel is structural work. Project drawings, current information for the selected product, site conditions, and the code edition adopted locally must govern the work.

Solid, U-shaped, composite, and prestressed lintels compared

“Concrete lintel” describes a broad material category, not one interchangeable product. The configuration affects how the lintel works, what must be completed on site, and which manufacturer data apply.

A solid reinforced lintel is a factory-cast beam containing embedded steel. The reinforcement is normally concealed, so appearance does not reveal the number, size, grade, position, anchorage, or concrete cover of the bars. One nominal 6 × 8 in. unit is therefore not necessarily equivalent to another product with the same label.

A U-lintel contains a longitudinal channel. The channel may receive specified reinforcement and grout where the engineered design calls for them. When designed and constructed as a complete system, the filled U-lintel and associated masonry may form a composite reinforced beam or bond-beam element.

Some manufacturer-specific designs may permit a U-lintel to be used unfilled. That does not make filling optional at the installer’s discretion. Reinforcement, grout, shoring, masonry bond, curing, and the time at which loads may be applied are related design assumptions.

A prestressed lintel is a separate product category. For example, a May 2015 Cast-Crete catalog listed selected prestressed U-lintels at lengths exceeding 20 ft, but those historical listings are product-specific and do not establish current availability or a universal span advantage. The same catalog describes its composite system in its technical literature.

Plain concrete is worth distinguishing from reinforced precast concrete, but the existence of plain concrete lintels does not establish that an unreinforced unit is suitable for a particular opening.

The decision rule is straightforward:

Choose the lintel configuration from the wall system and engineered load path—not from a preference for solid, hollow, reinforced, or prestressed concrete.

Dimensions decoded: opening, span, length, bearing, and wall width

Several dimensions that sound similar describe different parts of the opening. Record each one separately before searching a catalog.

ELEVATION — OPENING AND LINTEL

        <---------------- Overall lintel length ---------------->
        ┌───────────────────────────────────────────────────────┐
        │                    PRECAST LINTEL                     │
        └───────────────────────────────────────────────────────┘
        <--- Left ---><---------- Clear opening ----------><-- Right -->
           bearing                                          bearing

        ████████████                                   ████████████
        Supporting                                     Supporting
        masonry                                        masonry

             ↑                                               ↑
        Support or reference points used to define the design
        span. Confirm the selected table's span convention.

        <-------------------- Design span -------------------->


CROSS-SECTION — THROUGH THE WALL

        <----------- Total wall thickness, if applicable ----------->
        ┌──────────────┬───────────────────────┬────────────────────┐
        │ Other wythe, │ Cavity, insulation,  │ Supported masonry  │
        │ lining, etc. │ or other component   │ wythe              │
        └──────────────┴───────────────────────┴────────────────────┘
                                               <--- Wythe width --->

                                               ┌────────────────────┐
                                               │       LINTEL       │ ↑
                                               │                    │ │ Actual
                                               └────────────────────┘ ↓ height
                                               <--- Actual width --->

        Nominal cross-section = product or catalog designation
        Actual cross-section  = manufactured dimensions within
                                the stated tolerances

Clear opening and overall length

The clear opening is the gap to be bridged. The overall lintel length includes that opening plus the portions resting on the supports.

For preliminary geometry:

Overall length = clear opening + left bearing + right bearing

For example:

48 in. + 4 in. + 4 in. = 56 in.

A 48 in. clear opening with a preliminary allowance of 4 in. at each end therefore gives a 56 in. search length. This is only arithmetic for identifying possible products. It does not prove that 4 in. is adequate, that a 56 in. lintel has sufficient capacity, or that the supporting masonry can accept the reactions.

CMHA guidance specifies a modular length of at least the clear span plus 8 in., providing at least 4 in. of bearing at each end. It also states that the lintel width—or the combined width of approved side-by-side lintels—should equal the supported masonry wythe. These are preliminary principles, not universal approval; current product data, structural drawings, substrate conditions, the designer, and local requirements govern the final dimensions. See CMHA’s precast lintel guidance.

Design span is not always the visible opening

The design span is the span used in the structural calculation or manufacturer’s table. Depending on the documented method, it may be defined using the clear span, an effective span, or specified support reference points.

Do not silently substitute the visible opening for the span stated in a load table. Confirm:

• How the manufacturer defines span
• Whether the listed length is overall or clear
• Which support points the table assumes
• How the stated bearing corresponds to the project

Lintel width and supported wythe

A wall can contain several structural and nonstructural layers:

• Inner and outer masonry wythes
• A cavity
• Insulation
• Cladding
• Interior lining
• Air and moisture-control components

The relevant lintel width is linked to the masonry wythe being supported, not automatically to the total thickness of every wall component.

If side-by-side lintels are proposed, the designer must establish that the arrangement, bearing, and load distribution are acceptable.

Catalog dimensions are supplier-specific

Catalog sizes are product examples, not an industry-wide capacity chart. York lists solid sections of 4 × 8, 6 × 8, and 8 × 8 in.; U-sections of 6 × 8 through 12 × 8 in.; and lengths from 2 to 12 ft for those product families. These live commercial listings were accessed August 13, 2026, and should be confirmed before ordering on York’s concrete lintel product page.

Retail ranges can differ. Extech’s category page, accessed August 13, 2026, listed 4 × 8 and 6 × 8 in. products in lengths from approximately 32 to 144 in. The page did not provide structural capacities, so its retail lintel listings are procurement leads rather than engineering tables.

Historical manufacturer literature has also listed prestressed U-lintels longer than 20 ft. Longer products can introduce different capacity, deflection, weight, lifting, transport, access, and bearing considerations. They should not be treated as merely extended versions of shorter solid units.

Nominal versus actual cross-section

A nominal dimension may be a product name rather than an exact measurement. One seller states that its nominal 6 × 8 in. lintel is 3/8 in. smaller in both width and height to accommodate mortar. That is an attributed example from a specific product page, accessed August 13, 2026—not a rule for other lintels. Confirm the selected product’s actual dimensions and available lengths.

Before ordering, obtain:

• Actual width and height
• Overall length
• Dimensional tolerances
• End details and notches
• Orientation marks
• Recesses, channels, or bearing details
• Unit weight

Coordinate masonry coursing, frames, openings, and finishes with the actual manufactured dimensions rather than only the nominal catalog label.

A two-gate selection process: fit first, capacity second

The safest way to narrow the market is to keep geometric fit and structural performance in separate columns.

Gate 1: geometric and construction fit

Record the following before searching for a product:

• Project location: Needed to identify the applicable code, exposure, and regional product availability.
• Wall construction: Solid wall, single-wythe masonry, multi-wythe wall, cavity wall, or another assembly.
• Supported masonry wythe: Identify its material and actual width.
• Clear opening: Measure between the intended supports.
• Required bearing: Obtain it from current product information, drawings, or the responsible designer.
• Proposed overall length: Add the approved left and right bearings to the clear opening.
• Available lintel depth: Coordinate it with masonry coursing, frames, and finishes.
• Exposure: Interior, exterior, sheltered, wet, freeze-thaw, or another specified condition.
• Configuration: Solid reinforced, U-shaped, composite, prestressed, or another designed system.
• Construction sequence: Include temporary support, grouting, curing, and when loads will be applied.

Gate 1 answers:

Could this product physically and constructively belong here?

It does not answer:

Can this product carry the assigned loads?

Gate 2: structural verification

For the exact manufacturer and product code, verify:

• Applicable load pattern
• Flexural strength
• Shear strength
• End bearing and support reactions
• Immediate deflection
• Long-term deflection
• Reinforcement or prestressing schedule
• Concrete properties
• Product orientation
• Handling and lifting conditions
• Construction-stage loading
• Shoring and composite-action assumptions
• Exposure and durability requirements
• Compatibility with current drawings and local requirements

Potential actions include masonry self-weight, floor or roof reactions, trusses, concentrated forces, wind, snow, and temporary construction loads. The responsible designer determines which apply and how they are combined.

A visible cross-section cannot independently establish capacity. Neither can:

• The number of visible or reported reinforcing bars
• Concrete compressive strength by itself
• The lintel’s weight
• Nominal width and depth
• A capacity from another manufacturer
• A worked example using similar dimensions
• The fact that the same length was used on another project

Concrete strengths and reinforcement schedules vary by product. The cited technical sources include product-specific values from 3,000 to 6,000 psi across different schedules and sections, so no value in that range is a universal precast-lintel specification. A 2021 design guide, for example, gives 3,000 psi in one overview and 5,000 psi in a particular U-lintel section; the conflicting applicability reinforces the need to match the exact product in the original design and installation guide.

Strength is not the only limit

A lintel may have adequate nominal strength yet deflect enough to affect masonry, finishes, frames, or glazing. The appropriate serviceability check depends on what the lintel supports and how vulnerable those elements are to cracking or distortion.

Long-term movement can exceed immediate elastic deflection because concrete behavior can include creep and shrinkage. The governing criterion must come from the applicable design basis, current product documentation, and project requirements—not from a generic span ratio copied from another example.

When to escalate the decision

Obtain qualified design review when any of the following applies:

• An opening is being created, widened, or structurally altered
• The opening is unusually long
• A floor, roof, or truss reacts near or above it
• A concentrated load is present
• The support material or bearing condition is uncertain
• Existing masonry is cracked, displaced, damaged, or deteriorated
• A product substitution is proposed
• A solid unit is proposed instead of a U-lintel, or vice versa
• A reinforced unit is proposed instead of a prestressed one
• Current manufacturer load data are unavailable
• The exact product code or orientation cannot be established
• Drawings, manufacturer instructions, and site conditions conflict

How to read a manufacturer load table without using the wrong number

A capacity value is usable only when the product, row, column, load case, and assumptions correspond to the proposed installation.

Before applying a value, match:

• Exact manufacturer
• Exact product name and code
• Lintel configuration
• Nominal and actual cross-section
• Reinforced or prestressed construction
• Overall length and defined design span
• Bearing requirement
• Assumed support condition
• Concrete strength
• Reinforcement or prestressing schedule
• Product orientation
• Filled, unfilled, or composite condition
• Shoring and curing assumptions
• Exposure and application restrictions

Match the load pattern

The total load is not enough. Its position and distribution affect moment, shear, reactions, and deflection.

Common table patterns include:

• Uniform load: Distributed over the relevant span
• Concentrated load: Applied at a point, such as a truss or beam reaction
• Partial-uniform load: Distributed over only part of the span
• Triangular load: Varies along the span, often under a stated masonry-loading model

The 2021 guide distinguishes uniform, concentrated, partial-uniform, and triangular loads in its manufacturer-specific tables.

Identify what the number represents

A table may report or rely on:

• Moment capacity
• Shear capacity
• Factored load
• Service load
• Uniform load per unit length
• Total allowable load
• End reaction
• Immediate deflection
• Long-term deflection
• A limit controlled by one of several checks

Do not assume these values are interchangeable.

Service loads generally represent working loads used for applicable serviceability checks. Factored loads are adjusted for strength design under the stated method. A factored capacity should not be casually compared with an unfactored service load, and passing a strength check does not establish that deflection is acceptable.

Conversion requires the correct span, structural model, support condition, and load pattern.

Do not borrow from a similar-looking product

Reject these shortcuts:

• Using another manufacturer’s table
• Using another section from the same manufacturer
• Using a reinforced schedule for a prestressed product
• Using a filled U-lintel value for an unfilled unit
• Using a composite value before the required system has been completed and cured
• Using a table based on different bearing or supports
• Treating a worked example as a reusable sizing rule

CMHA’s published worked example is specific to its assumed geometry, loads, materials, supports, and design provisions. The associated guidance principally references 1999-era ACI and masonry provisions. It can illustrate categories of checks, but it does not establish currently adopted requirements for a new project.

Document dates also matter. The evidence includes a CMHA manual revised in 2004, a manufacturer catalog dated May 2015, and a manufacturer guide dated 2021. Before procurement, retrieve the latest intact original table from the current manufacturer and compare its revision, referenced standards, and assumptions with the structural drawings and locally adopted code.

Masonry arching: when some load may bypass the lintel

Masonry arching is behavior through which qualifying masonry above an opening can redirect part of its load toward the sides instead of placing all of it on the lintel.

Arching is not an automatic property of every brick or block wall. Openings, joints, bond patterns, limited wall height, incomplete curing, or insufficient side masonry can prevent the assumed load path from developing.

A 2021 design and installation guide states that arching may be considered only when all of the following conditions are satisfied:

• [ ] The masonry is laid in running bond.
• [ ] The wall is complete and fully cured when the relevant loads are applied.
• [ ] The lintel has at least 4 in. of end bearing in the guide’s stated context.
• [ ] Sufficient masonry exists on both sides to resist horizontal thrust.
• [ ] No control joint, expansion joint, or other discontinuity is at or adjacent to the opening.
• [ ] There is room above the lintel for a 45-degree triangular arching zone.
• [ ] At least 8 in. of wall remains above the apex of that triangular zone.
• [ ] The architect or engineer accepts arching for the project.

These numerical and construction conditions come from the manufacturer-specific 2021 lintel guide. The PDF is hosted by Tidewater Block, while the extracted document identifies York Building Products, so users should resolve that document-identity ambiguity and obtain the current original directly from the manufacturer of the proposed product.

Every condition matters. Meeting the wall-height condition does not compensate for an adjacent control joint, inadequate side masonry, or uncured construction.

Even when that guide permits arching, the lintel remains assigned:

• Its own weight
• The masonry within the triangular zone
• Concentrated loads located within that zone

The guide says that some floor or roof dead and live loads above the triangular zone may distribute toward the sides under its assumptions. That is not a universal rule that floors and roofs bypass lintels. Geometry, discontinuities, concentrated reactions, and the rest of the structural system can change the load path.

The architect or structural engineer must decide whether masonry arching can be used. Assuming it without verification can underestimate demand and lead to selection of the wrong load pattern or lintel.

Installation, handling, and exterior-wall details

A structurally suitable lintel can still be compromised by damage, incorrect orientation, inadequate support, unauthorized modification, or failure to complete a composite system. Installation planning should begin before delivery.

Before delivery

Confirm:

• Exact manufacturer and product code
• Nominal and actual dimensions
• Dimensional tolerances
• Unit weight
• Delivery access
• Approved lifting method and lifting points
• Required equipment and personnel
• Storage supports and orientation
• Reinforcement or prestressing arrangement
• Marked top and required installed orientation
• End-bearing requirement
• Shoring and temporary-support plan
• Field reinforcement and grout, where applicable
• Current installation instructions
• Procedure for reporting and evaluating damage

Resolve weight, reach, delivery-vehicle position, floor capacity, lifting clearances, and personnel requirements before ordering.

Before placement

Inspect the unit under the manufacturer’s and designer’s acceptance procedure. Visible cracking, spalling, exposed reinforcement, impact damage, or deformation should be reported rather than repaired or accepted through an improvised site decision.

Confirm the marked top and required orientation before lifting the unit into place. Storage, handling, and placement can produce conditions different from those assumed in service, so the approved lifting method, support points, and installation direction must be followed.

Verify that the supporting masonry and bearing surfaces correspond to the structural drawings. Any bedding, packing, leveling, or repair method must come from approved construction documents or current written instructions rather than an improvised procedure.

During installation

Protect the lintel from impact, twisting, and uncontrolled point lifting. Install it in the required orientation and measure the actual bearing at both ends; visual centering does not establish adequate support.

For a composite U-lintel, coordinate all specified parts of the system:

• Field reinforcement
• Bar position, continuity, and development
• Grout
• Masonry bond and unit arrangement
• Shoring
• Construction sequence
• Curing
• Timing of applied loads and shore removal

Field cutting, drilling, or notching is not generally authorized. A May 2015 Cast-Crete catalog stated that certain U-lintels could be field cut, but that historical statement is not permission to alter another product—or necessarily a current version of the same product. The dated allowance appears in the manufacturer’s 2015 catalog.

Before concealment

Before masonry, finishes, or ceilings hide the work, verify and document:

• Product identification
• Correct orientation
• End bearing
• Condition after placement
• Level and alignment
• Specified reinforcement and grout
• Shoring status
• Required curing period
• Exterior coating or protection
• Flashing and drainage details
• Compatibility with approved drawings
• Resolution of substitutions or site discrepancies

Photographs taken before concealment can help document orientation, reinforcement, grout placement, and moisture details, but they do not replace required inspections.

For exterior construction, structural support and water management are separate but coordinated tasks. The lintel may require a specified coating or other exposure protection. A cavity-wall assembly may also require flashing or a cavity tray, stop ends, weep vents, and drainage paths.

A standard solid concrete lintel is therefore not automatically a replacement for a purpose-made steel cavity-wall lintel. The steel product may be shaped to support particular wythes while coordinating insulation and cavity drainage.

The merchant guidance commonly cited for cavity trays, stop ends, and weeps is UK-oriented. Its terminology, wall systems, approval routes, and moisture details should not be assumed to govern a project in another country. The general substitution warning remains useful, but the applicable details must be checked under the project’s jurisdiction and approved wall system. See the merchant’s concrete-versus-steel lintel discussion, accessed August 13, 2026.

Pre-purchase specification and supplier checklist

A useful supplier inquiry identifies the wall, geometry, loading information, and documentation required. It should not ask a salesperson to infer the structural load from the opening width.

Copy and adapt this template:

PRECAST CONCRETE LINTEL INQUIRY

Project name/reference:
Project location and jurisdiction:
Delivery address:
Site access or lifting restrictions:

Wall construction:
Masonry material:
Solid, single-wythe, multi-wythe, or cavity wall:
Supported masonry wythe width:
Total wall thickness:
Interior or exterior exposure:
Specified coating or protection:
Required fire-resistance documentation, if any:

Clear opening width:
Designer-required left bearing:
Designer-required right bearing:
Proposed overall lintel length:
Available lintel depth:
Required actual width:
Frame, coursing, or finish constraints:

Requested lintel configuration:
[ ] Solid reinforced
[ ] U-shaped
[ ] Composite reinforced and grouted
[ ] Prestressed
[ ] Quote only products matching attached design documents

Responsible designer's load information attached:
[ ] Uniform load
[ ] Concentrated load or reaction
[ ] Partial-uniform load
[ ] Triangular load
[ ] Masonry self-weight
[ ] Floor reaction
[ ] Roof or truss reaction
[ ] Wind or snow action
[ ] Construction-stage load
[ ] Arching expressly approved and documented

Please provide:
- Exact manufacturer and product code
- Nominal and actual dimensions
- Dimensional tolerances
- Concrete strength for this exact product
- Reinforcement or prestressing schedule
- Unit weight
- Marked installation orientation
- Approved lifting points and handling instructions
- Bearing assumptions and requirements
- Current load table and revision date
- Immediate and long-term deflection information
- Installation guide
- Shoring, reinforcement, grout, and curing instructions
- Applicable certifications
- Referenced standards and code editions
- Stock, special-order, and custom-fabrication status
- Delivery cost and lead time

Give the supplier defined loads

The responsible designer’s information should identify the applicable load pattern and any floor, roof, truss, or concentrated reactions.

“Lintel for a 48 in. opening” is not enough. The same opening might sit below a small amount of masonry, a floor reaction, a roof reaction, or a discontinuity that prevents masonry arching.

A supplier can identify products matching documented criteria. The supplier should not be expected to reconstruct the building load path from a photograph or opening dimension.

Request product-specific documentation

Ask for the exact:

• Product code
• Actual dimensions and tolerances
• Concrete strength
• Reinforcement or prestressing schedule
• Unit weight
• Orientation markings
• Approved lifting points
• Current load table
• Bearing assumptions
• Deflection information
• Installation instructions
• Shoring and grouting requirements
• Certifications
• Referenced design standards and editions

Check that every document applies to the quoted product code rather than merely to a similar product family.

Treat fire ratings as product-and-assembly information

If fire resistance is required, request:

• Product type
• Lintel thickness
• Test or calculation standard
• Standard edition
• Listing, report, or approval reference
• Required concrete cover and reinforcement details
• Conditions of the complete wall assembly
• Confirmation that the quoted product is included

York lists manufacturer-specific ratings under ACI 216.1-14/TMS 216-14 that vary by lintel type and thickness, from one hour for selected thinner products to three hours for selected larger U-lintels. Those live York fire-rating examples, accessed August 13, 2026, do not establish the rating of another manufacturer’s lintel or independently prove the rating of a complete wall assembly.

Separate stock, special order, and custom fabrication

Ask the supplier to classify each option clearly:

• Stock length: Normally held at the relevant branch or plant, subject to confirmation.
• Special-order length: Listed by the manufacturer but not normally stocked locally.
• Custom fabrication: Produced for the project and potentially subject to drawings, minimum quantities, lead time, or approval.

Online inventory is only a snapshot. A listed length may be unavailable locally, while a product shown as out of stock may be obtainable from another facility or by special order. Do not reduce bearing or redesign the opening merely to fit current retail stock.

Displayed prices are also dated examples rather than durable cost data. Compare the complete installed cost, including:

• Product price
• Freight
• Unloading
• Lifting equipment
• Labor
• Restricted access
• Temporary support and shoring
• Grout and reinforcement
• Exterior coatings
• Flashing and drainage work
• Inspection and approval
• Custom-fabrication charges

Stop-work checks

Do not order, modify, or install the lintel when:

• The current load table is missing
• The wall support or bearing condition is uncertain
• The exact product code cannot be confirmed
• Orientation is unclear
• The unit is visibly damaged
• A substitution has not been reviewed
• Required field reinforcement, grout, or shoring is undefined
• Fire documentation does not match the product and assembly
• Current drawings conflict with manufacturer instructions
• Site conditions conflict with the approved design
• Required approvals have not been obtained

Frequently asked questions

How much bearing does a precast concrete lintel need at each end?

There is no universal bearing dimension for every lintel, support material, load, and jurisdiction.

CMHA guidance uses an overall length of at least the clear span plus 8 in. to provide at least 4 in. at each end. This is a preliminary reference rather than blanket approval, as explained in CMHA’s precast concrete lintel guidance.

A manufacturer guide also requires at least 4 in. where its stated masonry-arching method is used. The final bearing must match the exact product documentation, structural drawings, support condition, assigned reactions, designer’s requirements, and locally adopted code. More bearing or a different support detail may be required.

Can I determine lintel capacity from its nominal size and opening width?

No. Nominal size and opening width can identify geometrically possible products, but they do not establish capacity.

Capacity depends on the exact section, reinforcement or prestressing, concrete properties, design span, bearing, support assumptions, load pattern, flexure, shear, deflection, orientation, and construction condition. Use the current manufacturer load table for the exact product code and verify it against the project design.

Can a precast concrete lintel be cut, drilled, or notched in the field?

Do not assume so. Cutting, drilling, or notching can affect reinforcement or prestressing, reduce concrete cover, alter anchorage, weaken an end zone, and invalidate documented capacity.

Although a historical manufacturer catalog permitted field cutting for certain U-lintels, that statement is not general authorization. Modify a lintel only when the current manufacturer provides written instructions for that exact product and the responsible designer approves the change.

Can a concrete lintel replace a steel cavity-wall lintel?

Not automatically. A purpose-made steel cavity-wall lintel may support particular wall leaves while coordinating the cavity, insulation, flashing, and drainage. A standard solid concrete lintel may not reproduce those functions.

Any substitution must address structural capacity, bearing, supported wythes, wall geometry, deflection, thermal and moisture detailing, exposure, installation, and local approval. Compare approved wall systems rather than matching only overall length.

Are precast concrete lintels fire rated?

Some specific products have manufacturer-listed fire-resistance ratings, but “precast concrete lintel” is not itself a universal rating.

Confirm the exact product type and thickness, test or calculation standard, edition, listing or report, installation conditions, and complete wall assembly. A rating published for one manufacturer’s product cannot automatically be transferred to another lintel or a differently constructed wall.

Conclusion

Apply the two-gate rule before ordering a precast concrete lintel.

First, confirm that the product fits the clear opening, approved bearing areas, supported masonry wythe, available depth, exposure, and wall construction. Then verify that the exact product satisfies the assigned loads, strength, bearing, serviceability, orientation, handling, and installation requirements.

Take the completed measurement and procurement checklist to the supplier and responsible structural professional. Before ordering a lintel or altering a structural opening, compare the latest manufacturer documents with the project drawings, site conditions, required approvals, and the code edition adopted locally.
