What to Check Before You Specify Parallel Strand Lumber

Parallel strand lumber can provide a long, consistent structural member where a building needs a carrying beam, header, girder, post, or column. It is often considered for open floor plans and wide openings, but “PSL” and a width-and-depth label are not enough to establish a safe span—or even to place an accurate order.

Availability, transport, lifting, and installation can also determine whether a theoretically suitable member is practical.

This guide is for preliminary product and purchasing research. Product-specific dimensions and installation requirements must be checked against current manufacturer-controlled literature before design, ordering, modification, or construction.

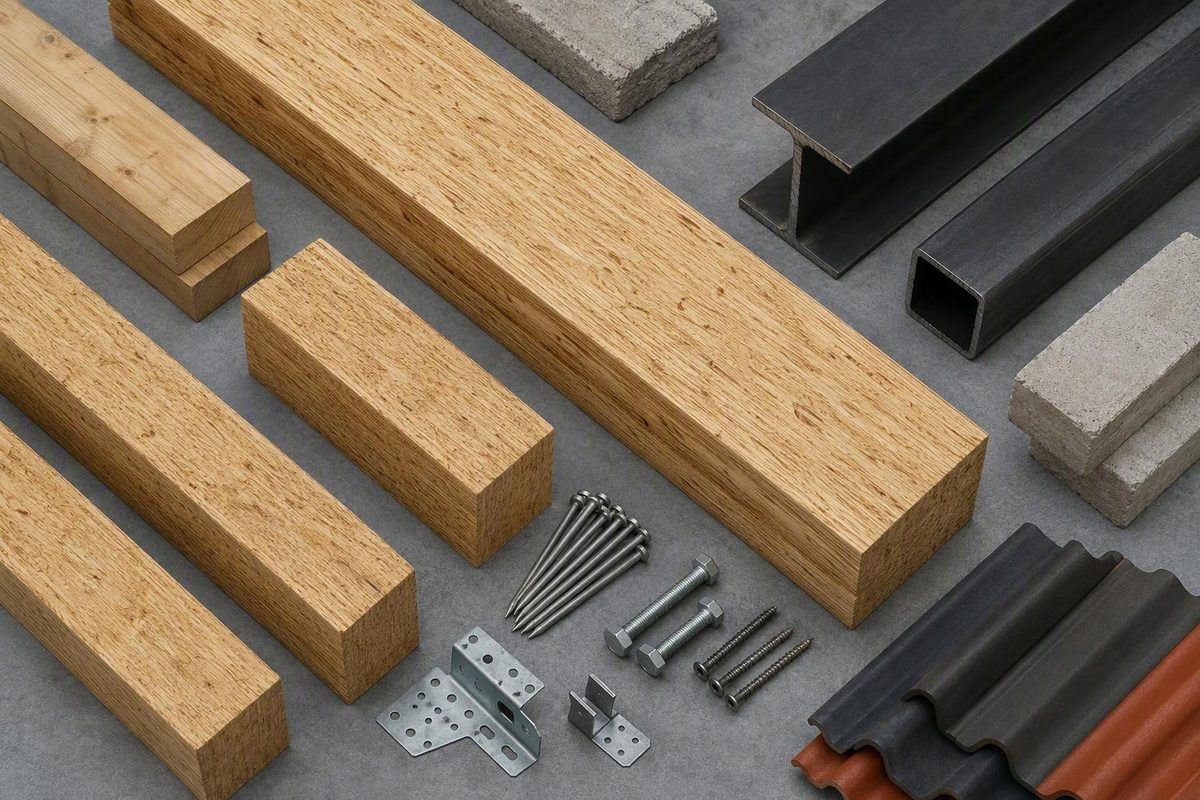

What a PSL beam is—and what Parallam means

PSL stands for parallel strand lumber. It is structural composite lumber made by aligning long wood strands primarily in the member’s length direction and bonding them with adhesive. Unlike solid-sawn lumber, PSL is manufactured rather than cut directly from a log.

Distributing knots and other natural wood characteristics across numerous bonded strands contributes to more consistent engineered properties from piece to piece than ordinary solid-sawn lumber. That does not make every member identical, defect-free, or immune to moisture, damage, movement, or installation problems. PSL is used for beams, headers, columns, and posts, among other structural roles, as summarized in this overview of parallel strand lumber.

“PSL” is the generic material category. Parallam is Weyerhaeuser’s branded PSL product family. The terms are related, but they are not interchangeable when specifying a member: a generic description of PSL does not establish the grade, dimensions, treatment, design properties, approval, or warranty of a particular Parallam product.

The product family also contains important distinctions. Standard Parallam beams and columns are not the same configuration as treated Parallam Plus. Weyerhaeuser separates beams, columns, and treated exterior-oriented products within the Parallam PSL product family. Treatment must be confirmed from the exact product designation, stamp, order documents, and current technical literature. It should never be inferred merely because a member is PSL or carries the Parallam name.

The correct expansion is parallel strand lumber, not “particle strand lumber.” Historical comparisons with other strand-based wood technologies do not establish the properties of a current product and should not be used as a specification basis.

Where PSL beams are commonly used

PSL members may be designed as:

• Carrying beams beneath floors or roofs
• Girders receiving joists, beams, or concentrated reactions
• Headers over doors, garage openings, window walls, and other wide openings
• Posts and columns carrying beam or girder reactions
• Cantilevered members
• Members extending across multiple spans
• Ridge or other roof-supporting beams, where designed for that role

These applications explain why PSL frequently appears in early research for open-plan renovations, garage conversions, broad patio-door openings, and rooms with large window assemblies.

Weyerhaeuser promotes Parallam PSL for long spans, long-length availability, consistent performance, connection performance, and exposed applications. These are product-family claims rather than guarantees for every member or project. The manufacturer’s Parallam beam information directs users to separate design, installation, connector, storage, code, and warranty documents.

A wide PSL member may sometimes perform a role for which another engineered-wood design would use multiple field-assembled plies. That can reduce some assembly work, but it does not eliminate connection design or guarantee a simpler installation. The designer still has to establish the required width, depth, grade, bearing, restraint, and connection configuration.

PSL can also be left visible. Its aligned-strand texture differs from the laminations of glulam and the grain of solid timber, and suppliers say it can be painted or stained. An exposed member nevertheless requires more than an appearance decision. Finishing, moisture protection, joints, visible hardware, fire strategy, and expectations for surface variation all need to be coordinated with the structural specification.

A large opening or heavy load does not prove that PSL is the best material. LVL, LSL, glulam, steel, solid timber, or a system with additional posts may provide a suitable alternative. Comparisons must use complete designs offering equivalent capacity and serviceability rather than material names alone.

Representative PSL beam sizes, grades, and length limits

The following dimensions are representative lists, not a universal size chart or confirmation that every width is offered in every depth. A third-party reproduction identified as the April 2024 edition of Weyerhaeuser’s TJ-9000 guide lists the following dimensions for 2.0E Parallam PSL beams and headers:

These figures come from reproduced TJ-9000 Parallam size and specification material. The reproduction also says that some sizes may not be available in every region. Confirm each width-and-depth combination in the current official guide before design or purchase.

2.0E is a product grade designation. It must be copied exactly from the structural documents and matched to the current product literature and product stamp. It is not a generic synonym for PSL and should not be substituted silently for another grade used for beams, headers, posts, or columns.

A buyer may encounter different combinations of:

• Width and depth
• Beam, header, post, or column designation
• Grade
• Treatment status
• Manufacturing source
• Available piece lengths
• Regional approvals and supporting documents

A dimension appearing in a guide does not mean that every dealer stocks it. Large members may be special-order products, while a size routinely available in one region may be difficult to source in another.

General references describe potential PSL manufacturing lengths of approximately 60 feet, while also noting that handling and transportation can impose shorter limits (parallel-strand lumber overview). A long member can also be difficult to brace and handle before it reaches its final position.

Retail labels require careful checking. One retailer describes a product as both 7 inches and 7.25 inches wide, an unresolved discrepancy that illustrates why a store title or image caption should not control an order. The same listing shows that a retailer may sell PSL by total lineal footage while asking the buyer to state each required piece length and quantity separately in the order notes (retailer ordering example).

For ordering purposes, “PSL, 7 by 14” is incomplete. A usable material schedule should include:

• Manufacturer and product designation, where specified
• Structural role
• Exact width and depth
• Grade
• Treatment or exposure designation
• Exact order length for every piece
• Quantity
• Required fabrication or connector provisions
• Technical literature and design basis governing the member

The current manufacturer specification, approved structural documents, and delivered product stamp should control over inconsistent retailer labels. If the delivered dimensions, stamp, grade, or treatment do not match the structural documents, the discrepancy should be resolved before installation.

Why there is no universal PSL span chart

There is no universal span that can be assigned to a PSL width and depth. Two members with the same dimensions can face substantially different demands depending on what they support, how the load reaches them, and how they are restrained.

At minimum, sizing requires:

• Clear span between the relevant supports
• Number and arrangement of spans
• Tributary floor, roof, wall, or deck area
• Dead load
• Live load, roof live load, or snow load, as applicable
• Point loads from posts, beams, trusses, or framing transitions
• Load duration and applicable load combinations
• Deflection criteria
• Exact product and grade
• Permitted member orientation
• Bearing conditions and support material
• Shear and bending checks
• Lateral stability and restraint
• Hangers, fasteners, and other connections
• Exposure conditions
• Applicable local code and adopted edition

Strength and stiffness are separate considerations.

The beam cannot be checked in isolation. End and intermediate reactions must be transferred through adequate bearing, hangers, posts, walls, connections, and foundations.

The reproduced TJ-9000 material illustrates why isolated figures are inadequate. It provides allowable moment and shear values but directs users to different floor-load, snow-roof, and non-snow-roof tables. It also states assumptions involving load duration, orientation, camber, bearing, and lateral support. An isolated moment or shear value cannot select a beam without the complete tables and project calculations.

That reproduction says beams require lateral support at bearings and along the span at no more than 24 inches on center, and it assumes no camber (reproduced TJ-9000 material). Because the source is an unofficial partial copy, neither statement should be converted into project-ready instructions without checking the current manufacturer-hosted edition and confirming that it applies to the exact product, depth, framing arrangement, loading, and construction stage.

The reproduced guide also cites ICC-ES ESR-1387 as the code evaluation for Parallam PSL. That reference should be checked against the current official report and the edition applicable to the project.

A sound selection process therefore uses:

1. Current manufacturer-hosted literature for the exact product.
2. Applicable load or span tables rather than a generic online chart.
3. Product-specific design properties and adjustment requirements.
4. Current hole, bearing, connection, and restraint guidance.
5. Project-specific structural calculations.
6. Review under the locally applicable approval process and code edition.

Do not ask a supplier to size a structural beam from the opening width alone. A supplier can quote or locate a specified product, but opening width does not reveal the tributary loads, point loads, support conditions, serviceability limits, bearing requirements, or foundation consequences.

Interior, construction-weather, and exterior exposure are different conditions

“Can PSL get wet?” is too broad a question. The answer depends on the exact product, whether exposure is temporary or recurring, the severity of the environment, and what the current product documentation permits.

The cited supplier guidance presents standard untreated PSL as an interior product that should not receive regular exposure to water or moisture. Weyerhaeuser separately markets treated Parallam Plus PSL for qualifying exterior applications. This distinction does not mean that every treated member is suitable for every outdoor environment; permitted exposure, treatment documentation, connectors, detailing, maintenance, local acceptance, and project design still need to be verified.

Use the following matrix as a routing tool, not as an approval table:

Weyerhaeuser says Eastern Parallam PSL has enhanced protection from the elements during construction. This describes temporary jobsite weather protection, not blanket approval for permanent exterior or damp service. The distinction appears on the manufacturer’s Parallam beam page cited earlier.

Treatment status should be verified from the product stamp and accompanying documents. Color, surface appearance, brand recognition, or a generic reference to “Parallam” is not enough.

For an exterior or moisture-exposed application, confirm:

• The preservative treatment and applicable use category
• Whether the intended exposure is expressly permitted
• Whether ground contact is allowed or excluded
• Whether cuts, holes, or ends require field treatment
• Which fasteners, hangers, and connectors are compatible with the environment and treatment
• Whether barriers or membranes are required at interfaces
• Inspection and maintenance requirements
• Limitations for severe environments
• Whether field modifications affect treatment coverage or warranty

A supplier’s handling guidance advises storing PSL members flat and dry while awaiting installation (PSL storage and use guidance). Current manufacturer instructions should govern protection from precipitation, standing water, ground contact, and construction damage. If the condition of a member is in doubt, obtain product-specific guidance before concealment or installation.

Holes, cuts, bearing, restraint, and finishing

Service penetrations are not governed by a universal PSL rule. Holes may be permitted only where current allowable-hole guidance for the exact product, grade, size, loading, and application permits their location and diameter.

Do not transfer a remembered “middle-third” rule, notch rule, or end-distance formula from solid-sawn joists, I-joists, LVL, or another engineered product. Published restrictions can differ. If current product guidance does not clearly cover the proposed penetration, obtain a reviewed solution before drilling.

Ripping a PSL beam, trimming its depth, or cutting away a damaged edge is not routine fitting. It must be treated as a redesign rather than a field adjustment.

A PSL supplier states that holes depend on applicable allowable-hole guidance and that ripping changes the member’s strength rating, span, and load capacity. The same source says the material can be painted or stained while presenting the standard product it sells as intended for interior use (supplier modification and finishing guidance).

Installation planning must resolve more than the beam itself:

• Required bearing length and bearing material
• Reactions at every support
• Hanger model and capacity
• Fastener type, size, quantity, and installation
• Post size, grade, bracing, and connections
• Load transfer through floors and walls
• Foundation or footing capacity
• Lateral support at bearings
• Restraint along the span
• Temporary support and erection sequence
• Connections between plies where a multi-ply design is used
• Moisture protection at vulnerable interfaces

These items must come from the engineered load path and current product and connector information. They should not be inferred from a beam size, a photograph, or a fastening pattern used on another product.

The reproduced TJ-9000 statement concerning support at intervals of no more than 24 inches is not a universal field rule. The responsible designer and installer must establish the applicable restraint and temporary-support requirements from current documents.

Coordinate an exposed member’s structure with surface preparation, finish compatibility, moisture detailing, hardware appearance, maintenance access, and the building’s fire strategy.

Do not conceal an unauthorized hole, notch, split, overcut, damaged bearing area, or other field error with filler or trim. Document the condition and obtain a product-specific repair or engineering disposition. A repair used for one engineered-wood product cannot automatically be transferred to another.

PSL compared with LVL, LSL, glulam, and solid timber

The useful question is not “Which material is strongest?” It is “Which complete design satisfies the required capacity, stiffness, exposure, geometry, approval, and construction constraints at an acceptable installed cost?”

The materials differ in composition and common form:

An engineered-lumber comparison from SFS describes LVL as bonded parallel veneers, LSL as flake- or strand-based, and glulam as bonded lumber laminations that can be made in large or curved forms. These broad descriptions help distinguish product families, but their qualitative rankings cannot replace matched design values.

PSL is associated with long members and demanding beam, header, and column applications. That does not establish that it is stronger than every LVL, LSL, glulam, or solid-timber option. Each product has its own grades, dimensions, design properties, adjustment requirements, and approved uses.

LVL is commonly available in narrower widths that may be combined into two or more plies. Some PSL designs may use one wider member instead, potentially reducing parts of the field assembly. This is not a universal advantage: a wider member may be heavier, harder to obtain, or less convenient to lift, and a single-piece design can still require substantial connection work.

Glulam adds geometry and architectural appearance to the decision. It can be produced in large or curved forms, so it may be selected for profile and appearance as well as structural capacity. PSL has a distinctive exposed strand pattern, but appearance alone does not determine suitability.

Solid timber may be locally available or visually preferred, but its species, grade, dimensions, moisture condition, and natural variability must be reflected in the design.

Compare candidate systems using:

1. Required bending, shear, and bearing capacity
2. Required stiffness and deflection limits
3. Maximum allowable beam depth and width
4. Member weight and lifting method
5. Interior, damp, or exterior exposure
6. Fire strategy and required protection
7. Architectural appearance
8. Local grades, lengths, and treatments
9. Delivery access and transport limits
10. Hangers, fasteners, posts, and foundations
11. Fabrication and field-modification constraints
12. Labor and temporary support
13. Lead time
14. Total installed cost

Claims that “PSL is always strongest” or “PSL is always more economical” are not valid specification rules. Cost comparisons are particularly misleading when they compare prices per foot without matching capacity, depth, supports, connectors, and installation.

Cost, quoting, and the pre-order checklist

One Bay Area supplier gives an undated estimate of approximately $15 to $40 per linear foot, including $15–$22 for a 3.5-by-9.5-inch member, $20–$30 for 5.25 by 11.875 inches, and $30–$40 or more for 7 by 14 inches. These are localized supplier estimates, not current national benchmarks, and can vary with grade, treatment, location, availability, and market conditions (Bay Area Parallam cost guide).

Material price may be affected by:

• Width and depth
• Structural grade
• Treatment
• Exact length
• Quantity
• Regional market
• Manufacturing source
• Current inventory
• Special-order status
• Shipping and handling
• Dealer policies
• Lead time and market conditions

A per-foot figure can conceal practical ordering details. A retailer may request total lineal footage and then require the individual piece lengths and quantities. Confirm whether a quote is per foot, per piece, or for the complete order, and verify currency, taxes, cutting policies, minimums, return conditions, and delivery charges.

Separate material price from installed cost

The beam itself may represent only part of the project budget. Installed cost can include:

• Structural engineering and drafting
• Investigation of existing construction
• Permit and review fees
• Hangers, straps, bolts, screws, and other connectors
• New posts, walls, footings, or foundation work
• Delivery and special handling
• Crane, forklift, lift, or other erection equipment
• Temporary walls, shoring, and protection
• Demolition and disposal
• Carpentry and other trade labor
• Utility relocation
• Finishing and fire-protection work
• Waste or replacement risk
• Inspection and corrective work

A more expensive beam may sometimes reduce framing complexity, while a cheaper member may require additional plies, connectors, supports, or lifting work. Compare complete installed systems designed for equivalent performance.

Pre-quote checklist

Before asking a dealer for pricing, assemble:

• Current structural plans and revisions
• Project location and application
• Beam, header, girder, post, or column role
• Clear span and support arrangement
• Design loads and point loads
• Specified width and depth
• Exact product and grade
• Treatment or exposure designation
• Required piece lengths
• Quantity of each length
• Connector or fabrication requirements
• Delivery address
• Road, gate, turning, overhead, and unloading restrictions
• Maximum practical delivery length
• Lifting and erection plan
• Required delivery date and acceptable lead time
• Applicable approval or code documentation
• Required certificates, reports, or warranty documents

Obtain the dimensions, grade, and treatment from the structural documents before requesting a quote. Asking a salesperson to infer a beam from “a 16-foot opening” omits the tributary loads, point loads, support conditions, deflection criteria, bearing, and complete load path.

Weyerhaeuser states that it does not sell Parallam directly and directs buyers to local dealers for current pricing and availability. A dealer can confirm stock and quote the specified material, but any substitution should return to the responsible designer for review.

Document-verification checklist

Before purchase or installation, confirm the current versions of:

• Manufacturer’s specifier guide
• Applicable span or load tables
• Product design-property information
• Current code evaluation report
• Allowable-hole guidance
• Bearing and lateral-restraint requirements
• Connector and fastener information
• Treatment and exposure documentation
• Cut-end or field-treatment instructions, where applicable
• Storage and handling instructions
• Installation literature
• Warranty terms and exclusions

Do not rely on an unofficial reproduction when a current manufacturer-controlled document is required. Edition, product scope, manufacturing source, and regional availability can matter.

Frequently asked questions

How far can a PSL beam span?

There is no universal span for a PSL beam based only on width and depth. The answer depends on the exact product and grade, clear span, support arrangement, tributary area, dead and live or roof loads, point loads, load duration, deflection limit, bearing, lateral restraint, connections, and applicable local code.

A valid design must also check shear, reactions, posts, hangers, and foundations. Use the current manufacturer-hosted guide and applicable load tables together with project-specific structural design; do not select a beam from an isolated allowable-moment value or a generic online chart.

Is Parallam the same as PSL?

PSL is the generic term for parallel strand lumber. Parallam is Weyerhaeuser’s branded PSL product family.

The distinction matters because a Parallam designation may identify a particular grade, beam or column configuration, treatment, approval, or set of technical documents. Standard Parallam and treated Parallam Plus should not be assumed to have the same exposure permissions.

Can a PSL beam be used outdoors?

Do not assume that generic or untreated PSL can be used outdoors. The cited suppliers generally present standard untreated products for protected-interior service, while Weyerhaeuser promotes treated Parallam Plus for qualifying exterior applications.

Verify the exact treatment, permitted exposure, ground-contact limitations, cut-end requirements, connector compatibility, maintenance, local acceptance, and warranty conditions. Temporary protection from construction weather is not the same as approval for permanent exterior service.

Can holes be drilled or notches cut in a PSL beam?

Holes may be permitted only when current product-specific allowable-hole guidance approves their location and diameter. There is no safe generic hole zone or notch rule that can be transferred from solid-sawn lumber or another engineered-wood product.

Do not notch, drill, rip, reduce, or repair a PSL member without applicable published guidance or a reviewed project-specific solution. Reducing its section can affect strength, stiffness, deflection, bearing behavior, span, and load capacity.

How much do PSL beams cost per linear foot?

One Bay Area supplier estimates approximately $15 to $40 per linear foot, but the estimate is undated, localized, and not a national price range. Actual prices depend on dimensions, grade, treatment, length, quantity, region, inventory, shipping, handling, and market conditions.

Request a current local quote for the exact member shown in the structural documents. Budget separately for engineering, permits, connectors, supports, delivery, lifting, labor, temporary support, finishing, and other installation costs.

Final specification sequence

Before specifying or ordering PSL beams:

1. Identify the member’s structural role and exposure.
2. Establish the loads, clear span, support conditions, and serviceability criteria.
3. Have the member and complete load path designed.
4. Confirm the exact product, grade, dimensions, treatment, connections, and permitted modifications in current official literature.
5. Obtain a location-specific quote for the specified material.
6. Plan delivery, unloading, lifting, temporary support, and installation.

Representative sizes and regional price estimates are useful for preliminary research, but they cannot establish span or suitability. Mortar Desk publishes general building-material reference information; it is not an engineer, contractor, beam supplier, or source of project-specific approval. Its guidance on structural work and local codes directs structural work to qualified trades working under the locally applicable code.
