How to Choose and Use a Red Oxide Primer on Metal

Red oxide primer paint is commonly used on steel gates, railings, machinery, tanks, fabricated parts, outdoor furniture, and similar metalwork. Its familiar red-brown color is easy to recognize, but the name alone does not establish how a particular product will perform.

The reliable way to choose a primer is to treat it as one component of a complete coating system. Identify the metal, assess the corrosion and existing paint, select a primer expressly approved for that substrate and exposure, and confirm which topcoat can be applied over it. Surface preparation, film build, curing, and maintenance matter more than primer color.

Most performance statements available for these products come from manufacturers, suppliers, or retailers rather than controlled independent comparisons. They can describe the named product, but they should not be generalized to every red oxide formulation.

What red oxide primer paint is—and what the name does not prove

Red oxide primer is typically a red-brown, corrosion-inhibiting base coat used mainly on iron, mild steel, and other ferrous metals. Within a specified coating system, it must adhere to the prepared metal, provide a suitable base for subsequent coats, and may contribute to corrosion protection.

The familiar color is associated with iron oxide pigment. Appearance alone, however, does not prove composition. A flat red primer may use a different pigment package, while two similarly colored products may have different binders, solvents, additives, substrate approvals, and application requirements.

The principal coating components serve different purposes:

Products sold as red oxide primers include conventional alkyd or oil-based coatings, quick-dry solvent products, aerosols, and epoxy-based formulations. Asian Paints, for example, distinguishes a conventional mild-steel primer from an epoxy-based red oxide product, demonstrating why the product name does not establish the binder chemistry or application system (Asian Paints).

These categories should not be treated as interchangeable:

• Red iron oxide primer: A primer identified by its manufacturer as using red iron oxide pigment.
• Red-colored primer: A primer whose appearance resembles red oxide but does not, by color alone, establish its pigment or binder.
• Rust converter: A product expressly formulated to react with residual rust under defined conditions.
• Direct-to-rust coating: A coating designed for application over a specified amount and condition of prepared rust.
• Direct-to-metal coating: A product intended to combine functions that might otherwise be divided between primer and finish coats.
• Topcoat: The exposed finish selected for appearance, weathering, cleanability, abrasion resistance, or other service requirements.

An ordinary red oxide primer should not be described as a universal rust converter. Even if a named product permits application over traces of tightly adhering corrosion, that permission does not justify coating loose scale, flaky paint, oil, or damp metal.

Likewise, an “interior and exterior” description does not necessarily mean that the primer can remain exposed outdoors. It may mean that the primer is suitable for an exterior system when covered by an approved finish.

Terminology

• Ferrous metal: Metal containing iron. Mild steel, carbon steel, cast iron, and wrought iron are common examples.
• Primer: The first specified coating applied to a prepared substrate.
• Topcoat: The exposed finish coat applied over a compatible primer or intermediate coat.
• Rust converter: A treatment specifically formulated to react with residual rust. It is not synonymous with ordinary primer.
• Touch-dry: Dry enough that a light touch does not leave an obvious mark. The film may still be soft.
• Handle-dry: Developed sufficiently for handling within the product’s stated limits.
• Recoat time: The permitted interval before the next coat is applied. This, rather than touch-dry time, determines when painting can continue.

Use these definitions for comparison, but let the current product label and technical data sheet control the work. A general claim that a primer “prevents rust” does not replace documented substrate approval, preparation requirements, film build, recoat limits, and topcoat compatibility.

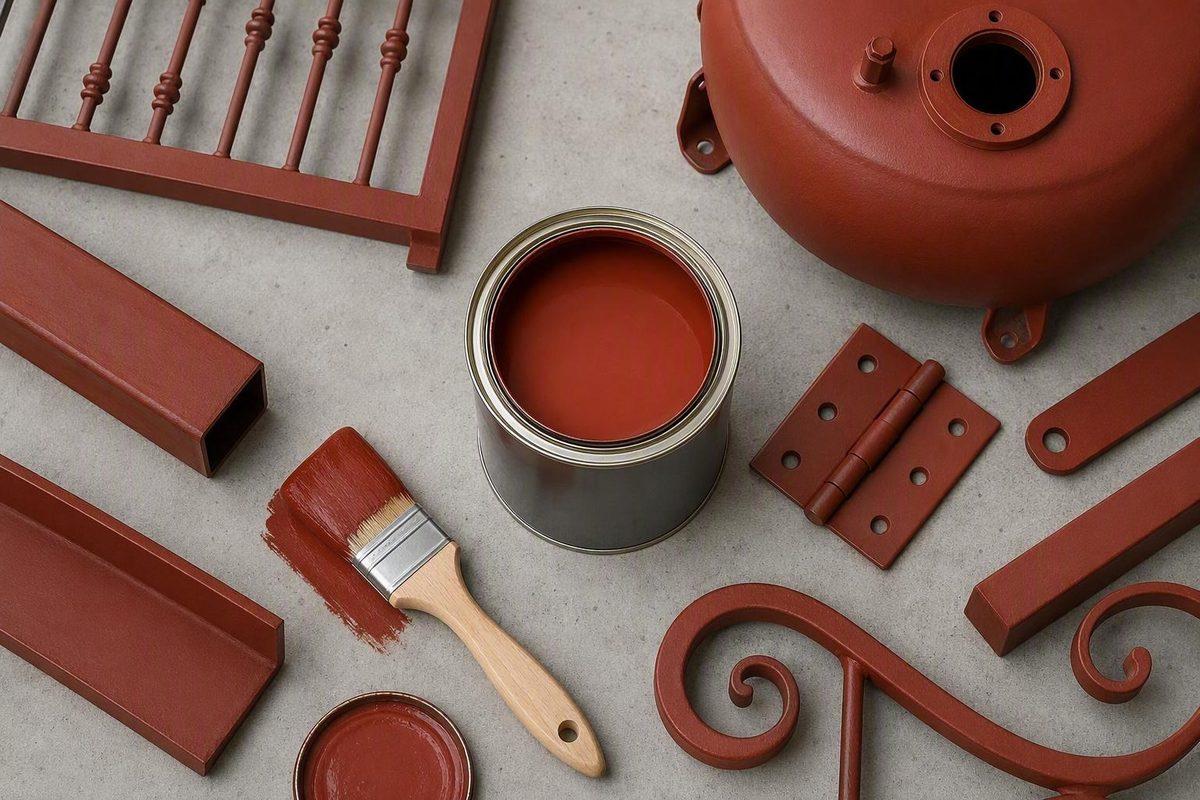

Where red oxide primer is commonly used

Conventional red oxide primer is most commonly associated with prepared ferrous metal. Potential applications include:

• Gates, grills, fences, and railings
• Mild-steel indoor or outdoor furniture
• Fabricated steel brackets and components
• Machinery and equipment
• Structural steel and beams
• Pipes and tanks
• Frames, supports, and maintenance parts
• Selected vehicle parts
• Cast-iron and wrought-iron decorative work

One oil-based product listing, for example, identifies structural steel, machinery, fabricated parts, beams, pipes, railings, tanks, and equipment as intended applications. Those are seller-provided uses for the named coating, not independent durability findings (RAE ProStores).

Interior and exterior ferrous-metal use is widely advertised, but exterior work normally requires a compatible finish system. A primer left exposed is not equivalent to a finish selected for rain, sunlight, condensation, abrasion, temperature changes, or chemical exposure.

Substrate decision table

Mild steel, cast iron, and wrought iron are conventional candidates, subject to the product instructions. Galvanized steel is less predictable: a branded quick-dry product demonstration claims suitability for mild and galvanized steel, while supplier guidance for conventional red oxide primer cautions that it is generally unsuitable for galvanized metal. The practical response is to require explicit galvanized-steel approval for the exact product.

Stainless steel is also product-specific. One manufacturer includes stainless steel among the substrates for its alkyd primer, but the available guidance does not establish a preparation method that applies to every stainless grade or primer. A broad “for metal” description is not enough.

For aluminium, copper, brass, and other non-ferrous metals, begin with a bonding, etching, or other substrate-specific primer unless the selected red oxide product expressly approves the metal and gives a preparation procedure.

A magnet can be a preliminary identification aid because many common iron and steel objects are magnetic. It is not a compatibility test. Assemblies may contain several metals, and the result does not identify galvanizing, alloy grade, contamination, or an existing coating.

Also assess whether the object remains fit for use. Primer cannot replace metal lost through corrosion. Deep pitting, perforation, cracked welds, distortion, or severely thinned sections may require repair or replacement. Do not use fresh paint to conceal uncertainty about the strength of a railing, gate support, tank, vehicle component, or structural part.

How to assess rust and prepare the surface

Surface preparation begins with inspection. Look for:

• Loose rust and heavy scale
• Deep pits, holes, or substantial section loss
• Failed, blistered, or peeling paint
• Cracks, damaged joints, or failed welds
• Oil, grease, soot, salts, and grime
• Trapped water or condensation
• Smooth or unstable mill scale
• Incompatible or unidentified coatings
• Crevices where water collects

Loose rust and flaky paint form an unstable base. Remove unsound material using scraping, wire brushing, sanding, grinding, blasting, or another method appropriate to the object and the selected coating instructions.

Distinguish loose corrosion from tightly adhering residual rust or staining. Some named coatings permit traces of the latter after cleaning and abrasion. That is a product-specific allowance, not a general property of red oxide primer. Unless the manufacturer expressly documents a conversion function, do not claim that the primer chemically converts corrosion.

A practical preparation sequence is:

1. Move or isolate the work. Select a suitable, ventilated work area and protect nearby floors, walls, vehicles, plants, and finished surfaces.
2. Assess the metal’s condition. Stop if corrosion has materially weakened the item or repair requires structural judgment.
3. Remove loose paint and corrosion. Prepare the surface using the method and standard required for the coating.
4. Feather stable paint edges. Taper sound surrounding paint rather than leaving a brittle ridge around a repair.
5. Degrease appropriately. Use a cleaner approved for the substrate and coating system.
6. Remove dust and debris. Pay attention to seams, pits, corners, and joints.
7. Allow the substrate to dry. Do not trap water or cleaner beneath the primer.
8. Prime as directed. Follow the product’s stated timing and environmental limits after preparation.

A BuildersSA restoration demonstration shows an outdoor metal table being ground and sanded to bare metal, cleaned, primed with a quick-dry red oxide product, and subsequently coated with enamel. It is a useful example of the sequence, but it is a branded demonstration for named products rather than independent testing (BuildersSA video).

Do not turn that demonstration’s thinner wipe into a universal cleaning rule. The appropriate cleaner depends on the substrate, contamination, existing coating, and new coating system. An unidentified solvent should not be used unless the product documentation permits it. If water-based cleaning is approved, let pits, seams, and joints dry before priming.

Localized repainting may be sufficient when the surrounding coating is sound and compatible. Clean the damaged area back to sound metal where practical, feather the stable paint, spot-prime the exposed surface, and restore the specified finish coats. If deterioration is widespread, repeated spot repairs may be less dependable than removing and replacing the failed coating system.

Stop-work check: A coating is cosmetic and protective; it is not structural repair. Stop if the metal is perforated, severely thinned, unstable, or unsafe. Repair, replacement, or professional assessment should come before painting.

Brush, roller, aerosol, and spray application

Red oxide primers may be supplied for brushing, rolling, aerosol application, conventional spraying, or airless spraying. The appropriate method depends on the formulation, project geometry, required film build, finish expectations, work area, and available equipment.

Choosing an application method

The application method affects access, overspray, wet-film consistency, cleanup, and the ability to coat seams and recesses. Brush application can be useful around welds and edges, while sprayed work may require passes from several directions to cover complex profiles.

Before coating, confirm that the surface is clean and dry and that the air and substrate conditions fall within the limits stated in the technical data sheet. Do not invent temperature, humidity, or condensation limits when the manufacturer has not supplied them.

There is no universal thinning ratio

Published instructions demonstrate how much formulations can differ:

• King Metals lists a spray ratio of five parts paint to one part thinner for its one-gallon primer, although the supplied listing does not identify the thinner (King Metals).
• Island Paints recommends approximately 5% of its named thinner for brush, roller, and spray application of its alkyd product (Island Paints).
• BBSPL gives 10% to 15% by volume as general airless-spray guidance and recommends at least two primer coats, but its article is supplier-authored guidance rather than a rule for unrelated products (BBSPL).

These ratios are not interchangeable. The binder, solvent package, solids content, equipment, application method, and intended film build may differ.

Check the current technical data sheet for:

• Approved reducer or thinner
• Maximum permitted dilution
• Whether thinning is allowed for the selected method
• Nozzle, pressure, or other equipment guidance
• Required wet- and dry-film thickness
• Mixing and induction requirements
• Pot life for multi-component products
• Cleanup material
• Application temperature and humidity limits

Coat count is also product-specific. A statement such as “apply two coats” is incomplete unless those coats produce the specified dry-film thickness.

Pay particular attention to edges, welds, seams, bolt heads, corners, pits, and prepared repairs. If the coating specification calls for stripe coating, apply the additional coat to those areas as directed.

A sound application sequence is:

1. Stir, mix, or shake the primer as instructed.
2. Strain it if required for the chosen equipment.
3. Stripe-coat difficult areas when specified.
4. Apply an even coat without runs, dry spray, pinholes, or missed recesses.
5. Observe the stated recoat interval.
6. Inspect for contamination, damage, or incomplete coverage.
7. Apply only the additional coats required by the product or coating specification.
8. Let the primer reach the specified stage before applying an approved topcoat.

Drying, recoating, and choosing a compatible topcoat

Drying terms describe different stages:

• Touch-dry means a light touch may no longer mark the surface.
• Handle-dry indicates further development, but not necessarily full hardness.
• Hard-dry describes a later drying or curing stage.
• Ready to recoat means the manufacturer permits application of the next coat under stated conditions.
• Fully cured refers to further development of the coating’s final properties.

Use the recoat window, not touch-dry time, to decide when to continue.

No universal drying time is defensible. Seymour lists a 30-minute topcoat time for one red iron oxide aerosol, while the same product page gives conflicting touch-dry values of 5 and 10 minutes. It also identifies lacquer, enamel, and acrylic as compatible finishes for that particular aerosol (Seymour).

At the slower end, Island Paints lists 6–8 hours to handle, 8–10 hours to hard-dry, and overnight before recoating for its alkyd red oxide primer. Those figures belong to that formulation and should not be transferred to aerosols, epoxies, or unrelated oil-based products.

Actual drying and recoating behavior can vary with:

• Formulation and solvent package
• Applied film thickness
• Air and substrate temperature
• Humidity
• Air movement and ventilation
• Surface profile
• Reducer type and amount
• Heavy application in corners or overlaps

Applying another coat before the permitted interval may disturb an incompletely developed film. If a product specifies a maximum as well as a minimum recoat interval, follow the stated preparation procedure when that maximum has been exceeded.

Red oxide primer is normally an undercoat rather than the final exposed finish, especially outdoors. Enamel is commonly specified, but “enamel” alone does not prove compatibility. Confirm whether the exact primer accepts the intended alkyd, acrylic, lacquer, epoxy, polyurethane, or other finish.

Do not transfer Seymour’s stated lacquer, enamel, and acrylic compatibility to a conventional oil-based primer or an epoxy system. An unidentified existing primer or an incompletely dried film may react poorly with a subsequent coating.

When repainting an uncertain coating system, test the proposed products on a small, inconspicuous area and allow enough time to observe the result. This is a screening measure, not a substitute for technical documentation. If the underlying coating cannot be identified, removal or a documented tie-coat system may be more dependable.

The durability of the completed system depends on preparation, specified film build, coat count, compatible topcoats, exposure, curing conditions, workmanship, damage, and maintenance. Fast touch-dry time and deep red color do not demonstrate long-term corrosion performance.

When another metal primer may be the better fit

Organize primer selection around four variables:

1. Substrate: Mild steel, galvanized steel, stainless steel, aluminium, or another metal.
2. Binder chemistry: Alkyd, oil-based, epoxy, or another resin system.
3. Exposure: Dry interior, normal exterior, coastal, industrial, chemical, immersed, humid, or high-temperature service.
4. Topcoat: The exact finish and complete coating system required for the job.

A conventional red oxide primer can be practical on properly prepared ferrous metal beneath a compatible finish. The available evidence does not establish it as universally best.

Galvanized steel and non-ferrous metals are common situations in which an etching, bonding, or substrate-specific primer may be needed. Even where a red oxide product expressly permits galvanized steel, follow its preparation sequence rather than assuming that all galvanized surfaces can be treated alike.

For demanding, coastal, persistently humid, or industrial exposure, investigate epoxy, zinc-rich, or zinc phosphate systems. Manufacturers promote these categories for different combinations of adhesion, film build, moisture resistance, or corrosion control, but the available manufacturer comparisons do not establish a universal ranking.

Primer-category comparison

Armstead presents zinc phosphate primer as a higher-film-build alternative to red oxide, but that is a manufacturer comparison rather than an independently tested ranking (Armstead).

Rust converter remains a separate category. If conversion is required, select a product expressly formulated for it and follow the stated limits for rust condition, cleaning, curing, and overcoating.

Direct-to-rust and direct-to-metal products may combine functions, but their documentation still controls preparation, permitted residual corrosion, coat count, film thickness, and finish requirements. “Direct” does not eliminate surface preparation.

Engine and hot-component projects require more than a red primer carrying a heat claim. Consider the documented service temperature, continuous or intermittent exposure, thermal cycling, contact with fuel or oil, component location, and primer/topcoat compatibility. Suitability for an engine block does not establish suitability for an exhaust component, internal part, or fuel-wetted surface.

Seek a documented coating specification for severe atmospheric exposure, immersion, chemical contact, high heat, food-contact areas, potable-water service, pressure-containing equipment, or structural-service conditions. Those applications should not be designed from color names or general retail descriptions.

Choosing between aerosol cans and bulk coatings

Aerosol cans, one-gallon containers, and industrial bulk products serve different project scales. Choose the format according to access, geometry, application control, documentation, equipment, and cleanup—not by assuming one package is technically superior.

Aerosols

Aerosols can be convenient for:

• Small brackets and hardware
• Furniture details
• Awkward profiles
• Selected vehicle parts
• Localized repairs
• Jobs where setting up separate spray equipment would be disproportionate

Seymour lists a 12-ounce red iron oxide aerosol with coverage of up to 15 square feet per can. That is a product-specific maximum, not a universal aerosol rate.

Narrow parts may produce substantial overspray, while recessed faces can be missed. The number and timing of passes must come from the label.

Gallons and industrial containers

One-gallon products can suit larger gates, railings, furniture, and fabrication work where brushing, rolling, or spraying is practical. Bulk containers are more likely to fit industrial maintenance, structural steel, pipes, tanks, or repeated production work.

The available listings illustrate that range: King Metals lists a one-gallon product, while RAE ProStores lists oil-based primer in 5- and 55-gallon sizes. Package size does not establish coating quality, corrosion resistance, coverage, or value.

Larger containers place more emphasis on:

• Thorough mixing
• Batch consistency
• Settled solids
• Approved reducer
• Equipment setup
• Wet-film control
• Required dry-film thickness
• Pot life, where applicable
• Application losses
• Storage and shelf life
• Cleanup and waste management

Do not use marketplace price, ratings, purchase counts, or promotional labels as evidence of coating performance. Search results may mix red iron oxide primer, flat red primer, rust converter, and other product types.

Plan quantity from documented coverage

Container volume is not the same as usable coverage. Obtain the manufacturer’s spreading rate at the required dry-film thickness, then account for the specified number of coats and permitted loss assumptions.

Use this framework:

Required coating quantity = (project area × required coats) ÷ documented coverage at the specified film build

Then apply the manufacturer’s stated loss or waste adjustment. Irregular railings, mesh, narrow bars, pitted steel, and overspray can increase consumption.

Measure both faces of sheet or plate when both will be coated. For pipes and rails, include the complete surface rather than only the apparent frontal area. Do not use a maximum aerosol figure to estimate the performance of a bulk coating.

The available product evidence does not provide sufficiently consistent film-thickness and spreading-rate information to publish a universal coverage-per-gallon figure for red oxide primer paint. If a seller cannot provide coverage at a defined dry-film thickness, quantity planning remains uncertain.

Safety and the specification checklist to use before buying

Many cited red oxide products are described as solvent-based. Follow the current safety data sheet for the selected coating rather than relying on generic assumptions.

Provide the ventilation specified by the product documentation and keep the work away from smoking, flames, sparks, and other identified ignition sources. Use the gloves, eye protection, protective clothing, and respiratory protection specified for the product and application method.

Surface preparation and coating application do not necessarily create the same exposure:

• Sanding, scraping, and grinding can generate dust and debris.
• Solvent-based brushing or rolling may create vapor exposure.
• Spraying can create coating mist and overspray.
• Grinding requires the protective measures appropriate to the tool and generated debris.

Select protection according to the preparation method, coating process, and current SDS. Do not assume that a generic “mask” is appropriate for every dust, vapor, or spray application. Supplier guidance for red oxide primer calls for ventilation, ignition control, gloves, goggles, protective clothing, respiratory precautions, and controlled disposal, but the named product’s SDS must provide the specific instructions.

Do not pour unused primer, thinner, cleaning material, or contaminated liquid into drains, soil, or waterways. Follow the product documentation and applicable local disposal requirements.

Treat claims such as “VOC compliant,” “Rule 66,” “lead-free,” or “non-hazardous for shipping” as statements requiring current documentation and context. A shipping description also does not replace workplace handling or disposal instructions.

Pre-purchase specification checklist

Before ordering, record or verify:

• [ ] Exact substrate and, where relevant, alloy or surface treatment
• [ ] Presence of galvanizing, plating, mill scale, or another surface treatment
• [ ] Type and condition of the existing coating
• [ ] Degree of rust, pitting, scale, and section loss
• [ ] Indoor or outdoor location
• [ ] Inland, coastal, persistently humid, or industrial atmosphere
• [ ] Chemical, fuel, oil, abrasion, immersion, or heat exposure
• [ ] Approved application method
• [ ] Required surface-preparation procedure
• [ ] Named reducer or thinner
• [ ] Maximum permitted dilution
• [ ] Required coat count
• [ ] Required wet-film thickness
• [ ] Required dry-film thickness
• [ ] Spreading rate at that film thickness
• [ ] Application temperature and humidity limits
• [ ] Condensation restrictions, if specified
• [ ] Touch-, handle-, and hard-dry information
• [ ] Minimum and maximum recoat window
• [ ] Compatible intermediate coat and topcoat
• [ ] Service-temperature limits and operating conditions
• [ ] Applicable VOC documentation
• [ ] Shelf life and storage limits
• [ ] Mixing, induction-time, and pot-life requirements
• [ ] PPE and ventilation requirements
• [ ] Cleanup procedure
• [ ] Waste and disposal instructions
• [ ] Access to the current label, TDS, and SDS

Use a simple documentation hierarchy:

1. Current product label and technical data sheet: Substrate approval, preparation, mixing, application, reducer, film build, coverage, drying, recoating, and topcoat requirements.
2. Current safety data sheet: Product hazards, first aid, handling, storage, exposure controls, firefighting information, spill response, and disposal considerations.
3. Applicable local rules and project requirements: Worker protection, fire controls, VOC obligations, waste disposal, and project-specific coating requirements.

Pause or reject a purchase when the seller cannot identify the formulation, approved substrate, compatible topcoat, named reducer, coverage at the specified film thickness, or current technical documents. Phrases such as “heavy duty,” “maximum protection,” and “for all metal” cannot fill those gaps.

Frequently asked questions

Can red oxide primer paint be applied directly over rust?

Only when the exact product permits application over the type and amount of rust present. Loose scale, flaky corrosion, failed paint, grease, dust, and moisture should be removed.

Some formulations may tolerate traces of tightly adhering residual corrosion after cleaning and abrasion. That does not make every red oxide primer a rust converter. Follow the manufacturer’s preparation instructions rather than relying on a general “direct over rust” claim.

If corrosion has perforated or materially weakened the item, repair or replace it instead of coating over the damage.

Does red oxide primer need a topcoat?

Usually, particularly outdoors. Red oxide primer generally functions as an undercoat within a complete coating system. It is not automatically designed to provide the appearance, weathering, abrasion resistance, or cleanability expected from an exposed finish.

Enamel is a common finish, but use only a topcoat confirmed as compatible with the exact primer. Check the permitted recoat interval and any required abrasion or intermediate coat.

Can red oxide primer be used on galvanized steel or aluminium?

Do not assume so. Conventional red oxide primer is primarily associated with iron and mild steel. Some named products claim galvanized-steel compatibility, while broader manufacturer and supplier guidance warns that ordinary red oxide primer may not adhere reliably to galvanized surfaces.

For galvanized steel or aluminium, require explicit approval in the current technical data sheet and follow the specified cleaning, abrasion, etching, conditioning, or tie-coat procedure. Without that documentation, choose a substrate-specific primer.

How long does red oxide primer take to dry before painting?

There is no universal time. One aerosol lists a 30-minute topcoat interval, while one alkyd product requires overnight drying before recoating. Touch-dry, handle-dry, hard-dry, and ready-to-recoat describe different stages.

Use the recoat interval on the current label or technical data sheet. Follow the conditions stated for temperature, humidity, ventilation, and film thickness. Do not rely on touch alone if the coating remains soft or has exceeded its maximum recoat window.

Is red oxide primer the same as rust converter or red-colored primer?

No. Red oxide primer is a primer category commonly associated with red iron oxide pigment and ferrous-metal coating systems. A rust converter is expressly formulated to react with residual corrosion under defined conditions. A red-colored primer may resemble red oxide without having the same pigment, binder, substrate approval, or performance.

Read the technical description rather than identifying the product by color. The documentation should state whether it is a primer, converter, direct-to-rust coating, direct-to-metal finish, or another product type.

The final decision sequence is straightforward: identify the metal; reject, repair, or professionally assess unsafe corrosion; remove loose rust, failed paint, and contaminants; choose a primer expressly approved for the substrate and exposure; confirm the complete topcoat system; and follow the current TDS and SDS for preparation, film build, thinning, drying, safety, cleanup, and disposal.

Mortar Desk publishes general reference information and is not a contractor or engineering adviser. This guide does not replace product documentation, a project coating specification, professional assessment, or local requirements, consistent with Mortar Desk’s stated scope. The words “red oxide” are only a starting point: the documented formulation and complete coating system determine whether a product fits the job.
