How to Plan Joints That Manage Stucco Movement and Cracking

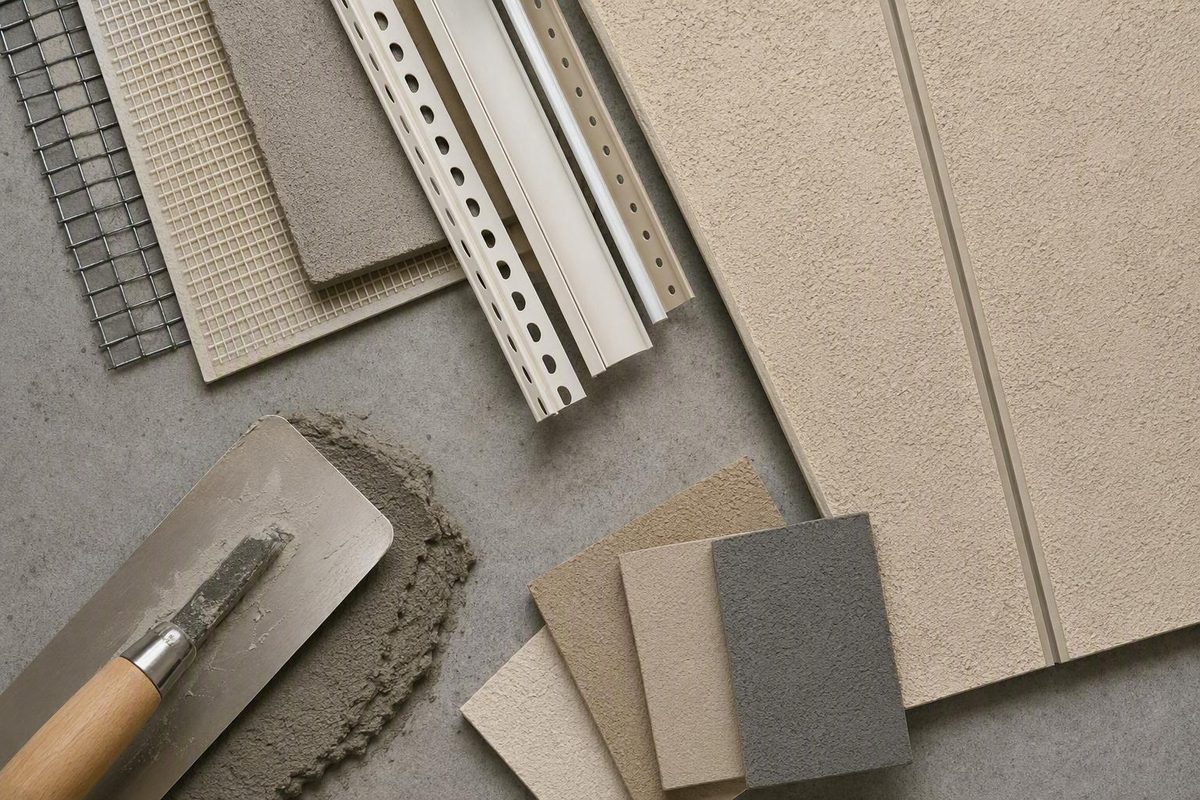

A stucco control joint is more than the metal or vinyl strip visible on a finished wall. It is a planned interruption in the plaster membrane intended to help accommodate shrinkage and limited thermal movement. Whether it works depends on what is moving, how the stucco is supported, and whether the entire joint—not merely the visible accessory—has been designed and installed correctly.

That makes “How far apart should the joints be?” an incomplete starting question. First determine whether the stucco is bonded directly to concrete or masonry or supported by lath. Then identify whether the expected movement originates in the plaster membrane, the supporting wall, or the building structure. Only then do panel dimensions, accessory profiles, lath termination, drainage details, and commonly cited spacing figures become useful.

What a stucco control joint does—and what it cannot do

A stucco joint is an intentional, visible interruption in the plaster plane. The term describes the completed condition in the cladding, not merely the metal, vinyl, zinc, or aluminum accessory used to form it. Depending on the detail, a joint may terminate plaster, define panel boundaries, establish thickness, support drainage, or create an architectural line. Those functions are not interchangeable.

A typical stucco control joint provides a planned location where minor stresses associated with plaster shrinkage and limited thermal movement can dissipate or become localized. In lath-supported work, it divides a continuous lath-and-plaster membrane into smaller panels with defined edges. Technical stucco guidance emphasizes that the joint is a subassembly within the cladding rather than simply a lathing accessory in IIBEC’s discussion of stucco jointing.

That distinction matters. A control joint does not divide the studs, masonry wall, floor structure, or foundation. It is not a structural separation and cannot make the supporting building move independently on either side. If the underlying wall contains a designed movement joint, framing discontinuity, settlement condition, or another significant movement source, a plaster-membrane control joint alone is not a complete response.

A properly designed stucco control joint can reduce or localize random cracking. It cannot guarantee a crack-free wall. Stucco is a relatively brittle cladding, and cracking may result from several overlapping conditions:

• Movement or cracking in the supporting structure or solid substrate
• Drying shrinkage within the plaster
• Thermal expansion and contraction
• Inadequate curing or rapid moisture loss
• Continuous lath where the plaster membrane was intended to be interrupted
• Poor panel proportions
• Openings, corners, or abrupt changes in wall geometry
• Ornamental trim that bridges or obstructs a joint
• Deficiencies in materials, mixing, application, or wall-system detailing

Adding another visible groove is therefore not a substitute for identifying the movement source.

The first major distinction is substrate-first:

1. Direct-applied or bonded stucco is bonded to a solid concrete, masonry, or compatible cementitious substrate.
2. Lath-supported stucco is applied over lath and may form part of a framed drainage-wall assembly incorporating a water-resistive barrier and concealed water-management components.

These assemblies transfer and accommodate movement differently. Joint selection and layout should not begin until the assembly type is known.

Control joint vs. expansion joint: use the movement source to tell them apart

“Control joint” and “expansion joint” are sometimes mixed in retail listings and informal trade usage. Product names may even combine the terms while the product description distinguishes their functions. Stronger technical usage separates them by the source and magnitude of movement they are intended to accommodate.

A typical stucco control joint is a one-piece accessory used principally to address shrinkage and limited movement within the plaster membrane. An expansion joint—or, more broadly, a building-movement joint—is a designed separation intended to accommodate movement in the supporting wall, adjoining materials, or structure.

The distinction is not simply whether a profile has one piece or two. It depends on whether the supporting construction is continuous, what movement is expected, and which building functions must be maintained or restored across the opening.

An expansion-joint accessory is only one component of a complete movement-joint assembly. Depending on the project, that assembly may need to coordinate waterproofing, drainage, air control, fire resistance, insulation, sealants, flashing, or other enclosure functions. General movement-joint guidance likewise distinguishes relatively small material movements from designed building movement and notes that complete systems may need to restore waterproofing, fire resistance, and other performance functions across the separation in Sika Emseal’s terminology overview.

Consequently, a one-piece M-Type, Double-V, Double-J, or similar stucco accessory must not be presented as a substitute for a coordinated structural movement-joint assembly.

To classify a joint, ask:

• What is expected to move?
• Where does the discontinuity occur?
• Which enclosure functions must continue across or around it?

If only the plaster membrane is being divided to manage shrinkage, the condition may call for a stucco control joint. If the supporting wall or structure is discontinuous, the condition requires a coordinated movement-joint detail. If the feature only changes the wall’s appearance, it remains a reveal unless its complete construction meets the applicable control-joint requirements.

Start with the assembly: bonded stucco and lath-supported stucco behave differently

Direct-applied stucco is bonded to concrete, concrete masonry, brick masonry, or another compatible cementitious substrate. Lath-supported stucco is applied over an approved plaster base mechanically supported by the backing construction. On framed exterior walls, the latter commonly functions as a drainage-wall assembly rather than relying exclusively on the stucco face to resist water.

Bonded or direct-applied stucco

When stucco is well bonded to a solid substrate, the plaster and substrate tend to act together. Cracking or movement in concrete or masonry may be reflected through the bonded finish.

Third-party masonry guidance therefore states that joints in direct-applied stucco generally coincide with control or movement joints in the bonded concrete or masonry substrate. The same source says no additional control joints are required in its direct-applied block example, but that is the source’s interpretation rather than a universal rule for every assembly, project, or jurisdiction as explained by the Masonry Association of Florida.

Conditions that may alter the design include:

• Transitions between dissimilar substrates
• Existing cracks, deterioration, or uncertain bond
• Changes in wall thickness or geometry
• Project-specific architectural requirements
• Local code amendments or interpretations
• Proprietary system requirements
• Designer-specified joints
• Interfaces with openings, flashing, or other claddings

The controlling principle is that bonded stucco cannot be evaluated independently from the solid surface to which it is attached.

Lath-supported stucco

Lath-supported stucco behaves as a plaster membrane carried by lath rather than as a thin finish fully bonded to masonry. Joint planning therefore considers the panels created by the layout. Panel dimensions, area, proportion, lath termination, openings, intersections, and drainage details all become relevant.

A control joint in an independent lath-supported membrane does not necessarily have to align with a masonry control joint behind it. That statement applies only when the plaster membrane is truly independent and the supporting-wall condition does not require a coordinated building-movement joint. If a movement joint occurs in the supporting exterior wall, the stucco assembly must recognize that movement through an appropriate complete detail.

A practical decision flow is:

1. Identify the stucco assembly. Is it bonded directly to solid concrete or masonry, or applied over lath?
2. Identify the movement source. Is the concern shrinkage within the stucco, movement in the supporting wall, a material transition, or structural movement?
3. Review the project documents. Locate movement joints, panel layouts, wall sections, opening details, and specifications.
4. Choose the corresponding condition. Use a plaster control joint only where appropriate; use a coordinated building-movement assembly where the support moves.
5. Coordinate intersecting work. Confirm how the water-resistive barrier, flashing, drainage path, trim, and sealants interact with the interruption.

This sequence avoids two common errors: applying lath-supported spacing figures indiscriminately to bonded stucco and placing a one-piece control-joint accessory over a structural movement condition.

How to check commonly cited spacing, area and panel proportions

Common spacing figures can be useful preliminary checks for lath-supported stucco, but they are often repeated without identifying the ASTM edition, adopted code, jurisdiction, or assembly type. They should not be treated as universal current requirements.

Historical and secondary sources attribute the following checks to versions of ASTM C1063 used for lath-supported plaster:

• No panel dimension greater than 18 feet
• No wall-panel area greater than 144 square feet
• No panel length-to-width ratio greater than 2.5:1
• A 100-square-foot limit for horizontal, curved, or angular applications

A reproduced technical summary presents all four figures together, but it is secondary material rather than the official text of a current adopted standard in the cited Portland Cement Association guidance. The applicable standard edition and local code must be checked before these figures are used for compliance.

All applicable criteria must be evaluated simultaneously. Meeting the 18-foot dimension does not, by itself, make a panel acceptable.

Calculation formulas

Use the actual dimensions of each proposed panel.

Panel area

Area = Length × Width

Aspect ratio

Aspect ratio = Longer dimension ÷ Shorter dimension

For an irregular panel, a bounding rectangle may help identify an obvious concern, but it does not replace project-specific evaluation of openings, offsets, curves, and stress concentrations.

Example 1: an 18-by-8-foot wall panel

Area

18 × 8 = 144 square feet

Aspect ratio

18 ÷ 8 = 2.25

The panel reaches the commonly cited 144-square-foot wall-area limit, does not exceed 18 feet in either direction, and has a 2.25:1 aspect ratio. Numerically, it fits the quoted checks.

That result does not establish a final compliant layout. Openings, transitions, substrate movement, geometry, project details, and the governing standard may still require another arrangement.

Example 2: an 18-by-10-foot wall panel

Area

18 × 10 = 180 square feet

Aspect ratio

18 ÷ 10 = 1.8

Neither dimension exceeds 18 feet, and the aspect ratio is below 2.5:1. The panel nevertheless contains 180 square feet, exceeding the commonly cited 144-square-foot wall-panel limit. This is why “joints every 18 feet” is not a sufficient layout rule.

Example 3: a 16-by-4-foot wall panel

Area

16 × 4 = 64 square feet

Aspect ratio

16 ÷ 4 = 4

The panel is below 144 square feet, and neither dimension exceeds 18 feet. Its 4:1 aspect ratio nevertheless exceeds the commonly cited 2.5:1 limit. A long, narrow panel can therefore fail the proportion check even when its area is small.

What about a 60-foot wall?

A 60-foot wall cannot be evaluated simply by dividing its length by 18 and placing joints at the resulting intervals. It must be divided into panels whose individual dimensions, areas, and proportions pass the applicable checks.

Suppose the wall is 10 feet high. Panels 15 feet wide would each contain:

15 × 10 = 150 square feet

That exceeds the commonly cited 144-square-foot wall-panel figure. Narrower panels may satisfy the area check, but final locations must still account for doors, windows, corners, transitions, building-movement joints, drainage, and visual alignment.

Openings complicate the calculation. A door or window does not automatically become a compliant panel boundary, and subtracting its area from a gross wall rectangle does not necessarily address stress concentrations at the corners. The designer must determine how the membrane is divided and how the joint details interact with flashing and trim.

Before treating any calculated layout as compliant, verify:

• The locally adopted building code
• The officially referenced standard and edition
• Whether the provision applies to the particular stucco and lath assembly
• Project drawings and specifications
• Approved wall-system details
• Manufacturer instructions
• Local amendments and interpretations
• Any engineered or otherwise approved alternative

The familiar figures are preliminary reference checks, not substitutes for governing documents.

Who determines joint locations and what the layout must coordinate

Generic spacing criteria are only one design input. Technical and manufacturer guidance places responsibility for joint type and location with the designer and calls for joint locations and details to appear in the drawings or contract documents. IIBEC’s technical paper expressly assigns the indication of stucco-joint locations and details to the designer.

The layout must coordinate more than maximum panel spacing. Relevant conditions include:

• Bonded versus lath-supported construction
• Expected substrate or structural movement
• Plaster shrinkage and thermal exposure
• Panel dimensions, areas, and proportions
• Wall height, length, curves, soffits, and offsets
• Window and door openings
• Inside and outside corners
• Changes in framing or furring direction
• Dissimilar materials and cladding transitions
• Flashing, drainage, and the water-resistive barrier
• Architectural reveals and finish patterns
• Foam trim, bands, columns, and other ornamentation
• Product lengths, intersections, and terminations

A historical ASTM C1063 excerpt called for an expansion joint where one occurred in the supporting exterior wall and for a control joint where ceiling framing or furring changed direction in the reproduced provisions. These are useful coordination flags, but the current governing language must be verified before they are treated as project requirements.

Openings and corners deserve attention because they change panel geometry and concentrate stress, but that observation does not establish a universal joint location. The complete wall detail controls.

Ornamental work presents another common conflict. Foam plant-on trim or a similar feature can impede movement if it bridges the interruption. The visible plaster may appear divided while the decoration restrains movement across the joint. The project detail should show how the trim terminates or separates at that condition.

Responsibility checklist

An installer should not be expected to invent the layout by applying a generic 18-foot grid. Conversely, a line on an elevation is not a complete detail unless the documents also explain what happens to the lath, plaster edges, drainage components, intersecting accessories, and supporting construction.

Adding more joints does not automatically improve performance. Every interruption introduces another condition that must be aligned, terminated, and coordinated with water management.

Profiles, materials and features to compare before buying

Control-joint accessories are available in multiple shapes because different details require different plaster terminations, reveal appearances, corner conditions, and attachment methods. Product names are not perfectly standardized, so compare product drawings and dimensions rather than relying on a listing title alone.

Manufacturer catalogs document stucco and related exterior-finish profiles in galvanized metal, vinyl or PVC, and zinc alloy, including Double-V, Double-J, inside-corner, reveal, removable-tape, embeddable-flange, and drip-screed configurations in ClarkDietrich’s control-joint catalog. Extruded aluminum is also available for architectural channel screeds.

The evidence does not establish vinyl, galvanized steel, zinc alloy, or aluminum as universally best. Selection should be based on the approved assembly and project conditions, including:

• Exterior exposure and corrosion risk
• Coastal or chemically aggressive environments
• Contact between dissimilar metals
• Plaster chemistry
• Finish and color requirements
• Sealant compatibility where sealant is specified
• Wall-system approval
• Required profile dimensions
• Product availability and lead time
• Compatibility with intersecting trims and accessories

Descriptions of corrosion resistance, stress relief, or improved keying are manufacturer claims. They are useful for comparison but do not independently prove long-term performance in every exposure.

Ground depth and plaster thickness

The ground is the accessory dimension used to establish plaster thickness. It must correspond to the designed plaster assembly. A ground suitable for one proprietary or multilayer system should not be assumed suitable for another.

As a product-specific example, AMICO lists standard vinyl M-Type joints in 10-foot lengths with 3/8-, 1/2-, 5/8-, 3/4-, and 7/8-inch grounds. Its deep M-Type profile includes returns intended to improve stucco keying around the accessory in the manufacturer’s product data. Those dimensions and features apply to the listed products, not every M-Type joint.

Tape, flanges, clips, and custom shapes

Removable tape protects the joint opening from plaster during application. It helps preserve a clean groove and should be removed or handled in accordance with the selected product’s instructions.

Documented accessory options include:

• Embeddable flanges
• Connector clips for alignment
• Custom-fabricated intersections
• Curved profiles for radius conditions
• Vented soffit configurations
• Combination drip and casing features
• Architectural reveals in multiple depths and widths

Fry Reglet, for example, offers an extruded-aluminum Channel Screed that establishes plaster thickness and can be fabricated for custom intersections, curves, or vented soffits. The manufacturer states that the profile qualifies as a stucco or plaster control joint only when installed in accordance with ASTM C1063 on its Channel Screed product page.

The purchasing lesson is straightforward: a reveal’s shape, width, color, or material does not establish its movement-control function. Qualification depends on the complete construction behind and around it.

Installation principles that define a functioning control joint

For a true control joint in lath-supported stucco, the lath-and-plaster membrane must be discontinuous. If the lath continues through the joint, the visible accessory may not provide the intended separation between plaster panels.

Historical ASTM C1063 language reproduced in a 2015 white paper states that lath “shall not be continuous through control joints” but must stop and be tied at each side. The same excerpt permits either a single prefabricated member or back-to-back casing beads with a flexible barrier membrane and quotes a minimum separation of 1/8 inch, unless anticipated thermal exposure requires more in the reproduced historical provisions.

The underlying principle is more important than memorizing a legacy section number: if a joint is intended to accommodate movement within the lath-and-plaster membrane, that membrane must terminate on both sides of the planned interruption.

This also explains why a decorative channel cannot be judged from the finished face. A channel screed or architectural reveal functions as a control joint only when the construction behind it—including lath termination, plaster termination, accessory installation, and any required membrane treatment—meets the applicable requirements.

Attachment must follow the selected product and detail

AMICO instructs users of its M-Type control joints to wire-tie the accessory to the lath rather than fasten it to the structure. The manufacturer explains that this keeps the control joint functioning as part of the plaster assembly. That is manufacturer guidance for those products, not a universal fastening schedule for every accessory or wall system.

Do not infer a tie interval, fastener type, fastening schedule, sealant requirement, water-resistive-barrier treatment, or ground selection from that general principle. Those requirements must come from the approved project detail, applicable standard, selected wall system, and product instructions.

Practical quality checks

The following are document and field-verification points, not a universal installation procedure:

• Confirm that the selected profile matches the specified joint type.
• Verify that its ground matches the designed plaster thickness.
• Check line and alignment before plaster conceals the flanges.
• Confirm that flanges, clips, and attachments are treated as required by the approved detail.
• Verify that the intended joint opening remains free of plaster contamination.
• Confirm that lath terminates on both sides where a true control joint is detailed.
• Check intersections and terminations against the approved drawings.
• Handle and remove protective tape according to product instructions.
• Verify coordination with openings, casing beads, corners, screeds, and adjoining claddings.
• Confirm how the detail maintains the drainage path and water-resistive-barrier construction.

Inspection should therefore consider the subassembly while it remains visible.

The approved instructions for the selected accessory and wall system should govern attachment, splicing, intersections, terminations, and drainage-plane treatment. If the documents conflict or omit a condition, obtain clarification rather than improvising on the wall.

Water management, curing and the final verification checklist

A stucco joint interrupts the cladding and may become a leakage path if the complete condition does not manage water correctly. Industry guidance specifically warns that installed joints can increase leakage risk when they are not properly detailed in the Masonry Association of Florida’s discussion.

The available evidence does not establish that every control-joint groove must be sealed or that every groove must remain open. Some profiles or assemblies may call for sealant at specified locations; others may use an open reveal with concealed water-management components. The correct treatment must come from:

• The approved wall-system assembly
• Manufacturer instructions
• Project drawings and specifications
• Compatible sealant requirements, where applicable
• Water-resistive-barrier and flashing details
• Local code and authority requirements

Do not add or omit sealant solely because a groove is visible or a product is labeled “control joint.” The specified assembly must determine the treatment.

What can still cause cracks?

Correct accessory selection does not eliminate other cracking mechanisms. Problems may remain where there is:

• Structural settlement or supporting-wall movement
• Cracking in bonded concrete or masonry
• Excessive plaster shrinkage
• Thermal movement beyond the joint’s intended scope
• Poor curing or rapid moisture loss
• Continuous or obstructed lath
• Plaster contamination within the joint opening
• Poorly proportioned panels
• Trim or other features that bridge the interruption
• Uncoordinated openings, corners, or transitions

Curing is important because control joints cannot compensate for deficient plaster development. AMICO’s technical guidance describes moist curing of the brown coat as supporting hydration and strength and improving the finish coat’s capacity to accommodate strain in its technical discussion of M-Type joints. This remains manufacturer guidance, but it reinforces an important boundary: jointing and curing address different aspects of performance, and neither replaces the other.

Pre-purchase checklist

Before selecting or ordering an accessory:

• [ ] Identify whether the stucco is bonded or lath-supported.
• [ ] Locate movement joints in the supporting wall or structure.
• [ ] Obtain the designed joint and panel layout.
• [ ] Confirm the intended function: plaster control, building movement, perimeter separation, drainage, or decoration.
• [ ] Confirm the designed plaster thickness and required ground.
• [ ] Select a compatible profile and material.
• [ ] Review exposure, corrosion, dissimilar-metal, finish, and sealant conditions.
• [ ] Confirm required intersections, corners, curves, clips, or venting.
• [ ] Verify the governing standard and edition.
• [ ] Check product availability, lengths, and lead times.
• [ ] Confirm approval for the selected wall system.

Pre-installation document checklist

Before work begins, assemble and reconcile:

• [ ] The locally adopted building code
• [ ] The officially referenced standard and applicable edition
• [ ] Approved architectural and structural drawings
• [ ] Project specifications
• [ ] Approved stucco and wall-system details
• [ ] Product data, submittals, and installation instructions
• [ ] Water-resistive-barrier, flashing, and drainage details
• [ ] Sealant specifications where sealant is required
• [ ] Local amendments and authority requirements
• [ ] Written clarifications for missing or conflicting conditions

The substrate-first summary is simple: determine whether the stucco is bonded or lath-supported, distinguish shrinkage within the plaster membrane from movement in the supporting wall, and evaluate the joint as a complete subassembly rather than as a visible accessory alone.

The familiar 18-foot, 144-square-foot, 100-square-foot, and 2.5:1 figures are historically quoted reference checks associated with particular lath-supported conditions. They are not universal layout instructions. Final authority rests with the locally adopted code and referenced standard edition, together with approved drawings, specifications, system details, manufacturer instructions, and qualified project professionals.

This article provides general reference information, not engineering, contracting, inspection, code-compliance, or project-specific installation advice.

Frequently asked questions about stucco control joints

What is the maximum spacing for stucco control joints?

For lath-supported stucco, historical and secondary sources commonly attribute to ASTM C1063 a maximum of 18 feet between control joints in either direction. The same quoted criteria limit wall panels to 144 square feet and a 2.5:1 length-to-width ratio, with a historically quoted 100-square-foot limit for horizontal, curved, or angular applications in the reproduced technical guidance.

These are simultaneous checks, not independent alternatives. A panel may require closer joints even when neither dimension exceeds 18 feet. Verify the current adopted standard edition, code, specifications, and project layout before applying the figures.

Does metal lath need to stop at a stucco control joint?

For a true control joint intended to interrupt a lath-and-plaster membrane, the historically quoted ASTM language requires lath to stop and be tied at each side rather than continue through the joint. Independent technical guidance likewise identifies discontinuous lath and stucco as fundamental to a shrinkage-movement joint in StuccoMetrics’ control-joint discussion.

Follow the approved project detail and selected product instructions. Do not assume that every decorative reveal is a control joint or apply this principle indiscriminately to another type of movement-joint assembly.

Can a stucco control joint replace an expansion joint?

No. A typical one-piece stucco control joint addresses shrinkage and limited movement within the plaster membrane. An expansion or building-movement joint addresses movement in the supporting wall, adjoining materials, or structure.

Where a movement joint occurs in the supporting construction, use a coordinated assembly that continues or restores the required enclosure functions. An M-Type, Double-V, Double-J, or similar accessory cannot by itself substitute for that assembly.

Does every stucco control joint need sealant?

The evidence does not support a universal yes or no. Sealant requirements depend on the joint profile, approved wall assembly, manufacturer instructions, project details, exposure, drainage strategy, and compatible sealant specification.

Do not automatically fill an open groove or automatically leave it unsealed. Obtain the specified detail showing how the water-resistive barrier, flashing, drainage path, and visible joint are intended to work together.

Can a channel screed or decorative reveal serve as a control joint?

Yes, but only when the complete construction qualifies—not merely because it creates a visible recess. The profile, lath termination, plaster termination, attachment, intersections, and concealed membrane treatment must satisfy the applicable requirements.

A channel screed used only to establish thickness or create a decorative line remains an architectural reveal. It should be called a control joint only when the selected product and its installation are approved for that function.
