How the Upper Flashing Layer Keeps Water Out of Roof Joints

How the upper flashing layer keeps water out of roof joints

By Mortar Desk · Published August 14, 2026 · Editorially reviewed August 14, 2026

Editorial note: This article explains general roofing terminology using published manufacturer, contractor, inspection, and trade guidance. It has not been represented as a project-specific engineering, code-compliance, or repair review.

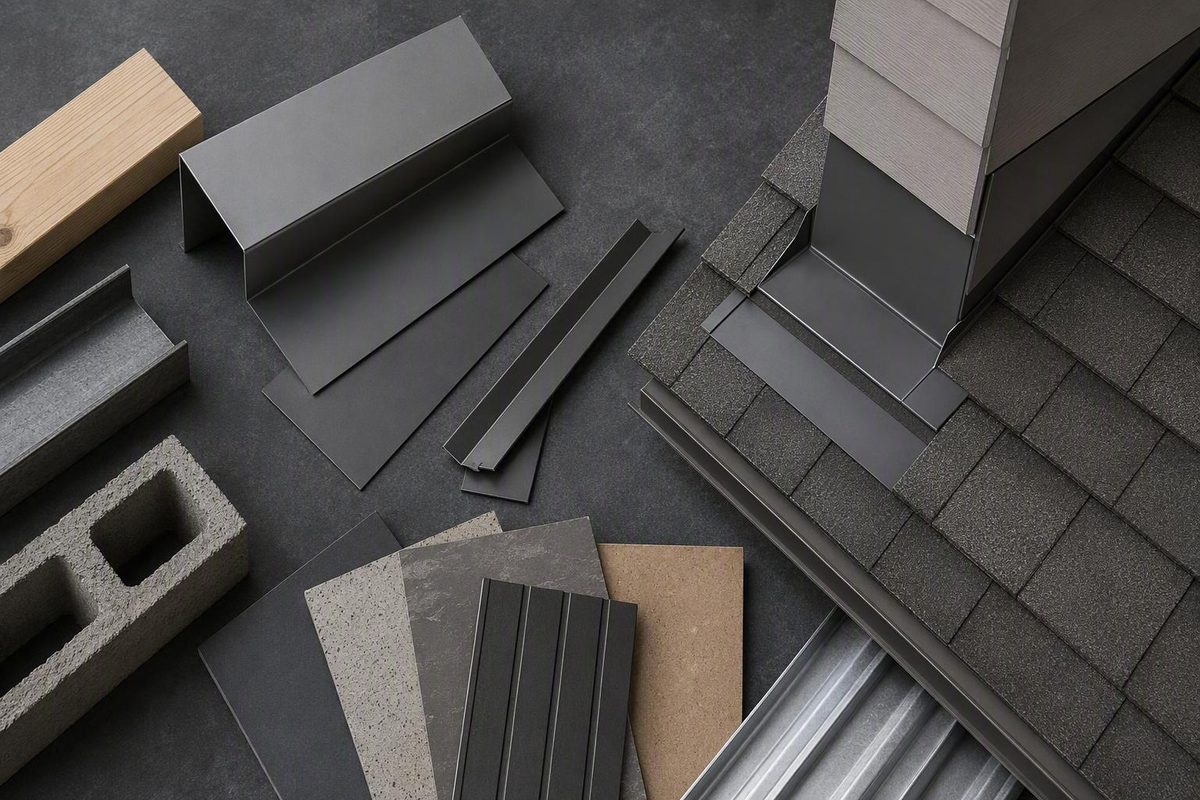

Counter flashing in plain English

Counter flashing is the upper protective layer that covers the wall-side top edge of lower flashing where a roof meets a wall, chimney, or similar vertical surface. It overlaps base, step, apron, or comparable flashing so rain runs onto the roof instead of slipping behind the joint.

In a typical arrangement, the lower flashing connects the roof covering to the vertical surface. Its upper edge would remain vulnerable if water could run behind it. Counter flashing covers that edge and directs runoff outward, reducing the chance that moisture will reach concealed roof or wall components. The Interlock Roofing definition of counter flashing describes it as a secondary layer of metal or another waterproof material installed over base flashing.

Think of the arrangement as a raincoat laid over a seam. When the upper part of the raincoat overlaps the lower part, water runs down the outside. If the lower layer is placed over the upper one—or the seam opens—water can enter. Counter flashing works on the same basic principle: the upper layer laps over the lower layer in the direction of drainage.

Counter flashing is commonly made from sheet metal, but material alone does not define it. Its position and function do. In some assemblies, another waterproof component or the exterior wall covering protects the top edge of the lower flashing. InterNACHI notes that wall-covering material can serve as counter flashing, so a separate exposed strip of metal is not present at every roof-to-wall junction.

Three points provide a useful working definition:

• It is generally the upper flashing layer at a vertical surface.
• It overlaps and protects the wall-side edge of lower flashing.
• It helps keep runoff on the exterior drainage path.

Counter flashing is not a stand-alone guarantee against leaks. It belongs to a layered water-shedding assembly that can also include roof covering, base or step flashing, membranes, wall drainage components, masonry, cladding, sealant, and corner pieces. If the lower flashing is absent, damaged, or incorrectly integrated, an intact-looking upper layer cannot make the complete joint reliable.

How the overlapping layers shed water

Counter flashing works primarily by arranging materials so gravity carries water down and outward. The intended route is straightforward:

1. Rain travels down the wall, chimney, or other vertical surface.
2. It reaches the counter flashing and flows over its face.
3. The counter flashing projects over the upper edge of the lower flashing.
4. Water drops or drains onto base flashing, step flashing, apron flashing, or the roof covering.
5. It continues downhill with the rest of the roof runoff.

This is a drainage strategy rather than an attempt to glue every joint into one permanently sealed mass. Sealant may protect an upper termination, close an appropriate joint, or support a specified detail, but the primary defense is the sequence of downward-facing overlaps. If sealant moves, shrinks, or separates, a correctly arranged lap still provides a physical drainage path. By contrast, a detail that depends entirely on an exposed bead of sealant becomes vulnerable when that bead fails.

A brick chimney provides the clearest example. Lower flashing meets or integrates with the shingles around the chimney base. Along a sloped side, that lower layer may consist of individual step-flashing pieces. Counter flashing is attached to or embedded in the masonry above and hangs down over the wall-side tops of those pieces. IKO describes chimney flashing as a two-part arrangement in which counter flashing is embedded in masonry and sits over base flashing.

The following cross-section shows the concept, not a universal construction detail:

ILLUSTRATIVE CONCEPTUAL CROSS-SECTION — NOT TO SCALE

          WALL OR CHIMNEY
          │
 rain ↓   │
 runoff ↓ │   upper termination / embedment
          │  ┌──────── COUNTER FLASHING
          │  │
          │  │      ↓ runoff
          │  └──────────────┐
          │        OVERLAP  │
          │    ┌────────────┘  BASE OR STEP FLASHING
          │    │
          │    └───────────────┐
          │       SHINGLES      │  ↓ runoff down roof
          └─────────────────────┴────────────────────
                                sloped roof

The drawing is intended only to show which layer is above the other and how runoff should remain outside the joint.

Several conditions influence whether the overlap performs as intended:

• Adequate, continuous overlap: The upper layer must continue over the lower flashing without leaving an easy route behind it.
• Secure attachment or embedment: Wind, movement, or deterioration of the supporting material should not pull the flashing away.
• Continuous corner treatment: Inside and outside corners require compatible transitions rather than disconnected straight pieces.
• Stable surrounding material: Loose mortar, cracked stucco, damaged siding, or moving masonry can compromise the flashing termination.
• Accommodation of movement: Roof, wall, masonry, and metal components can move differently, so the applicable detail must account for the complete assembly.
• Functional lower flashing: Base, step, or apron flashing must still be present and correctly connected to the roof covering.

The last point is especially important. Counter flashing protects the upper edge of the lower layer; it does not replace that layer. Installing new metal over missing or incorrectly integrated step flashing does not create the same drainage path as a complete flashing system.

Counter flashing vs. base, step and apron flashing

Flashing terms describe different positions and jobs. Although several pieces may appear together around one chimney, they are not interchangeable.

Base flashing is the underlying component installed at the roof surface. Depending on the assembly, it may be one formed piece, part of a pan, or a broader category covering lower flashing around a chimney. It must connect with the roof covering so water does not simply pass beneath it.

Step flashing is used along a sloped intersection. Instead of relying on one long piece, it uses successive overlapping sections. Each section works with a course of roofing so water moves from one layer to the next as it travels downhill. The distinction is positional: step flashing manages the sloped roof-to-wall line, while counter flashing protects its exposed wall-side upper edge. This difference is also reflected in the Helix Metalforming comparison of step and counter flashing.

Apron flashing is a bounded rather than universal term. It commonly refers to lower flashing across the downslope face of a chimney or wall—the side first encountered when looking uphill. It directs water away from that face and back onto the roof. Depending on the design, counter flashing may cover its upper edge.

Counter flashing is therefore not simply “all the metal visible around a chimney.” A chimney can have apron flashing at its lower face, step flashing along its sides, another drainage detail at the uphill side, and counter flashing protecting the masonry-side edges of several components. Some pieces may be concealed from ordinary view.

Terminology varies among manufacturers, trades, and assembly types. “Base flashing” may be used broadly in one document and more narrowly in another. Product names can describe a shape without fully describing its role in the wall and roof system. When evaluating a drawing or quotation, ask what each component does and which layer it overlaps rather than relying on the label alone.

Where counter flashing is commonly found

Masonry chimneys are the most familiar location. At many brick or stone chimneys, the visible upper metal is attached to or set into the masonry and extends over the flashing below. That is often counter flashing—but it is a practical identification rule, not a guarantee based on appearance alone.

Other common locations include:

• Roofs meeting brick, block, stone, or stone veneer
• Roof-to-wall transitions finished with stucco
• Parapet walls
• Dormer sidewalls and fronts

• Skylight curbs

• Selected transitions involving metal panels or other wall systems

At a sloped wall intersection, the counter flashing may follow a stair-step pattern or form a protective cover over a line of individual step-flashing pieces. The visible upper pieces and concealed lower pieces work together. At a straight headwall or downslope chimney face, the lower flashing may instead be more continuous.

The exact configuration changes with the vertical material. Masonry may permit an upper edge to terminate in a mortar joint or purpose-cut groove. A proprietary wall or roof system may use a receiver or another designed component. These conditions should not be assumed equivalent simply because the exposed metal looks similar.

Siding and other exterior wall coverings add another variation. If the wall covering laps over and protects the upper edge of the lower flashing, it may perform the counter-flashing function without a separate exposed strip. That does not mean every sided wall automatically has a correct detail; it means the function can be performed by more than one type of component.

From the ground, look for an upper layer that appears to originate at the wall or chimney and overlap metal nearer the shingles. Do not rely on color, shape, or visibility alone. What appears to be counter flashing may be part of a larger profile, and the important lower edge may be concealed by shingles, siding, masonry, or another piece.

Reglet-cut, mortar-joint, surface-mounted and other configurations

Counter-flashing configurations are often described by where the upper edge terminates and how it is held against the vertical surface. Those terms do not, by themselves, establish that a particular installation is suitable.

With reglet-cut counter flashing, the upper edge is inserted into a purpose-cut groove in masonry and the exposed leg turns down over the lower flashing. A mortar-joint configuration instead uses an existing masonry joint. InterNACHI’s inspection guidance shows that masonry counter flashing may be inserted into mortar joints or into a groove cut in brick, with the termination then appropriately sealed.

The mortar, termination treatment, and flashing must work together. If the mortar is loose or incomplete, adding sealant to the face may not restore the flashing’s original support, embedment, or continuity.

Surface-mounted counter flashing is fastened to the wall face rather than inserted into it. Its upper edge is sealed to limit water entry behind the metal. Because that edge remains exposed, the arrangement generally depends more heavily on the continuing condition of the termination sealant. This does not make every surface-mounted detail defective; it makes the upper termination a prominent maintenance and evaluation point.

Counter flashing is also supplied in one-piece, two-piece, reglet, surface-mounted, and through-wall configurations. Metal-Era, for example, lists one- and two-piece products in several termination formats. These categories demonstrate the available variety, not that one product family is appropriate for every roof.

Selection depends on factors such as:

• Wall and substrate material
• Roof slope and geometry
• Runoff and weather exposure
• Thermal and building movement
• Condition of existing masonry or cladding
• Roof-covering type
• Adjacent metals and membranes
• Corner and end conditions
• Project specifications
• Manufacturer details
• Applicable local requirements

For those reasons, there is no universal overlap dimension, fastening pattern, groove depth, or cutting method for every counter-flashing installation. A detail intended for one masonry wall cannot automatically be transferred to stucco, siding, a proprietary wall system, or a different roofing product.

Materials and compatibility considerations

Commonly cited counter-flashing metals include:

• Aluminum
• Galvanized steel
• Copper
• Stainless steel

Other waterproof materials may perform the same upper-layer function, and wall cladding can sometimes cover the lower flashing in place of a separate exposed metal piece.

No one metal is universally best. Material choice has to account for the roof covering, wall system, masonry conditions, exposure, movement, fabrication requirements, expected service, and adjacent components.

Metal compatibility deserves particular attention. Where moisture is present, incompatible adjacent metals or materials can contribute to corrosion. A replacement should therefore be evaluated with the roof covering, fasteners, masonry, sealants, coatings, and concealed components in mind. Contractor technical guidance on flashing materials likewise treats compatibility as an assembly-level consideration.

Visible conditions that justify closer evaluation include:

• Rust or other corrosion
• Pitting
• Worn or peeling coatings
• Warping or buckling
• Loose or missing sections
• Distortion that opens the overlap

These observations can indicate that the material or assembly is no longer performing as intended, but appearance alone does not establish the cause. Corrosion may involve coating loss, prolonged wetting, incompatible materials, or another condition. Diagnosis requires examining the relationship between components, not only the exposed face.

Common failure signs and leak pathways

A homeowner can look for visible warning signs without assuming that every irregularity proves a leak. From a safe location, check for:

• Open gaps at the upper termination
• Counter flashing pulled away from the wall
• Loose, lifted, or separated metal
• Missing sections
• Joints that no longer overlap
• Cracked, shrunken, missing, or detached sealant
• Deteriorated, loose, or incomplete mortar
• Corrosion, pitting, or failed coatings
• Loose or missing fasteners
• Bent, buckled, or distorted pieces
• Open seams or incomplete treatment at corners
• Debris interfering with the visible drainage path

Related clues can appear away from the visible flashing. Staining on a chimney, dampness in an attic, discolored ceilings, peeling finishes, or moisture near a roof-to-wall intersection may justify investigation. These symptoms do not prove that counter flashing is the sole cause.

A typical leak pathway starts at a failed upper termination. Water enters behind the counter flashing, reaches the wall-side edge of the lower flashing, and bypasses the intended overlap. From there, it may reach concealed roofing, wall, or masonry components. Another pathway can begin at an open corner or end joint, where runoff travels around rather than over the flashing.

Visible metal can also be intact while the assembly beneath it is defective. Possible concealed problems include:

• Missing or damaged step flashing
• Lower flashing installed in the wrong sequence with the roof covering

• Open joints behind the visible upper layer

• Incomplete corner treatment

• Roofing deterioration adjacent to the flashing
• Loose substrate or damaged masonry

A sealant-only patch is therefore limited. Sealant may be appropriate for a specifically designed termination or an isolated maintenance condition, but it cannot create missing overlap, replace secure attachment, rebuild deteriorated mortar, restore corroded metal, complete an open corner, or install absent step flashing. Guidance distinguishing the flashing types similarly treats sealant as secondary to correct laps and mechanical detailing.

Additional sealant should not be assumed to correct an unidentified leak path. The appropriate response depends on what failed and how the assembly was intended to drain.

Ground-level inspection also has clear limits. Lower flashing may be concealed by shingles, while the upper termination may be hidden by mortar, siding, or stucco. Corners can be difficult to see, and moisture damage may remain behind finishes. Visible counter-flashing damage should therefore be treated as evidence about one part of a larger assembly, not as a complete diagnosis.

Inspection, repair and project-specific limits

Begin by separating observation from investigation.

Safe observation may include viewing the joint from the ground, through a window, from an accessible interior area, or through photographs taken without climbing. Note where gaps, staining, corrosion, or displaced pieces appear. Record whether symptoms occur during wind-driven rain, ordinary rainfall, or snowmelt, but do not treat timing as definitive proof of the entry point.

Do not climb onto a roof or disturb masonry when the access, equipment, or work is outside your competence. IKO’s flashing guidance is directed to trained contractors and emphasizes professional installation, safety requirements, and applicable local rules.

The appropriate repair depends on the scope of the defect:

• An isolated, compatible termination-seal defect may call for a different response than loose metal.
• Loose counter flashing may require attention to both attachment and the substrate.

• Failed mortar may require masonry work before the flashing can be secured.

• Moisture behind the assembly may justify investigation of membranes, sheathing, framing, or interior finishes.

Replacing or resealing the visible counter flashing alone cannot be assumed to stop a leak originating in defective lower flashing or elsewhere on the wall or roof. Chimney repairs may involve both base-flashing and counter-flashing components, which is why the exposed upper layer should not be assessed in isolation.

Evaluation by an appropriately qualified roofing or masonry professional is prudent when there is active leakage, unsafe access, deteriorated masonry, extensive corrosion, repeated termination failure, displaced metal, or a suspected defect involving concealed layers. Professional input is also appropriate when a repair crosses roofing, masonry, stucco, siding, or waterproofing trades.

Chimney and brick-wall details can require coordination. A roofer may need access to lower flashing beneath the roof covering, while a mason may need to repair joints or provide a sound termination. A detailed brick-to-roof assembly published by Pro Remodeler demonstrates the coordination that can be required between masonry and roofing work.

Do not apply a universal rule for overlap, fastening, inspection frequency, reuse, or replacement. Check the applicable local code, project specification, roof-system manufacturer instructions, and approved construction details. Codes and specifications vary by locality and edition, as explained in Mortar Desk’s reference scope; that general statement does not establish the requirements for any particular jurisdiction.

Existing counter flashing is not automatically suitable for reuse during reroofing, nor must every sound component automatically be discarded.

The simplest identification rule remains useful: counter flashing is generally the upper layer that laps over lower roof flashing at a wall, chimney, or comparable vertical surface. Its performance, however, comes from the complete water-shedding assembly—not from visible metal or caulk alone. Comparison by position and function, followed by a cautious warning-sign check, can help a homeowner understand what is visible without turning that observation into a project-specific diagnosis.

Mortar Desk provides general building-material reference information, not contracting, engineering, code-compliance, or individual repair advice. Specifications change and codes vary locally, so details should be checked against the requirements and manufacturer instructions applicable to the project.

Frequently asked questions about counter flashing

Is counter flashing the same as step flashing?

No. Step flashing consists of overlapping pieces used along a sloped roof-to-wall intersection, commonly integrated with successive roof-covering courses. It carries water downhill along the joint.

Counter flashing is the upper layer at the wall. It covers and protects the exposed wall-side edge of the step flashing. The two components often work together, but they occupy different positions and are not interchangeable.

Does every roof-to-wall joint need a separate metal counter-flashing piece?

No. A joint needs an appropriate means of protecting the upper edge of its lower flashing, but that function does not always require a separate exposed metal strip. Siding, another exterior wall covering, a receiver, or a different waterproof component may perform the counter-flashing role.

Whether a particular assembly needs separate metal counter flashing depends on its wall material, roof system, drainage design, manufacturer details, project specifications, and applicable requirements.

Is caulk enough to repair counter flashing?

Not necessarily. Caulk or another approved sealant may be part of an upper termination or may address a limited seal defect. It does not replace correct overlap, secure attachment, sound mortar, continuous corners, compatible materials, or functional base and step flashing.

If the metal is loose, the masonry has deteriorated, a corner is open, or the lower flashing is defective, applying sealant alone does not correct the underlying condition.

Can counter flashing fail even when the visible metal looks intact?

Yes. Water may enter through a concealed upper termination, open end, failed corner, deteriorated mortar joint, or defect behind the visible metal. The base or step flashing underneath may also be missing, damaged, or incorrectly integrated with the roofing.

An intact face therefore shows only that the exposed portion has no obvious damage. It does not confirm the condition of concealed attachments, membranes, overlaps, or lower flashing.

How long does counter flashing last?

There is no fixed service life for every assembly. Rhoden Roofing reports a general 20-to-30-year range, while qualifying that estimate according to material, manufacturing quality, installation, maintenance, and whether the flashing was reused during earlier roof work. Its reported counter-flashing service-life estimate should therefore be treated as contractor guidance, not a universal replacement interval.

Actual condition is more useful than age alone. The surrounding roof, masonry, fasteners, coatings, sealants, adjacent metals, movement, and concealed lower flashing can all affect whether the system remains serviceable.
