What to Check Before You Build a Tile Assembly With Foam Board

Foam backer board can make a tile project easier to carry, cut, and waterproof—but only when it is selected and installed as part of a documented system. The word waterproof on a panel does not make open seams, screw holes, pipe penetrations, or transitions watertight.

The right buying question is not simply, “Is this board waterproof?” It is:

Is this exact panel, at this thickness, over this support, with this fastening pattern, joint treatment, mortar, waterproofing detail, tile, load, and exposure, approved as a complete assembly?

That distinction matters in showers, but it also applies to tub surrounds, backsplashes, floors, countertops, ceilings, niches, benches, steam rooms, and exterior work.

Editorial review: August 23, 2026. This guide synthesizes manufacturer and trade documentation, much of which is product-specific or manufacturer-authored. Current manufacturer instructions, locally adopted requirements, and project-specific professional advice control.

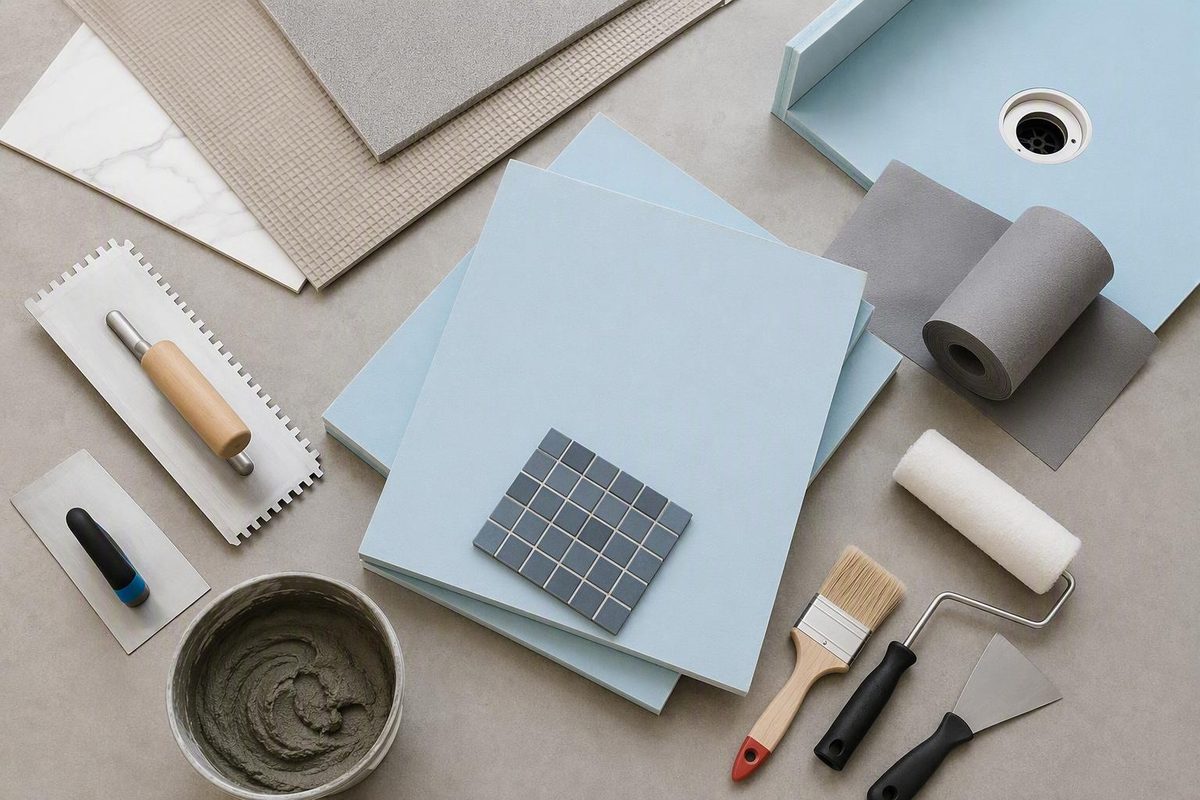

What foam tile backer board is—and what it is not

Foam tile backer board is a purpose-built substrate manufactured to receive tile-setting mortar. It is not ordinary rigid-foam insulation cut to fit between studs or laid over a floor.

A typical panel combines a foam core with surfaces engineered to bond to mortar. Depending on the product, those surfaces may be reinforced, cementitious-coated, resin-mortar-coated, fleece-faced, or covered by a reinforced membrane. The core may be extruded polystyrene, polyisocyanurate, or another specified foam.

Construction is not uniform across the category. A trade overview describes products using XPS with fiberglass mesh and polymer-resin mortar, polyisocyanurate foam, XPS with reinforced membranes, and XPS with reinforcement and fleece webbing. Those differences affect application approval, attachment, seam treatment, and exposure limits—not just product terminology. ProInstaller’s backer-board overview illustrates this product-to-product variation.

A purpose-built foam board can perform two related roles:

1. Tile substrate: It creates a mortar-compatible surface over an approved wall, floor, counter, or other supporting structure.
2. Waterproofing-system component: If the manufacturer expressly approves that use, the panel can become part of a waterproof assembly after every required seam, fastener, penetration, and transition has been completed.

The board is not structural framing. It does not replace studs, joists, blocking, structural sheathing, or reinforcement for mounted fixtures. Do not rely on its foam core alone to support grab bars, glass-door hinges, handrails, cabinets, floating benches, heavy stone, or other concentrated loads. Confirm the required backing and attachment method before closing the wall. Product-specific support, fastening, and movement-joint instructions are essential because backer-board requirements are not interchangeable.

Do not infer the specification from appearance. Similar-looking panels may differ in:

• Core material and density
• Face reinforcement or coating
• Panel thickness and dimensions
• Direct-to-stud approval
• Floor, countertop, or ceiling approval
• Wet-area and steam-room limits
• Fastener and washer requirements
• Permitted framing or joist spacing
• Mortar and joint-treatment requirements
• Tile-size or load restrictions
• Exterior or submerged-use approval

Generic insulation foam should not be substituted merely because it is rigid, closed-cell, or water resistant. Unless it is expressly manufactured and documented as a tile substrate for the intended application, it does not have a verified mortar-facing system or installation method.

Waterproof panel versus waterproof assembly

A waterproof panel is not automatically a waterproof assembly. Water does not need to travel through the middle of an intact panel if it can enter through an unfinished edge, joint, fastener hole, or plumbing opening.

Potential water paths include:

• Board-to-board seams
• Inside and outside corners
• Fastener heads
• Cut or damaged panel faces
• Pipe and shower-arm openings
• Valve and body-spray penetrations
• Shower-pan and wall transitions
• Tub-flange transitions
• Niches, benches, curbs, and shelves
• Changes between different materials
• Movement and control joints

The general sequence is straightforward:

1. Install correctly supported panels.
2. Complete the prescribed seams, corners, and transitions.
3. Seal fasteners and penetrations.
4. Inspect the waterproofing for continuity.
5. Allow the specified materials to cure or dry.
6. Install tile with the approved mortar.

The exact treatment varies by system. One product may require modified mortar and alkali-resistant mesh tape followed by fluid-applied waterproofing. Another may use proprietary membrane banding and preformed corners. A third may permit an approved sealant installed at a prescribed width and depth. PermaBASE, for example, documents a reinforced-mortar method followed by approved fluid waterproofing and an alternate approved-sealant method, each with its own fastening and coverage requirements. The PermaBASE installation guide shows why one joint method must be followed as a complete set of instructions.

Use only the seam materials named by the panel manufacturer. Generic drywall tape, drywall joint compound, or an unidentified mesh product should not replace specified alkali-resistant tape, tile mortar, membrane banding, waterproofing, or sealant.

Also keep four terms separate:

• Waterproofness concerns resistance to liquid-water passage under the applicable test or service conditions.
• Moisture resistance means a material can tolerate moisture; it does not necessarily stop water transmission.
• Vapor resistance concerns water-vapor diffusion and is measured differently from liquid-water performance.
• Mold resistance describes performance under a specified test; it does not prove that the assembly cannot leak or that mold cannot develop on adjacent materials.

A panel approved for an ordinary interior shower may not be approved for continuous-use steam exposure or suitable as the vapor-control layer in an exterior wall. Confirm the product’s stated vapor performance, intended exposure, and complete wall design rather than extrapolating from a general shower approval.

Tile and grout are finishes, not substitutes for the required waterproof layer. Cracks, joints, penetrations, and porous materials can allow moisture behind the finish. Complete and inspect the waterproof assembly before expecting the tile to protect it.

Where foam backer board may be used

Many foam tile backer products are promoted for interior shower walls, tub surrounds, backsplashes, countertops, and other tiled walls. Selected products also permit floors, ceilings, vanities, niches, benches, and shelves.

These are not category-wide approvals. A product labeled for shower walls is not automatically approved for shower floors, overhead tile, steam rooms, submerged installations, exterior walls, or every type of stone.

Natural stone can require stricter stiffness control than ceramic or porcelain tile. As one product-specific example, PermaBASE requires framing to limit deflection to L/360 generally and L/720 for stone. Its ceiling method requires framing no more than 16 inches on center, approved metal foam-board washers, and a maximum ceiling dead load of 7.5 pounds per square foot. Those figures apply to that documented assembly and must not be transferred to another board. See the current PermaBASE application requirements.

A niche or bench made from foam components still needs the support, slope, joint reinforcement, and waterproofing specified by the system. Waterproof material alone does not establish that a shelf can carry a person or that a bench can span between walls without additional support.

The same caution applies to accessories installed after tiling. Grab bars, glass enclosures, handrails, cabinets, and heavy fixtures need an attachment method expressly suitable for the expected load. If the published system does not resolve the load path, obtain written manufacturer guidance or consult a qualified design professional before covering the framing.

For steam rooms, look for an explicit statement covering the intended duty cycle. “Suitable for showers” is not equivalent to “approved for continuous-use steam rooms.” For exterior work, confirm climate restrictions, drainage and flashing integration, vapor behavior, freeze-thaw conditions, applicable code, and warranty coverage.

Foam backer board versus cement board

Foam and cement board should be compared as complete installation workflows, not as loose panels.

Handling and cutting

Foam panels are commonly lighter and can often be cut with a utility knife. That can simplify transportation, fitting around plumbing, and work on upper floors. Cementitious boards are substantially heavier in the cited dimension-matched comparison and may require different cutting methods and protective measures.

Schluter compares a typical 1/2-inch-thick, 3-by-5-foot foam panel at approximately 7.5 pounds with approximately 45 pounds for a similarly sized cement board. These are attributed example weights, not universal specifications for either category. Schluter provides the matched comparison and describes utility-knife cutting.

Moisture strategy

Many purpose-built foam panels have a waterproof core or waterproof facing. They still depend on completed seams, fasteners, corners, penetrations, and transitions.

Cement board is generally treated as moisture resistant rather than as a complete waterproofing layer. In a shower or another wet area, its workflow commonly includes reinforced seams plus a separate sheet membrane, liquid-applied membrane, or another approved waterproofing method.

Neither approach is automatically safer. A carefully installed cement-board-and-membrane assembly can perform well, as can a correctly detailed foam system. Either can fail where framing moves, waterproofing is discontinuous, or incompatible products are combined.

Rigidity and damage tolerance

Cement board is often selected for its familiar rigidity and feel. Foam board’s practical advantages are lower weight, easier cutting, and the possibility of combining substrate and waterproofing functions.

Avoid universal claims that one is stronger or more durable. Performance depends on panel thickness, facing, support, fasteners, tile, load, application, and the completed assembly. Foam facers can be crushed or damaged by improper fastening, while cement board can crack or break at edges if mishandled.

If a foam panel’s face is gouged, crushed, or torn, do not invent a repair. Stop and follow the exact manufacturer’s documented repair or replacement instructions.

Installation steps

A typical foam workflow may include:

1. Install the panels.
2. Treat seams, corners, and transitions.
3. Seal fasteners and penetrations.
4. Allow required materials to cure.
5. Set tile.

A typical cement-board wet-area workflow may include:

1. Install the board.
2. Reinforce the seams.
3. Apply a separate sheet or liquid waterproofing layer.
4. Complete penetrations and transitions.
5. Allow required materials to cure.
6. Set tile.

The foam route may consolidate steps, but it often depends on compatible screws, washers, sealants, bands, corners, collars, or gaskets. The cement-board route may use more waterproofing material while offering greater local familiarity or a lower panel price.

Installed-cost comparison

Do not compare panel prices alone. Foam panels and proprietary accessories may cost more at the material counter, while lower weight, easier cutting, and fewer waterproofing operations may reduce handling or labor. The supplied evidence does not establish universal installed-cost savings.

Price both systems using the same scope:

• Panels, including waste
• Delivery or pickup
• Approved corrosion-resistant fasteners
• Required washers
• Mesh tape or membrane banding
• Preformed corners and pipe seals
• Approved sealant
• Mortar beneath panels, where required
• Tile-setting mortar
• Separate liquid or sheet waterproofing
• Rollers, trowels, knives, saw blades, and mixing tools
• Repair or replacement materials
• Curing and inspection time
• Installer labor

The better value is the complete assembly you can source and install correctly—not necessarily the panel with the lowest shelf price.

Specifications to verify before buying

Before purchasing foam backer board, obtain the current technical data sheet, installation guide, approved-accessory list, and warranty for the exact product. A retailer’s summary can help with availability, but it should not control installation when it conflicts with manufacturer documentation.

Use this buyer’s checklist:

• Panel thickness: Is it approved for the selected wall, floor, counter, or ceiling?
• Dimensions: Will the sheet size suit the framing layout, openings, and transportation plan?
• Panel weight: Is the figure for the exact thickness and sheet dimensions?
• Core and facing: XPS, polyisocyanurate, coated mesh, membrane, fleece, or another construction?
• Approved substrates: Studs, plywood, OSB, concrete, masonry, drywall, or existing tile?
• Permitted applications: Wet walls, floors, counters, ceilings, steam rooms, or exterior work?
• Framing or joist spacing: What maximum spacing is allowed?
• Deflection: What criterion applies to the tile and assembly?
• Fastener type: What material, head style, length, and corrosion resistance are required?
• Fastener spacing: What patterns apply in the field, at edges, and under alternate joint methods?
• Washers: Are they required, optional, application-specific, or prohibited?
• Mortar: Which standard, type, and compatibility requirements apply?
• Joint treatment: Mesh and mortar, membrane band, sealant, or fluid waterproofing?
• Accessories: Which corners, collars, drains, curbs, and transition materials are approved?
• Movement joints: Where are they required, and who is responsible for their design?
• Tile restrictions: Are there tile-size, natural-stone, or weight limits?
• Load restrictions: What limits apply to ceilings, benches, shelves, fixtures, and point loads?
• Warranty: What applications, accessories, exclusions, and documentation requirements apply?
• Availability: Can every required accessory be obtained before installation starts?

Washer rules illustrate why category-wide answers are unsafe. A retailer listing for a 1/2-inch-by-48-inch-by-5-foot PermaBASE panel says washers are not required, while the manufacturer’s application instructions require approved metal foam-board washers for ceilings. The current manufacturer guide for the exact application controls.

Retail price and availability must be dated and tied to a seller. On August 23, 2026, a Master Wholesale listing showed a 1/2-inch-by-48-inch-by-5-foot PermaBASE panel at $36.40, weighing 8 pounds, with store-pickup-only shipping. Those details are a dated retail snapshot, not a national price or permanent specification. The retailer listing provides the dimensions, price, weight, pickup terms, and washer claim.

A National Gypsum editorial article reports a PermaBASE sheet weight of 6 pounds, but the surrounding comparison does not establish dimensions matching the retailer’s panel. National Gypsum’s article provides the 6-pound statement without a dimension-matched comparison in the cited passage.

Do not average the 6-pound and 8-pound figures or assume they describe the same panel. Verify the weight on a current technical sheet for the exact thickness and dimensions being purchased.

PermaBASE’s manufacturer describes a 10-year limited warranty for residential interior applications. That is an attributed legal claim, not a promise that every installation will perform regardless of substrate, application, accessories, or workmanship; the current full warranty controls. Review the manufacturer’s product and warranty information before ordering.

For any warranty, ask:

• Is the project residential or commercial?
• Is the application interior, exterior, wet, steam, or submerged?
• Are specific accessories required?
• Must every installation-guide step be followed?
• Are registration, proof-of-purchase, or claim deadlines stated?
• How are workmanship and consequential damage addressed?

Do not mix brands merely to use whichever sealant, washer, band, or liquid membrane happens to be available. A substitution may be technically acceptable in some cases, but obtain written compatibility and warranty confirmation first.

Take-to-the-store specification worksheet

General wall-installation workflow

The following is planning guidance, not a substitute for the selected manufacturer’s current instructions. Product requirements override generic steps.

1. Inspect and correct the framing

Confirm that studs are stable, correctly spaced, plumb, and aligned. Check wall flatness across multiple studs rather than inspecting each stud in isolation. Correct bowed or misaligned framing before installing panels.

Plan support around niches, valve assemblies, panel edges where required, glass-enclosure attachment points, grab bars, shelves, and other mounted features. The backer board should not be treated as a substitute for the load-bearing attachment method required by those components.

2. Confirm panel thickness and approval

Verify that the selected thickness is approved for direct attachment to the framing and for the planned application. Do not assume that a thinner panel sold for build-outs, insulation, or laminated substrates can span wall studs.

Lay out seams so panel edges receive the support required by the manufacturer. Plan transitions to drywall and other finishes before cutting.

3. Measure and cut

Mark openings carefully and avoid unnecessary gaps around plumbing. Several purpose-built foam boards can be cut through with a utility knife, although the number of passes and required edge preparation vary.

Protect reinforced faces from gouges and crushing. If a panel is damaged, follow the manufacturer’s repair or replacement instructions; do not assume tile mortar alone restores waterproofness or strength.

4. Fasten without damaging the face

Use the approved fasteners and any required washers. Follow the product’s edge and field spacing, minimum edge distance, penetration depth, and framing requirements.

Drive fasteners as directed. A proud head can interfere with waterproofing or tile installation, while an overdriven fastener can damage the reinforced face. If the facing is crushed or penetrated improperly, stop and use the documented corrective method.

No universal spacing applies. As a named example, National Gypsum’s PermaBASE installation outline calls for corrosion-resistant cement-board screws at 8 inches on center; other products and alternate methods may use different patterns. The manufacturer-affiliated installation outline provides that product-specific spacing.

5. Treat every discontinuity

Complete the specified treatment at:

• Panel joints
• Inside and outside corners
• Fastener heads
• Plumbing penetrations
• Niches and benches
• Tub or shower-pan transitions
• Changes of substrate
• Movement joints

Use the specified combination of tape, mortar, sealant, banding, preformed corners, collars, or fluid waterproofing. Preserve required movement joints instead of bridging them rigidly with board or mortar.

6. Inspect and cure

Look for pinholes, missed fasteners, exposed heads, open seams, damaged facers, and incomplete coverage. Confirm that each required treatment extends onto adjoining surfaces as directed.

Observe all required curing or drying periods before setting tile. Then install tile with the specified mortar, following the board, waterproofing, mortar, and tile manufacturers’ instructions. If the instructions appear inconsistent, stop and request written clarification rather than improvising.

Floor, countertop, and ceiling requirements

Approval for a wall does not automatically include horizontal or overhead applications. Floors, counters, and ceilings place different demands on the board and its supports.

Floors

Before installing foam backer board on a floor, verify:

• Joist material, size, span, and spacing
• Subfloor material, grade, thickness, and condition
• Subfloor fastening
• Required stiffness or deflection
• Surface flatness
• Panel thickness
• Tile type and minimum size
• Natural-stone requirements
• Mortar and fastening method
• Perimeter and movement joints

Floor panels commonly need to be embedded in fresh specified thin-set mortar before fastening so the assembly does not contain unsupported voids. That mortar does not compensate for an inadequate subfloor, framing system, or deflection condition. Product-system installation guidance describes embedding approved floor panels in fresh thin-set mortar.

PermaBASE provides a product-specific example. Over joists spaced 16 inches on center, its guide permits 5/8-inch tongue-and-groove exterior-grade plywood or 3/4-inch tongue-and-groove exterior-grade OSB. At 19.2- or 24-inch joist spacing, it requires 3/4-inch tongue-and-groove exterior-grade plywood or OSB. The guide also calls for a mortar setting bed applied with a 1/4-inch square-notched trowel, staggered substrate joints, a 1/4-inch perimeter gap, and fasteners every 8 inches on center. Over joists spaced 24 inches on center, floor tile must be at least 12 by 12 inches. These are PermaBASE requirements, not generic foam-board rules.

Staggering joints means avoiding alignment between backer-board and underlying subfloor joints where the selected instructions require separation. Do not fill a designated perimeter or movement gap with rigid mortar unless the documented system expressly directs it.

Countertops

Verify the plywood or other base, cabinet support, overhang limits, mortar beneath the board, fastening pattern, edge construction, and waterproofing at sinks and faucets.

Pay close attention to:

• Sink cutouts and narrow strips of board
• Faucet and dispenser penetrations
• Front edges and outside corners
• Backsplash-to-counter transitions
• Unsupported overhangs
• Heavy appliances or stone
• Concentrated loads near cutouts

A foam panel may provide a tile-ready surface, but it does not establish the load capacity of the cabinet, deck, edge, or overhang.

Ceilings

Use foam backer board overhead only when the exact product expressly permits it. Verify framing, board orientation, fastener type and length, washer requirements, fastening pattern, allowable dead load, tile weight, and wet-area limitations.

Overhead work has serious consequences if support or fastening is inadequate. Conditions involving framing capacity, heavy tile, stone, concentrated loads, movement-joint design, or construction outside a published assembly should be reviewed by the manufacturer and an appropriately qualified design professional before installation.

Standards, certifications, and warranty language

Standards and certifications can help verify a product, but their scope must be read carefully. A compliance statement does not turn every foam panel into a universal tile substrate.

ANSI A118.10

PermaBASE’s manufacturer states that its foam tile backer passes ANSI A118.10 for waterproofness. The manufacturer also says the board uses a waterproof foam core and coated fiberglass facers while requiring joints and fastener heads to be treated to create a waterproof installation. The PermaBASE product page presents these attributed product claims.

That statement concerns a named product and applicable test conditions. It does not approve every foam board, substrate, tile type, or application. It also does not excuse incomplete seams and penetrations.

ANSI A118.18

Schluter describes ANSI A118.18 as applying to qualifying cementitious-coated extruded-polystyrene foam backer board used behind wall tile in tub and shower areas. Check the current standard itself for its exact definitions, tests, scope, and exclusions. Schluter provides the attributed description of ANSI A118.18.

Do not interpret “meets ANSI A118.18” as automatic approval for a floor, ceiling, steam room, exterior wall, natural stone, or heavy fixture. Application approval still comes from current product documentation and the relevant assembly method.

UL 2824 and GREENGUARD Gold

PermaBASE’s manufacturer claims mold resistance per UL 2824 and GREENGUARD Gold certification. These claims concern different characteristics and were not independently verified here through the underlying test record or certification directory.

Neither claim establishes all-purpose performance:

• A mold-resistance claim does not prove that the assembly cannot leak or that mold cannot grow on dust, framing, paper, or adjacent materials.
• An emissions certification does not establish waterproofness, structural capacity, tile-load capacity, or long-term durability.

Use each claim only for the characteristic it evaluates.

Warranty terms

A warranty’s headline duration does not reveal its complete coverage. Before relying on a warranty, verify the current written terms for:

• Interior or exterior use
• Residential or commercial work
• Approved substrates and applications
• Required accessories
• Installation-guide compliance
• Movement-joint requirements
• Workmanship treatment
• Proof of purchase
• Claim deadlines
• Product registration
• Available remedies and exclusions

Retain the exact technical literature and warranty version used for the installation.

Verification order

Before approving a system, check documents in this order:

1. Current technical data sheet for the exact panel
2. Current installation guide
3. Certification, test, or evaluation listing
4. Approved fastener and accessory list
5. Current warranty
6. Applicable ANSI or TCNA assembly method
7. Locally adopted building code and inspector requirements

If a retailer page conflicts with the current manufacturer guide, ask the manufacturer for written clarification. If structural capacity, exterior-wall condensation, overhead loads, or movement design remains unresolved, consult an appropriate licensed trade or design professional.

Mortar Desk publishes general building-material reference information. It is not a contractor and does not provide engineering advice; specifications change, and standards and codes vary by edition and locality. Read more about the site’s reference role.

Failure-prevention checklist before tile goes up

Once tile is installed, correcting the substrate or waterproofing becomes expensive. Conduct a deliberate go-or-no-go inspection while the entire board assembly remains visible.

Substrate and support

• [ ] Framing is stable, plumb, and sufficiently flat.
• [ ] Bowed or misaligned framing has been corrected.
• [ ] Framing or joist spacing matches the selected instructions.
• [ ] Panel edges and openings have required support.
• [ ] The attachment method for grab bars, doors, shelves, and fixtures is resolved.
• [ ] The subfloor material and thickness are approved.
• [ ] Floor or wall deflection meets the tile-system requirement.
• [ ] Natural-stone requirements have been checked separately.
• [ ] The exact application—wall, floor, counter, or ceiling—is approved.

Panel installation

• [ ] The correct panel thickness has been used.
• [ ] Required panel orientation has been followed.
• [ ] Floor panels are embedded in specified fresh mortar where required.
• [ ] No unsupported floor voids or rocking panels remain.
• [ ] Board joints are laid out and staggered as specified.
• [ ] Perimeter gaps and movement joints remain open where required.
• [ ] Damaged facers, crushed corners, and oversized cutouts have been handled by an approved method.

Fasteners

• [ ] Fasteners are the approved type, length, and corrosion resistance.
• [ ] Washers are installed everywhere the product requires them.
• [ ] Edge and field spacing match the selected method.
• [ ] Fasteners penetrate the required framing or substrate.
• [ ] Heads are set as directed—not proud and not overdriven.
• [ ] No fastener has crushed or torn through the reinforced face.
• [ ] An alternate seam method has not been paired with the wrong fastening pattern.

Waterproofing continuity

• [ ] Every board seam has the prescribed treatment.
• [ ] Inside corners are complete.
• [ ] Outside corners are reinforced and sealed as required.
• [ ] Every required fastener head is treated.
• [ ] Pipe penetrations are sealed.
• [ ] Valve and body-spray openings are sealed.
• [ ] Niches, benches, curbs, and shelves are fully detailed.
• [ ] Horizontal wet surfaces have the required drainage slope.
• [ ] Shower-pan or tub transitions are complete.
• [ ] Changes between different materials are treated.
• [ ] Movement joints remain functional.
• [ ] No pinholes, gaps, thin spots, or exposed reinforcement remain.

Do not rely on tile, grout, or finished-surface caulk to compensate for discontinuous waterproofing behind the tile. Do not substitute drywall compound, unspecified tape, unapproved sealant, or mixed-system accessories without written confirmation.

Materials and documentation

• [ ] Mortar is approved for the panel, waterproofing, and tile.
• [ ] Tape, banding, corners, sealant, and washers match the system.
• [ ] Product shelf-life requirements have been checked.
• [ ] Required drying and curing periods have elapsed.
• [ ] The installation-guide revision has been retained.
• [ ] Warranty conditions have been reviewed.
• [ ] A final continuity inspection has been completed before tile setting.

Compact printable go-or-no-go check

Print or copy this condensed version for the final pre-tile inspection:

• [ ] Exact panel and application approved
• [ ] Framing or subfloor adequate and flat
• [ ] Deflection and load questions resolved
• [ ] Correct thickness and orientation installed
• [ ] Correct fasteners, washers, and spacing used
• [ ] No damaged faces or unsupported voids
• [ ] All seams and corners complete
• [ ] All fastener heads treated as required
• [ ] Pipes, valves, niches, and transitions sealed
• [ ] Movement joints preserved
• [ ] Compatible mortar and accessories confirmed
• [ ] Required curing or drying complete
• [ ] Final waterproofing continuity inspection passed
• [ ] Current instructions and warranty retained

Go only when the substrate is adequate, the application is documented, every component is compatible, fastening is correct, and the waterproofing is continuous.

No-go if any framing, deflection, concentrated-load, movement-joint, stone, steam-room, exterior-wall vapor, or ceiling condition remains unresolved. Escalate the question to the manufacturer, local inspector, appropriate licensed trade, or qualified design professional before covering the work.

Frequently asked questions

Is foam backer board waterproof without an additional membrane?

Some purpose-built foam panels are themselves waterproof and may not require a field-applied membrane over the full intact face. That does not mean the unfinished installation is waterproof.

Seams, corners, fastener heads, plumbing penetrations, niches, benches, and tub or pan transitions still require the manufacturer’s approved treatment. Depending on the system, that treatment may be membrane banding, sealant, reinforced mortar followed by liquid waterproofing, or another documented method.

Other foam products may require broader waterproofing coverage. Check the exact guide rather than assuming every foam board follows the same method.

Can tile be installed directly over foam backer board?

Yes, when the panel is purpose-built as a tile substrate, approved for the application, properly supported and fastened, and fully detailed as required. Tile is then set on the prepared face with the specified mortar.

“Directly” does not mean tile can be installed before seams, fasteners, corners, penetrations, and wet-area transitions are completed. Required waterproofing and curing come first. Generic rigid insulation is not an acceptable substitute for a documented tile backer board.

Do all foam backer boards require screws and washers?

No. Attachment varies by product, substrate, and application. Some systems use screws with wide-head washers. Others permit approved screws, roofing nails, mortar bonding, or a combination. A product may require washers on ceilings even if a standard wall method does not.

Follow the current manufacturer guide for the exact panel and application. Do not transfer a fastener schedule or washer rule from another brand—or from another application of the same board.

Can foam backer board be used on a floor or ceiling?

Selected products can, but wall approval alone is not enough.

For floors, verify joist spacing, subfloor material and thickness, deflection, mortar beneath the board, fastening pattern, tile-size limits, and perimeter details. For ceilings, verify explicit approval, framing, washers, fasteners, dead-load limits, and tile weight.

If the documentation does not clearly list the intended horizontal or overhead application, treat it as unapproved until the manufacturer confirms otherwise in writing.

Is foam backer board better than cement board for a shower?

Neither material is universally better. Foam commonly offers lower weight, utility-knife cutting, and the possibility of combining the tile substrate with part of the waterproofing system. Cement board may have a lower panel price, a familiar rigid feel, and broad installer familiarity, but it commonly needs a separate waterproofing strategy in wet areas.

Compare complete systems: framing preparation, panels, fasteners, washers, seam materials, waterproofing, mortar, accessories, labor, availability, and warranty. The better shower substrate is the approved assembly that fits the application and can be installed with continuous waterproofing—not simply the lighter or cheaper panel.

The bottom line

Choose foam backer board by its approved assembly, not by the word waterproof printed on the panel. Verify the exact substrate, application, thickness, support, fasteners, washers, joint method, penetrations, movement details, setting materials, standards claims, and warranty before ordering.

Foam can provide a substantial handling advantage. Whether the finished tile assembly is suitable, however, depends on flat framing, adequate structure, compatible components, correct fastening, and continuous waterproof detailing.
