How Small Roof Details Keep Water Out of the Building

Roof coverings are designed to shed water across broad, uninterrupted surfaces. The harder work begins where that surface stops, changes direction, meets a wall, or is pierced by a chimney, skylight, or vent. At those interruptions, roof flashing carries the drainage path forward.

The importance of proper roof flashing lies in continuity. Each component must collect runoff from above, carry it across a vulnerable joint, and release it onto another water-shedding surface or into the gutter. Material quality matters, but durable performance also depends on shape, position, overlap, fastening, compatibility, and the ability to accommodate movement.

Roof flashing is a drainage system, not just a metal patch

Roof flashing is formed, weather-resistant material installed to redirect runoff at interruptions in the roof surface. It protects details that shingles, tiles, and roof panels cannot reliably manage by themselves.

A broad field of shingles works through repetition: each upper course overlaps the course below, allowing gravity to carry rain toward the eave. At a chimney, wall, valley, vent, skylight, dormer, or edge, however, that normal pattern changes. Water may become concentrated, strike a vertical surface, encounter a joint, or divide around a penetration.

Flashing preserves the drainage path through the interruption. An upper component should generally shed water onto or over a lower component. The lower component then returns runoff to the roof surface or directs it into a gutter. At a roof-to-wall intersection, for example, flashing catches water at the wall and releases it over the roof covering instead of allowing it behind the siding or beneath the shingles.

That is different from merely filling a gap. Caulk can close a visible opening, but it does not necessarily establish a dependable route for runoff. A durable assembly depends primarily on geometry and gravity:

• Flashing is shaped for the location.
• It extends onto the surfaces that require protection.
• Upper layers overlap lower layers.
• Runoff is not trapped by an upturned edge or reverse lap.
• Fasteners do not create unnecessary openings in high-flow areas.
• The final discharge point remains open.

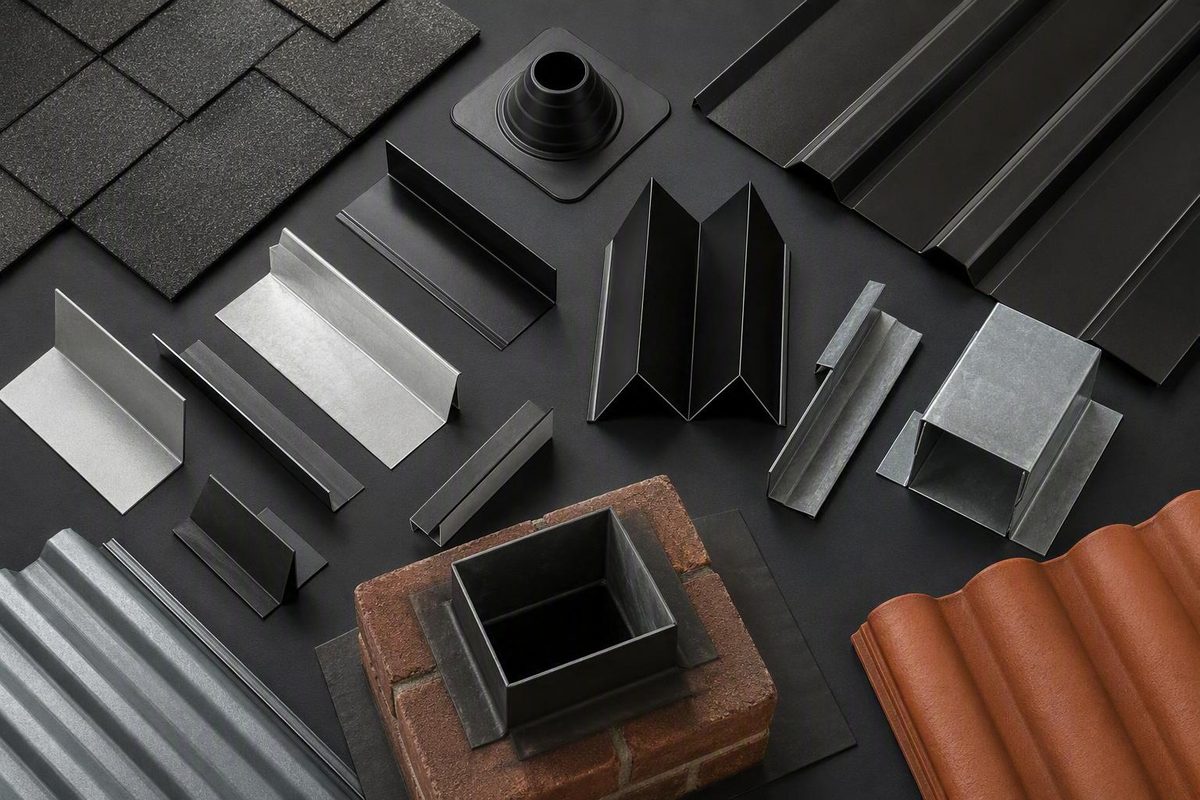

Flashing is commonly made from galvanized steel, aluminum, or copper. Some penetrations use mixed assemblies, such as a metal or molded flange with a flexible collar around a pipe. These collars are often called boots.

Flashing is therefore better understood as a group of location-specific drainage components than as a single product. Step flashing beside a wall, valley flashing between roof planes, and a pipe boot around a vent serve the same broad purpose, but they are not interchangeable. The correct detail varies with the penetration, roof covering, wall covering, and geometry involved, as described in InterNACHI’s roof-penetration inspection guidance.

Editorial note: This article explains general water-management principles. It does not provide project-specific dimensions, metal gauges, fastening schedules, or installation instructions. Verify those details for the particular roof assembly, product, and jurisdiction.

Why proper flashing matters beyond the first visible leak

A flashing defect can create a path beneath the roof covering. Once water crosses that outer drainage layer, it may reach underlayment, roof decking, attic insulation, framing, wall sheathing, siding, fascia, masonry, or interior finishes.

Not every defect produces immediate or extensive damage. Recurring moisture exposure can nevertheless contribute to:

• Darkened, stained, swollen, or softened wood-based decking
• Damp or compressed insulation
• Staining on rafters, trusses, drywall, or plaster
• Peeling paint and damaged interior finishes
• Deterioration of wood framing or trim
• Damp conditions that support mold growth
• Damaged siding or wall sheathing below a roof-to-wall junction
• Peeling fascia finishes or decay where edge runoff is misdirected

These warning signs and possible effects are consistent with contractor guidance on moisture entry around roof transitions and penetrations, including Blue Moon Roofing’s flashing overview.

Kickout and edge details show why flashing protects more than the roof itself. If runoff at the bottom of a sidewall misses the gutter, it can flow behind siding or repeatedly wet the wall below. At the eave, water that curls behind an inadequate edge detail can affect the fascia and edge of the deck instead of entering the gutter.

Damage may remain concealed because the entry point and visible symptom are not always aligned. Damp insulation, sheathing stains, musty odors, and interior discoloration may indicate concealed moisture, but none is unique to flashing. A contractor’s overview of chimney, skylight, and vent problems illustrates how water around these features can enter concealed parts of the assembly before appearing indoors.

A ceiling stain is therefore evidence of moisture exposure—not proof that flashing is currently leaking. It may represent an old, repaired leak. It may also result from damaged roofing, condensation, plumbing, ice-related backup, or another source. Even when flashing is involved, the stain may be some distance from the point where water first entered.

The practical response is investigation rather than assumption. Record when the symptom appears, document safely accessible evidence, and trace the likely water path. Repainting a stain or adding surface caulk without establishing the source can conceal evidence while leaving the underlying defect unchanged.

Match each roof detail to the flashing system designed for it

There is no universal piece of flashing for every roof interruption. Each location changes the direction, volume, or behavior of runoff differently.

Step flashing consists of separate pieces interwoven with successive shingle courses where a sloped roof meets a vertical wall. Each piece handles runoff associated with one part of the shingle pattern. A single surface strip does not reproduce the same repeated drainage sequence.

Counter-flashing overlaps the upper edge of base or step flashing. It is especially important where roofing meets brick, stone, or another masonry surface. Roof-side flashing and wall-side counter-flashing may be arranged so they can respond separately to movement rather than being locked together as one rigid piece.

Base or apron flashing protects the downhill face of a chimney or similar projection. Water striking the vertical surface is directed outward and over the roof covering below. Around a chimney, apron, step, and counter-flashing commonly operate as a coordinated assembly.

Valley flashing manages the concentrated runoff created where two roof planes meet. Because a valley carries water from both slopes, debris, punctures, obstructive fasteners, and distorted metal can interfere with a high-flow drainage path.

Drip edge is intended to move water away from the roof deck and fascia. Its relationship with underlayment, roof covering, and gutter matters; edge metal is ineffective if runoff is still directed behind the gutter or against vulnerable wood.

Kickout flashing demonstrates how a small component can control a much larger water path. At the bottom of a roof-to-wall junction, it turns runoff away from the wall and into the gutter. Without that outward diversion, water may continue behind siding or repeatedly wash the wall below.

Vent-pipe flashing commonly combines a flange integrated with the roof covering and a collar or flexible boot around the pipe. The flange must work with the roof’s uphill and downhill layers, while the collar maintains contact around the penetration. A cracked collar can leak even when nearby shingles appear intact.

Skylight flashing may use sill, side, head, and corner components supplied or specified for the unit. There is no single configuration suitable for every skylight, curb, pitch, or roof covering. The manufacturer’s approved kit and instructions should be considered when selecting the detail.

These distinctions are more than terminology. A roofing manufacturer’s explanation of flashing types shows how step, counter, base, kickout, valley, and penetration components use different arrangements to maintain downhill drainage. The exact detail still depends on the roof covering, wall covering, geometry, exposure, and applicable instructions.

Correct overlap and movement matter more than a bead of caulk

The central layering rule is simple: lower components generally go in first, and upper components overlap them. Water moving downhill should pass from one exposed surface to the next without meeting an open reverse lap.

Think of the assembly as a series of shingles, even when the components are metal. If an upper flashing edge is tucked beneath the wrong lower layer, runoff can be directed into the roof instead of away from it. If a lap forms a ridge across a valley or channel, it can obstruct flow and collect water or debris.

Overlap is only part of the issue. A detail rigidly fixed across materials that move differently may pull apart, distort, or transfer stress to a sealant joint.

Step flashing demonstrates why attachment and component independence can matter. Individual pieces maintain a layered drainage sequence rather than relying on one long strip or continuous bead. Depending on the specified system, attachment may also avoid locking the roof and wall together. That principle does not establish a universal fastener location or pattern; those details depend on the assembly.

Frequent workmanship problems include:

• Omitted step-flashing pieces or corner transitions
• Upper pieces placed beneath lower pieces
• Overlaps that are inadequate for the specified system
• Fasteners in exposed or high-flow portions of the flashing
• Unnecessary penetrations through the metal
• Loose, backed-out, corroded, or incompatible fasteners
• Bent, buckled, or lifted flashing
• Failure to integrate flashing with shingles, panels, underlayment, siding, or masonry
• Open ends that discharge behind cladding
• Valley seams or patches that obstruct runoff
• Pipe flanges placed entirely on top of the roof covering without correct uphill integration

Sealant still has legitimate uses. A manufacturer or established detail may call for it at a termination, corner, fastener, penetration, reglet, or joint. Renewing sealant can also be valid maintenance within an otherwise sound assembly.

The problem is dependence, not presence. Caulk, mastic, or roofing cement cannot recreate omitted step flashing, replace a corroded apron, correct a reverse lap, or form a missing kickout. A surface patch may slow entry temporarily without restoring the intended drainage geometry.

Exposed sealant-dependent joints require attention because sealant can dry, shrink, crack, or lose adhesion. InterNACHI’s inspection material identifies this maintenance concern in counter-flashing arrangements that depend on exposed sealant rather than mechanically protected integration.

When evaluating a repair, ask where the water will go after the work is complete. If the answer is only “the gap will be filled,” the proposal may not address the complete water path.

Materials must suit the roof, adjacent surfaces, and exposure

Galvanized steel, aluminum, and copper are commonly used flashing metals. None is universally best. Selection should consider the complete assembly rather than the flashing sheet in isolation.

Relevant factors include:

• Roof-covering type and manufacturer requirements
• Shape and complexity of the detail
• Required formability
• Corrosion exposure
• Appearance and finish
• Expected thermal movement
• Contact with masonry, treated wood, or other metals
• Fastener and sealant compatibility
• Local code requirements
• Availability of matching prefabricated components

Galvanized steel uses a protective zinc coating. Aluminum is lightweight and readily formed. Copper has a distinctive appearance and different corrosion behavior. These broad characteristics do not establish that one material will perform better in every roof, climate, or detail.

Dissimilar metals and adjacent materials

When certain dissimilar metals are in electrical contact in the presence of moisture, galvanic corrosion can accelerate deterioration of one of them. The risk depends on the metals, exposure, drainage, coatings, and method of isolation. Flashing, fasteners, gutters, panels, and accessories should therefore be evaluated together.

Fasteners should be corrosion-resistant and compatible with the flashing they secure.

Aluminum may require separation or protective treatment where it contacts mortar, concrete, pressure-treated wood, or another incompatible material. Copper should be isolated from incompatible metals such as aluminum and galvanized steel. A guide to flashing-material compatibility discusses these contact concerns, although its cost and service-life estimates should not be treated as universal benchmarks.

Metal-roof flashing deserves particular attention. Flashing should be compatible with the panels, coatings, fasteners, clips, and sealants because both corrosion behavior and thermal movement matter. Matching appearance alone does not demonstrate compatibility.

Climate and exposure considerations

Climate callouts are selection considerations, not universal specifications:

• Coastal salt exposure: Evaluate the metal, coating, cut edges, fasteners, and maintenance needs for accelerated corrosion.
• Freeze-thaw conditions: Pay close attention to trapped water, open masonry joints, brittle sealants, and details exposed to ice movement.
• Intense ultraviolet exposure: Inspect exposed flexible pipe boots and sealants for hardening, cracking, or loss of adhesion.
• Ice and snow: Verify the required relationship among flashing, underlayment, ice barriers, roof covering, and drainage details.
• Heavy runoff: Give special attention to valleys, broad roof areas discharging toward walls, kickouts, gutters, and overflow routes.
• Wind-driven rain: Evaluate whether laps, upstands, corners, and wall integration resist water arriving from directions other than straight downhill.

These conditions may influence material and detail selection, but they do not establish a universal gauge, dimension, or replacement interval. Verify which product instructions, roof-system requirements, code provisions, and local amendments apply to the project.

Recognize warning signs without guessing the leak source

Warning signs are reasons to inspect more closely. They are not automatic proof that flashing is the active source.

A roof can leak at a transition or penetration while the main shingle field still appears sound. Penetrations interrupt the normal overlap pattern, and their flanges, collars, joints, and fasteners may age or move differently from the surrounding covering. Conversely, intact-looking flashing does not rule out a concealed reverse lap or failed connection beneath shingles or siding.

Other causes can produce similar symptoms:

• Damaged or displaced roof covering
• Failed or incorrectly integrated underlayment
• Plumbing leakage
• Indoor condensation
• Ice-related backup
• Deteriorated chimney masonry
• Skylight glazing or frame defects
• Blocked valleys, gutters, or downspouts
• Flashing corrosion, separation, or incorrect layering

Documenting conditions can make diagnosis more efficient. Note whether water appears during prolonged rain, short intense storms, wind-driven rain, snowmelt, or freeze-thaw weather. Photograph accessible stains, damp insulation, exterior discoloration, and visible metal defects. Include dates and note whether a mark changes over time. Timing can narrow the investigation, but it does not confirm the source by itself.

If active leakage or visibly deteriorated materials make an area unsafe to approach, stop the inspection and seek qualified assistance rather than disturbing the assembly.

Inspect safely and keep drainage paths clear

A useful homeowner inspection does not require walking the roof. Begin at ground level and inspect interior areas only when access is straightforward and safe.

Ground-level checklist

Use binoculars or a camera with optical zoom where helpful. Look for:

• Displaced, bent, or visibly missing metal
• Rust staining, corrosion, or holes
• Lifted roof edges
• Cracked, tilted, or separated vent boots
• Debris-filled valleys
• Open joints around chimneys
• Loose-looking counter-flashing
• Staining or damaged siding below roof-to-wall intersections
• Water marks on fascia
• A kickout that misses the gutter
• Gutters pulling away from the edge
• Overflow marks or blocked downspouts

Some flashing is intentionally concealed beneath shingles, panels, siding, or masonry interfaces. Its absence cannot always be confirmed from the ground, and visible surface condition does not reveal every lap.

Accessible-attic checklist

Where the attic is readily accessible, look toward areas below:

• Chimneys
• Vent pipes and roof vents
• Skylights
• Valleys
• Dormers
• Exterior walls
• Roof-to-wall intersections

Compare observations after different weather events if the area can be revisited safely.

Drainage maintenance

Keep gutters, downspouts, valley exits, and kickout discharge points free of obvious blockage. Backed-up water does not prove a flashing defect, but poor drainage can complicate edge and wall water management. Debris can also retain moisture against metal, block an outlet, or divert runoff sideways.

Check after significant weather, when a symptom first appears, or when a vulnerable component becomes visible. There is no universal inspection interval for every roof. Age, slope, tree cover, exposure, roof material, previous repairs, and accessibility all affect how often observation is appropriate. Details that depend on exposed sealant or flexible collars may need closer periodic attention because those materials can deteriorate before the surrounding roof covering.

Do not walk on steep, wet, icy, fragile, moss-covered, or inaccessible roofs, and do not lift shingles or panels during a casual inspection. Besides the fall hazard, disturbing the covering can damage brittle material, break seals, or alter evidence needed to trace the leak. Professional assessment is appropriate for recurring leaks, extensive corrosion, skylights, chimney and masonry details, concealed assemblies, and repairs that require roofing or wall cladding to be disturbed. Roof-access guidance from Blue Moon Roofing likewise advises against walking steep or wet roofs.

Mortar Desk publishes general building-material reference information. It is not a contractor and does not provide engineering advice; its publication description and limitations explain that specifications change and codes vary locally.

Use condition—not a blanket rule—to decide on repair, reuse, or replacement

A flashing evaluation can lead to three reasonable outcomes:

1. Targeted repair: Suitable where a defect is isolated, surrounding materials remain serviceable, and the drainage arrangement can be reliably restored.
2. Reuse after evaluation: Possible where existing flashing is sound, correctly configured, compatible with the retained or new roof system, and accessible enough to verify and reintegrate.
3. Replacement or reconstruction: Appropriate where condition, geometry, compatibility, or access prevents dependable repair or reuse.

Stronger replacement indicators include widespread corrosion, holes, significant deformation, missing pieces, reverse laps, failed pipe boots, incompatible materials, and details that cannot be correctly integrated with the roof covering. Replacement may also be more practical when previous patches obscure the assembly or the surrounding roof must already be opened.

The scope can extend beyond flashing. Wet or deteriorated decking may need to be exposed and repaired before new flashing is installed. Siding may require removal to correct a kickout or step-flashing detail. Open masonry joints, deteriorated fascia, or affected framing can turn a localized metal repair into broader building-envelope work.

Sound-looking flashing is not automatically reusable. Evaluation should address:

• Hidden condition beneath roofing or cladding
• Existing overlap and drainage geometry
• Corrosion at folds, cut edges, and fasteners
• Compatibility with new roof materials
• Ability to accommodate movement
• Manufacturer requirements
• Roof-covering warranty conditions
• Applicable local code provisions
• Whether reroofing will damage the component

Reroofing creates no universal rule that every piece must be replaced. It also creates no presumption that every intact-looking component should remain. The decision should be detail-specific and documented.

What a professional estimate should identify

Ask for a scope that states:

• The flashing type and metal
• The proposed fastener material
• The intended overlap and downhill drainage path
• How flashing integrates with underlayment and roof covering
• How it integrates with siding, masonry, or the penetration
• Which decking, trim, siding, or masonry repairs are included
• How sealant-dependent joints will be formed and maintained
• Whether damaged material and roof debris will be removed
• Whether before-and-after photographs will be supplied
• What workmanship warranty applies
• What is excluded if concealed damage is discovered

Also ask which roof-covering manufacturer detail, adopted code provision, and local amendment apply to the proposed work. A statement that a method is “standard” is less useful than an identified drawing, instruction, or provision.

Dimensions, sheet thickness or gauge, fastening, ice-barrier integration, and chimney-cricket requirements vary with the assembly, geometry, jurisdiction, and adopted code edition. Verify those items rather than relying on a broad online rule.

Frequently asked questions

Can a roof leak because of flashing even when the shingles look fine?

Yes. The shingle field and the flashing around walls, vents, chimneys, and skylights are separate parts of the water-shedding system. A cracked pipe boot, missing downhill flange, open counter-flashing joint, or incorrect lap can admit water while nearby shingles remain visibly intact.

A stain near a penetration still does not prove that flashing is responsible. Water may have traveled from damaged roofing, condensation, plumbing, ice-related backup, or another source.

Is roofing cement, caulk, or tar a permanent fix for bad flashing?

Not when the underlying problem is missing, corroded, displaced, or incorrectly layered flashing. A surface patch cannot recreate a missing flange, step-flashing sequence, kickout, or counter-flashing overlap.

Sealant can be appropriate when specified as part of a sound detail, and renewing a deteriorated joint may be valid maintenance. The key question is whether the assembly already has working drainage geometry or depends entirely on exposed sealant to resist runoff.

What is the difference between step flashing and counter-flashing?

Step flashing consists of individual pieces layered with successive shingle courses where a sloped roof meets a wall. It returns water from the wall area to each lower roof course.

Counter-flashing is the upper component that overlaps step or base flashing, particularly at chimneys and masonry walls. It protects the upper termination of the roof-side flashing.

Should flashing always be replaced when a roof is replaced?

No blanket rule applies. Existing flashing may be reusable if it is sound, correctly shaped, compatible, properly integrated, and permitted by the applicable roof-system instructions and warranty conditions.

Rusted, punctured, bent, reverse-lapped, incompatible, or incomplete flashing is a stronger replacement candidate. The contractor should document the condition and explain why each significant detail will be repaired, reused, or replaced.

How often should roof flashing be inspected?

There is no universal interval for every building. Inspection needs vary with roof age, material, slope, tree cover, climate, prior leakage, corrosion exposure, and the number and complexity of penetrations.

Ground-level observations are sensible after significant weather and whenever stains, damp insulation, gutter overflow, or visible defects appear. Sealant-dependent joints and flexible pipe boots may warrant closer periodic attention. Where the roof is unsafe to access or the detail is concealed, use a qualified inspector or roofing professional rather than adopting a schedule that requires hazardous access.

Roof coverings manage broad surfaces; flashing carries runoff across the interruptions where water is more likely to get beneath them. Corrosion, separation, cracked boots, stains, and damp insulation justify investigation, not an automatic diagnosis.

Any proposed correction should be checked against the roof-covering manufacturer’s instructions, the locally adopted code edition, and the conditions found on the building. Where access is hazardous or the repair is technically complex, qualified assessment is the appropriate next step.
